Bulit-in Preamplifier / Charge Output Type
Tri-axial Accelerometers

Office

The tri-axis acceleration detector is an accelerometer that can output electric signals in proportion of vibration acceleration, which has been converted from mechanical vibrations, at the same time from XYZ three vibration directions. Various types of accelerometers are provided including built-in preamplifier type, charge output type, and TEDS compatible type.

Features

  • The seismo-type*1 sensor requires no reference point for measurement
  • Compact and light weight, easy to mount and easy handling
  • Wide dynamic range, micro acceleration measurement available
  • Mechanical strength is suitable for measurement of large acceleration or impact acceleration
  • High resonance frequency makes the measureable frequency range wider. Wide band frequency can be measured without waveform distortion
  • Selectable from various types according to the purpose or conditions of use
  • TEDS compatible sensors are available

*1:Vibration system where M is mass, K is the spring constant, and C is the viscosity resistance.




NP series Accelerometers

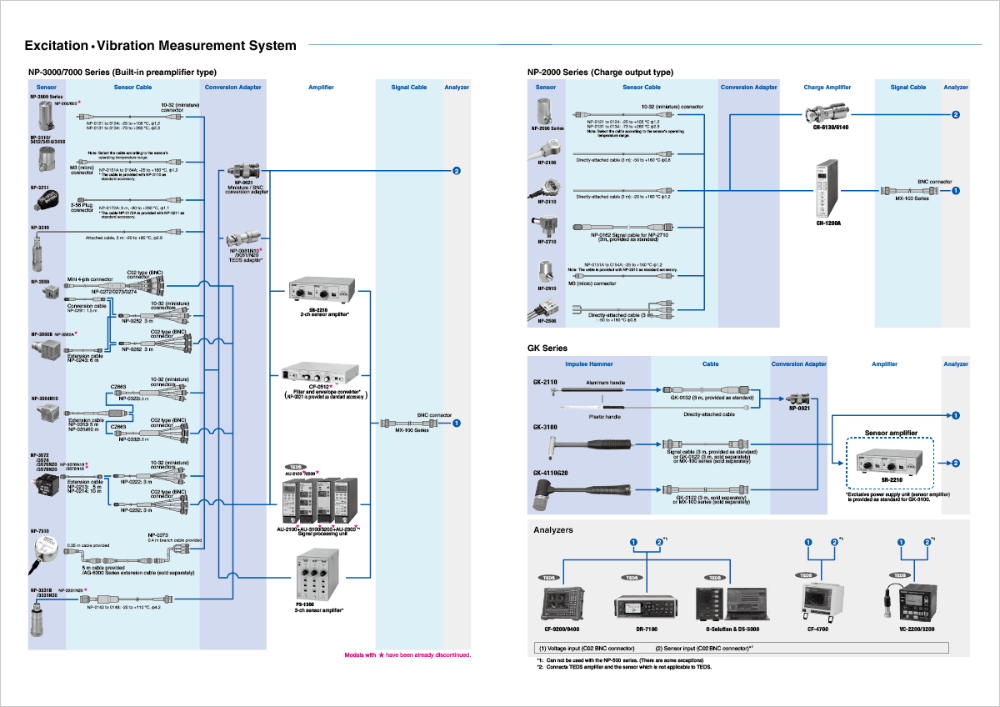

Connection diagram
Accelerometer and related products (Click here)

Adobe Reader(PDF 679KB)



Specifications

Tri-axial accelerometer
Charge output type Built-in preamplifier type
Features
 		 Ultra compact,
tri-axial		 Ultra compact,
tri-axial, CE *4		 Compact,
tri-axial 		General-purpose,
tri-axial		 TEDS*2compatible,
Compact,
tri-axial, CE *4		 TEDS*2compatible,
general-purpose,
tri-axial
Structure Shear type Shear type Shear type Shear type Shear type Shear type
Model
 		 NP-2506 NP-3550 NP-3560B NP-3572
NP-3574		 NP-3564N10 NP-3576N20
NP-3578N20
Outer Appearance
 		 NP-2506 NP-3550 NP-3560B NP-3572/3574 NP-3564N10 NP-3576N20/3578N20
Sensitivity*1 0.04 pC/(m/s2) ±20% 1.02 mV/(m/s2) ±20 % 1.02 mV/(m/s2) ±10 % 1.0 mV/(m/s2) ±10 %
(NP-3572)		 10 mV/(m/s2) ±10 % 1 mV/(m/s2) ±10 %
(NP-3576N20)
10 mV/(m/s2) ±10 %
(NP-3574)		 10 mV/(m/s2) ±10 %
(NP-3578N20)
Capacitance 580 pF ±20 %
with cable 		- - - - -
Resonant Frequency 60 kHz or higher 50 kHz or higher 55 kHz or higher 15 kHz or higher (X)
approx. 45 kHz (Y,Z)		 55 kHz or higher (Z) 16 kHz or higher (X)
approx.47 kHz (Y,Z)
Frequency range (Common to X, Y, Z)
fc to 1 kHz ±5 %
fc to 5 kHz ±10 %
fc to 20 kHz ±3 dB		 2 Hz to 5 kHz ±5 % (X)
2 Hz to 8 kHz ±5 % (Y,Z)		 2 Hz to 5 kHz ±5 % (X)
2 Hz to 10 kHz ±5 % (Y,Z)		 1 Hz to 5 kHz ±10 % (X,Y)
1 Hz to 8 kHz ±10 % (Z) 		2 Hz to 7 kHz ±5 % (X,Y)
2 Hz to 10 kHz ±5 % (Z)		 1 Hz to 5 kHz ±1 dB (X)
1 Hz to 8 kHz ±1 dB (Y,Z)
0.5 Hz to 10 kHz ±3 dB (X,Y)
0.5 Hz to 18 kHz ±3 dB (Z)		 0.8 Hz to 8 kHz ±3 dB (X)
0.8 Hz to 10 kHz ±3 dB (Y,Z)
Maximum allowable acceleration 25,000 m/s2 4,905 m/s2 4,900 m/s2 4,000 m/s2 (NP-3572)
400 m/s2 (NP-3574)
 450 m/s2 3,600 m/s2
(NP-3576N20)
360 m/s2
(NP-3578N20)
Maximum shock resistance (m/s2) 50,000 m/s2 49,050 m/s2 98,100 m/s2 30,000 m/s2 30,000 m/s2 30,000 m/s2
Operating Temperature range (°C) -50 to +160 °C -54 to +121 °C -54 to +121 °C -50 to +110 °C -50 to +110 °C
(at TEDS communication:
-40 to +85 °C)		 -40 to +85 °C
Output impedance - 200 Ω or less 200 Ω or less 1 k Ω or less
 500 Ω or less 400 Ω or less
(NP-3576N20)
1 kΩ or less
(NP-3578N20)
Sensor noise - approx.30 μVrms
approx.0.03 m/s2 rms		 approx.30 µVrms
approx.0.03 m/s2 rms		 40 µVrms or less
0.04 m/s2 rms
or less
(NP-3572)		 40 µVrms or less
0.004 m/s2 rms
or less		 40 µVrms or less
0.04 m/s2 rms
(NP-3576N20)
40 µVrms or less
0.004 m/s2 rms
or less
(NP-3574)		 40 µVrms or less
0.004 m/s2rms
(NP-3578N20)
Power requirement - 22 to 30 VDC
2 to 20 mA
Constant current drive		 18 to 30 VDC
2 to 20 mA
Constant current drive		 21 to 30 VDC
0.5 to 5 mA
Constant current drive		 21 to 30 VDC
2 to 5 mA
Constant current drive		 18 to 25 VDC
0.5 to 5 mA
Constant current drive
Weight (g) 1.2 g*3 1.0 g 5.3 g 8.1 g 4.4 g 11.1 g
Ground / Insulation Case ground Case ground Case ground Case ground Case ground Case ground
Case material Titanium Titanium Titanium Aluminum Titanium Titanium
Outer Dimensions (mm) 8(W)×7(D)×5.5(H) 6.35(W)×6.35(D)×6.35(H)
(excluding protruded section)		 10.2(W)×10.2(D)×10.2(H)
(excluding protruded section)		 14.2(W)×14.2(D)×14.2(H)
(excluding protruded section)		 10(W)×10(D)×10(H)
(excluding protruded section)		 14.2(W)×14.2(D)×14.2(H)
(excluding protruded section)
Connector Directly attached
cable x 3 pcs. (3 m),
cable diameter Φ 0.8 mm
Connector:10-32 coaxial plug
(miniature)		 8-36 mini connector
(4-pin)
side		 1/4-28 connector
(4-pin)
side		 DR-4S-4
side		 CZ710
side		 DR-4S-4
side
Cable - NP-0272/0273/0274
NP-0291		 NP-0252/0262 NP-0222/0232 NP-0332/0322 NP-0222/0232
Attachment Adhesive Adhesive Adhesive or 5-40 UNC
female screw		 Adhesive, mounting clip or
M5 female screw		 Adhesive, mounting clip or M3 female screw Adhesive, mounting clip or
M5 female screw
Accessorieis Instruction manual,
Calibration chart		 Wax,
Instruction manual,
Calibration chart		 5-40 UNC to M3
Conversion screw (2pcs.),
Wax,
Mounting base
(NP-0035)
Instruction manual,
Calibration chart		 M5X0.8 L=8 screw,
Wax,
Mounting clip
(NP-0061),
Instruction manual,
Calibration chart		 M3X0.5 L=4 screw,
Wax,
Mounting clip
(NP-0062),
Instruction manual,
Calibration chart		 M5X0.8 L=8 screw,
Wax,
Mounting clip
(NP-0061),
Instruction manual,
Calibration chart
Outline drawings
(mm)

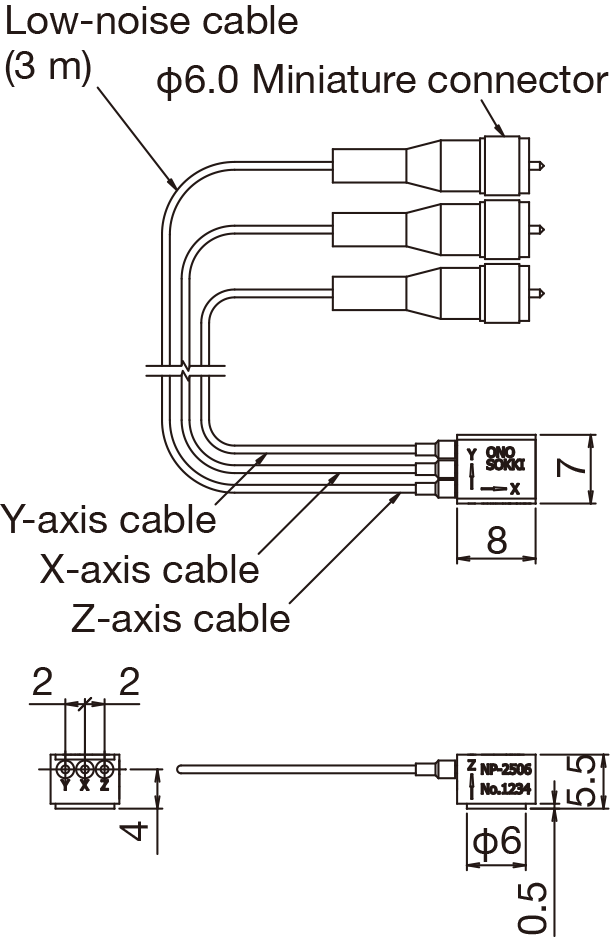

NP-2506

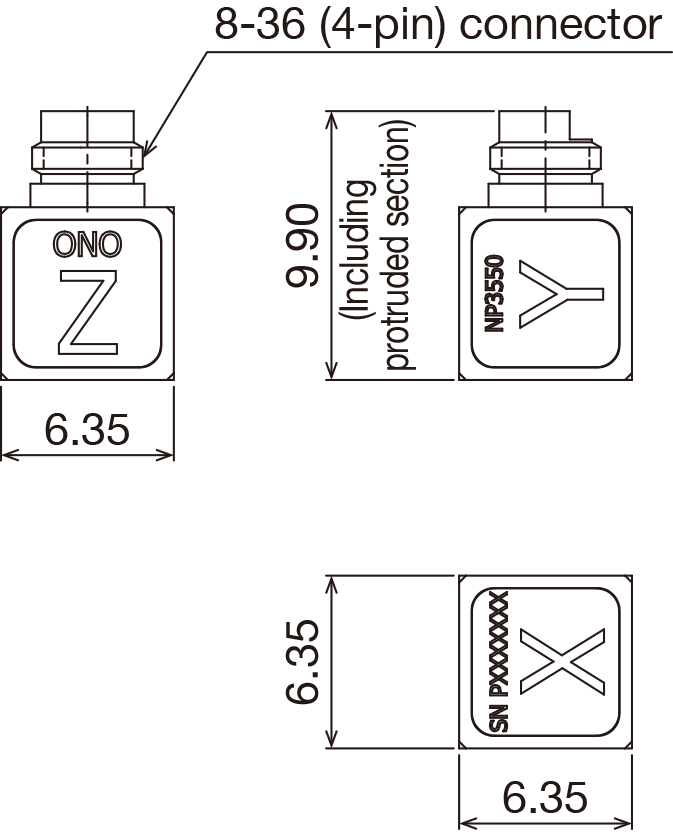

NP-3550

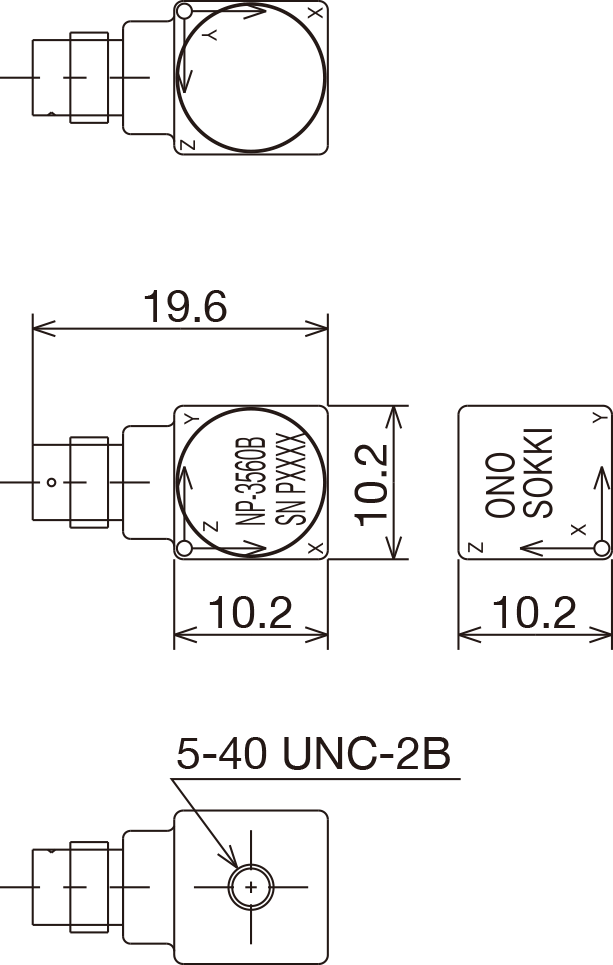

NP-3560B

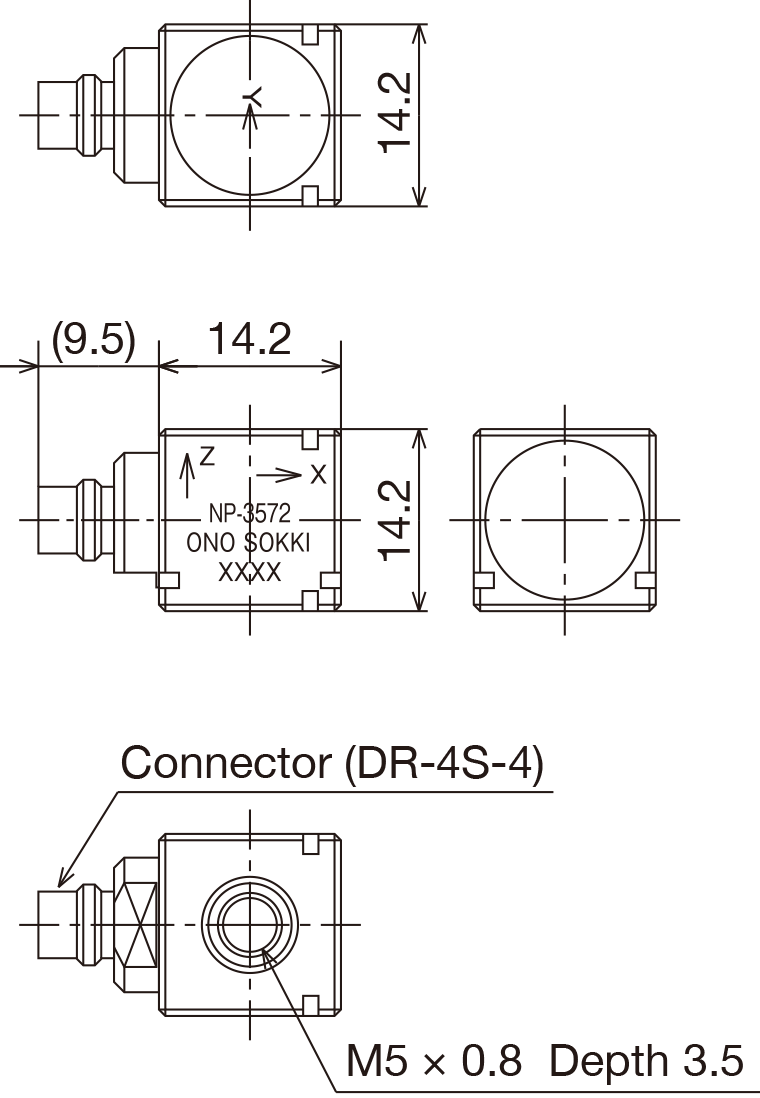

NP-3572

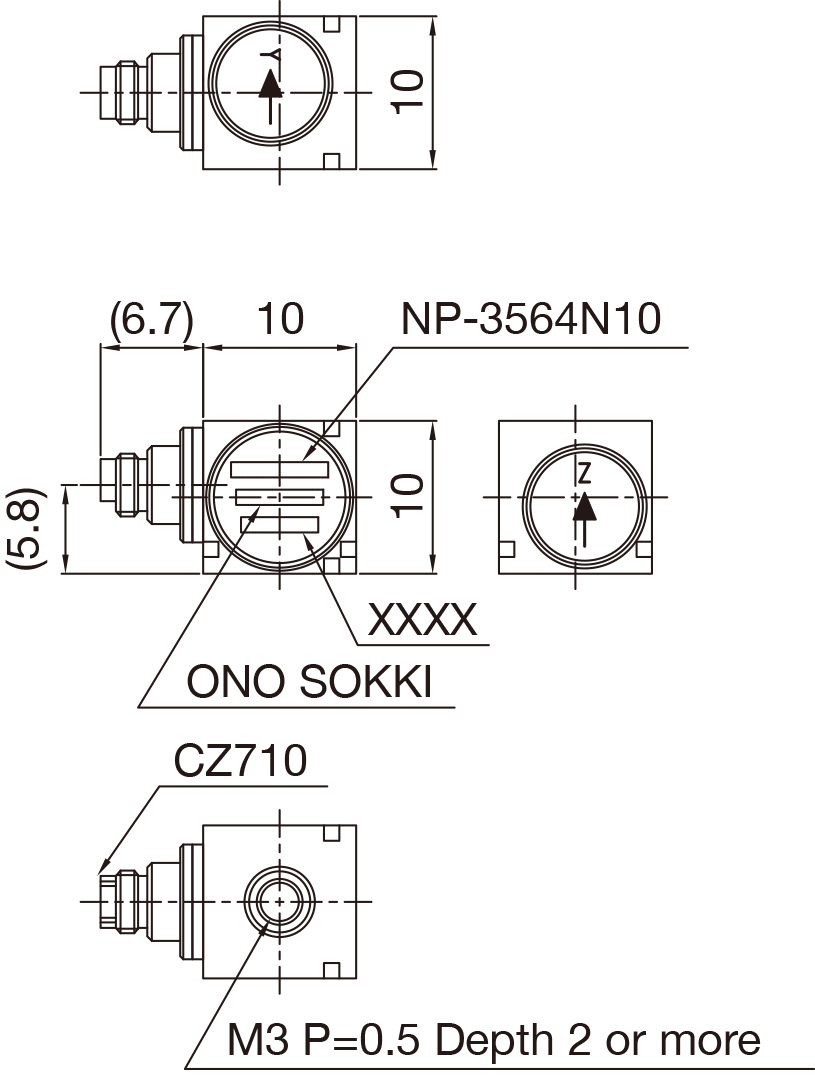

NP-3564N10

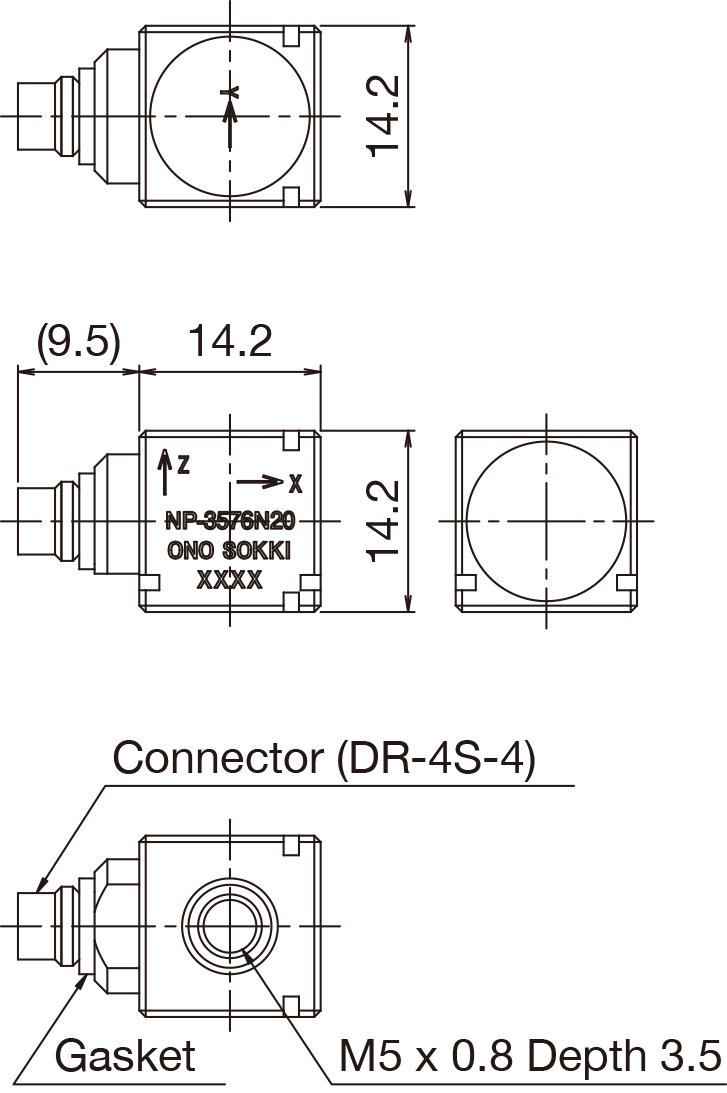

NP-3576N20

*1: The sensitivity such as±10% represents sensitivity variation for each sensors (individual difference), not measurement. By performing calibration according to each sensitivity value, any sensors can measure with the same accuracy under the same conditions

*2: Conforms to IEEE1451,4-2004 Template ver.1.0

*3: Not included a cable

*4: EMC Directive: EN 61326:2021 RoHS Directive: EN IEC 63000:2018.

* Noise of the NP-2000 series is equivalent to "conversion input noise level" of a charge amplifier used, such as CH-1200A charge amplifier.

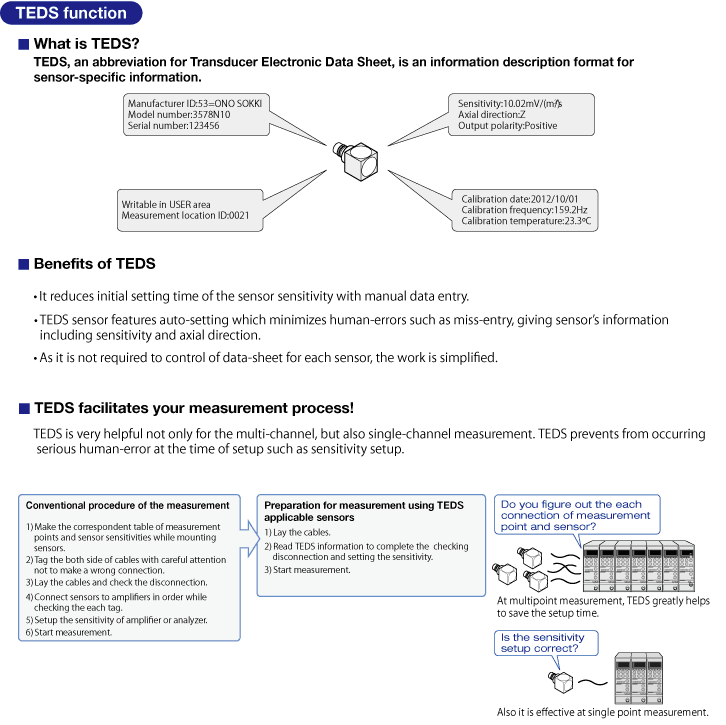

TEDS = Transducer Electronic Data Sheet
