The SR-2210 sensor amplifier accepts constant-current line drive sensors and connects the signal to analyzers and recorders that would not otherwise be compatible with constant-current sensors.
The units connects directly with BNC connectors to ONO's model MI-3111 microphone preamplifiers and NP-3000 series of accelerometers.
With compact, light-weight, battery operation, it can save for preparation of measurement.
Features
Rear side
Specification
| Input Section | Constant current power supply | 2.4 mA / applied voltage : approx. 18V | |
|---|---|---|---|
| Number of channels | 2 | ||
| Operating frequency range | 1 Hz to 20 kHz (±0.5 dB) , load impedance 100 kΩ or more | ||
| Input impedance | 1 MΩ ±0.5 % | ||
| Input cutoff frequency | Approx. 0.16 Hz | ||
| Input voltage range | 12.5 dBVrms or less (± 6V) | ||
| Gain | -10, 0, 10, 20, 30, 40, 50, 60 dB in 10-dB step, selectable, ± 0.2 dB | ||
| Frequency weighting | A/C/FLAT (conforming standards: IEC 651 Type 1, JIS C 1505-1988) | ||
| Output cutoff frequency | approx. 0.2 Hz (load
impedance : 100kΩ or more) approx. 0.4 Hz (load impedance : 50kΩ or more.) |
||
| Input-converted self noise | A | -105 dBVrms or less | |
| C | -100 dBVrms or less | ||
| FLAT | -95 dBVrms or less | ||
| Input / output connectors | BNC | ||
| Output Section | Output voltage | 12.6 dBVrms or less (±6V) | |
| Max. output cable length | 30 m | ||
| General | Power supply | Type AA battery x 4 External power supply: PB-7090* AC adaptor (option) |
|
| Battery life | Approx. 20 hours min. (with alkaline battery) | ||
| Operating temperature range | -10 to +50°C | ||
| Operating humidity range | 30 to 90 % RH (with no condensation) | ||
| Storage temperature range | -20 to +60°C | ||
| Storage humidity range | 10 to 90 % RH (with no condensation) | ||
| Outer dimensions | 140 (W) x 40 (H) x 125 (D) mm (not including protruded section) | ||
| Weigh | Approx. 550 g (with batteries) | ||
| Accessories | Instruction manual x 1 copy, battery (LR06) x 4 pcs | ||
* Operation is not warrantied when connected to the MI-1282M10.
Comparative table of SR-2210 ad SR-2200
| SR-2210 | SR-2200 | ||
|---|---|---|---|
| Polar character | inside | + | - |
| outside | - | + | |
| External power supply (AC adapter) | PB-7090 (option) | PB-703 (N etc), TA2081 (option) | |

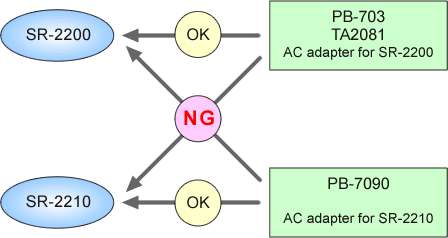

Important reminder when connecting the SR-2210/SR-2200 to the AC adpters
* Please use the appropriate AC adapter. Wrong connection might be cause of failure.
Connection cable (both terminals are BNC connector)
| Model name | Outer dimension | Length | Operating temperature range |
|---|---|---|---|
| MX-1001 | Signal cable for low/ high temperature |
1.5 m | -30 to +80 °C |
| MX-1005 | 5 m | ||
| MX-1020 | 20 m | ||
| MX-2001 |  |
1.5 m | 0 to +60 °C |
| MX-2005 | 5 m | ||
| MX-2020 | 20 m |
