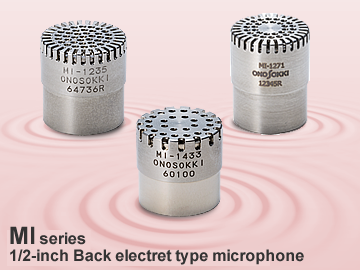

MI series1/2-inch measurement back electret-type microphone

Structure of the condenser-type microphone

Operating principle of the sound intensity probe

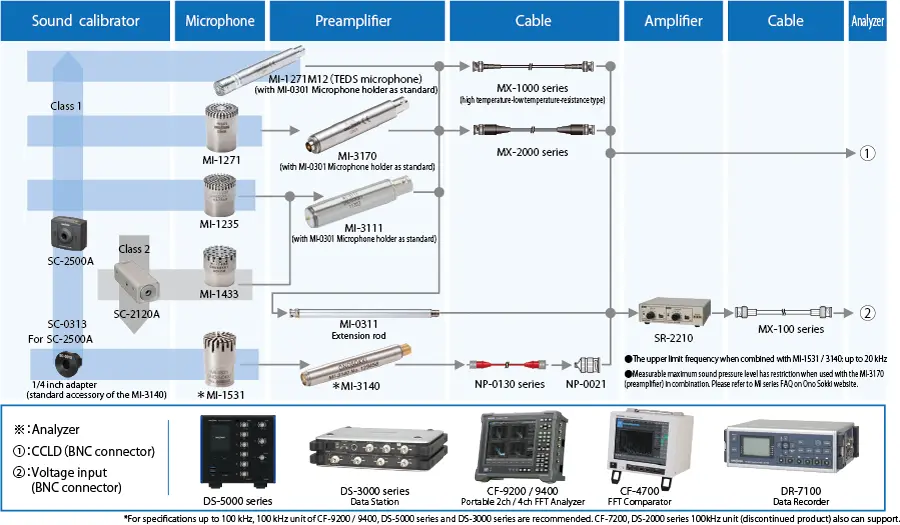

Signal cable and accessories for measurement microphones/preamplifiers

Applications



Microphones

1/2-inch Measurement microphone

MI-1271

1/2-inch Microphone

More dedails
MI-1235 1/2-inch Microphone More dedails

MI-1433 1/2-inch Microphone

More dedails

MI-1531
1/4-inch
Microphone

More dedails
MI-1235
MI-1235
MI-1433
MI-1211
Feature
·1/2-inch
·Corresponds to high sensitivity and low frequency
·Withstand a severe temperature environment
Feature
·1/2-inch
·Corresponds to audible range
·High cost performance
Feature

·1/2-inch

·Low-cost
·Effective for environmental measurement

Feature

·1/4-inch
·Wide frequency range measurement (up to 100 kHz)
·Ideal for space saving


Overview Specification
Response type
Free sound field
Polarization method
Back electrets type
Positive voltage
0 V
Sensitivity

-26 dB±1.5 dB re. 1 V/Pa

50 mV/Pa (1 kHz)
Capacitance (1 kHz)

12 pF

(representative value)

Frequency range

(1 kHz standard)

1 Hz to 20 kHz (±2 dB)







Effective load volume
359 mm3
Maximum sound pressure level (Total harmonic distortion 3%)

135 dB

(when using MI-3170)





Intrinsic noise level

(A-weighting)

14.0 dB

(representative value)

(when using MI-3170)

Static pressure characteristics

(at 250 Hz)

-0.013 dB/kPa (representative value)

Temperature characteristics

(at 250 Hz)

-0.005 dB/K (representative value)

Humidity characteristics

(at 250 Hz)

+0.0004 dB/% (representative value)

Operating temperature range

-30 to +80 ℃

Operating relative humidity range

0 to 90%

(with no condensation)

Storage temperature range

-40 to +70 ℃

Storage relative humidity range

0 to 90% (with no condensation)

Weight

Approx. 6 g

Outer dimension

φ13.2 mm×16.9 mm

Overview Specification
Response type
Free sound field
Polarization method
Back electrets type
Positive voltage
0 V
Sensitivity

-29±3 dB re. 1 V/Pa 36 mV/Pa (1 kHz)

Capacitance (1 kHz)

13 pF

(representative value)

Frequency range

(1 kHz standard)

10 Hz to 20 kHz
(+1.5 dB, -5 dB)
10 Hz to 10 kHz
(+1.5 dB, -2 dB)
Effective load volume
260 mm3
Maximum sound pressure level (Total harmonic distortion 3%)

135 dB

(when using MI-3111)
141 dB

(when using MI-3170)

Intrinsic noise level

(A-weighting)

19.0 dB

(representative value)
(when using MI-3111)

Static pressure characteristics

(at 250 Hz)

-0.03 dB/kPa or less



Temperature characteristics

(at 250 Hz)

+0.009 dB/K or less



Humidity characteristics

(at 250 Hz)

-0.001 dB/% or less



Operating temperature range

-10 to +50 ℃

Operating relative humidity range

20 to 90% (with no condensation)

Storage temperature range

-20 to +60 ℃

Storage relative humidity range

10 to 90% (with no condensation)

Weight

Approx. 6 g

Outer dimension

φ13.2 mm×13.7 mm

Overview Specification
Response type
Free sound field
Polarization method
Back electrets type
Positive voltage
0 V
Sensitivity

-29±3 dB re. 1 V/Pa 36 mV/Pa (1 kHz)

Capacitance (1 kHz)

13 pF

(representative value)

Frequency range

(1 kHz standard)

20 Hz to 8 kHz
(±2 dB)





Effective load volume
239 mm3
Maximum sound pressure level (Total harmonic distortion 3%)

135 dB

(when using MI-3111)
141 dB

(when using MI-3170)

Intrinsic noise level

(A-weighting)

19.0 dB

(representative value)
(when using MI-3111)

Static pressure characteristics

(at 250 Hz)

-0.03 dB/kPa or less



Temperature characteristics

(at 250 Hz)

+0.009 dB/K or less



Humidity characteristics

(at 250 Hz)

-0.001 dB/% or less



Operating temperature range

-10 to +50 ℃

Operating relative humidity range

20 to 90% (with no condensation)

Storage temperature range

-20 to +60 ℃

Storage relative humidity range

10 to 90% (with no condensation)

Weight

Approx. 6 g

Outer dimension

φ13.2 mm×13.5 mm

Overview Specification
Response type
Free sound field
Polarization method
Back electrets type
Positive voltage
0 V
Sensitivity

-48±3 dB re. 1 V/Pa
4 mV/Pa (250 Hz)

Capacitance (1 kHz)

7 pF

(representative value)

Frequency range

(1 kHz standard)

10 Hz to 100 kHz
(+2 dB, -4 dB)
10 Hz to 40 kHz
(±2 dB)

Effective load volume
54 mm³
Maximum sound pressure level (Total harmonic distortion 3%)

157 dB

(when using MI-3140)





Intrinsic noise level

(A-weighting)

30.0 dB (representative value)





Static pressure characteristics

(at 250 Hz)

-0.008 dB/kPa

(representative value)

Temperature characteristics

(at 250 Hz)

+0.01 dB/K (representative value)

Humidity characteristics (at 250 Hz)

-0.001 dB/%

(representative value)

Operating temperature range

-30 to +60 ℃

Operating relative humidity range

0 to 90% (with no condensation)

Storage temperature range

-30 to +80 ℃

Storage relative humidity range

0 to 90% (with no condensation)

Weight

Approx. 1.5 g

Outer dimension

φ6.9 mm×10.5 mm

Applicable preamplifier
MI-3170
Applicable preamplifier
MI-3111
Applicable preamplifier
MI-3111
Applicable preamplifier
MI-3140
↑ Click the each model for details.

Preamplifier

MI-3170
1/2-inch

Preamplifier

More dedails
MI-3111
1/2-inch
Preamplifier
More dedails
MI-3140
1/4-inch
Preamplifier
More dedails
MI-3310
MI-3111
MI-3140 1/4インチ計測マイクロホン用プリアンプ
Feature
·1/2-inch
·Withstand a severe temperature environment
·Effective for low frequency sound and micro small sound
Feature
·1/2-inch
·High cost performance
·Effective for multi-channel measurement
Feature
·1/4-inch
·Ideal for space saving
·Supports wide frequency range
Overview Specification
Insertion loss
0.15 dB (representative value)
Frequency range
10 Hz to 40 kHz
(±1.0 dB, -0.2 dB, 1 kHz as reference)
1 Hz to 40 kHz
(±1.0 dB, -1.5 dB, 10 kHz as reference)
Intrinsic noise (effective value)
A-weighting: 3.3 μV or less
Total harmonic distortion (at 1 kHz)

0.0316% or less

(input effective voltage 1 V)

Overview Specification
Insertion loss
1.0 dB(representative value)
Frequency range
10 Hz to 20 kHz
(±1.0 dB, 1 kHz as reference)
20 Hz to 20 kHz
(±0.6 dB, 1 kHz as reference)
Intrinsic noise (effective value)
A-weighting: 5.0 µV or less
Total harmonic distortion (at 1 kHz)
1% or less
(input effective voltage 3 V)
Overview Specification
Insertion loss
0.25 dB(representative value)
Frequency range

10 Hz to 100 kHz
(±0.5 dB or less, 1kHz as reference)





Intrinsic noise (effective value)
A-weighting: 2.5 µV or less
Total harmonic distortion (at 1 kHz)

3% or less

(input effective voltage 8 V)

DC bias voltage
12 V ± 2 V
Maximum output voltage

±8 V (peak)
Sound pressure conversion 135 dB




Operating temperature range
-30 to +80 ℃
Operating relative humidity range

0 to 90%RH (with no condensation)



Storage temperature range
-40 to +70 ℃
Storage relative humidity range
0 to 90%RH (with no condensation)
Power supply
CCLD
2 to 4.5 mA, 18 to 26 VDC
Applicable connector
CO2 (BNC)
Weight

Approx. 35 g

(not including microphone)

Outer dimension
φ12.7×80.5 mm
Accessory

Protection cap for input connector×1

Microphone holder (MI-0301)×1



Extension cable

MX-1000 series (recommended)

MX-2000 series
DC bias voltage
8 V ± 1 V
Maximum output voltage

±5.6 (peak)

(driving power: 24VDC, 4mA)

Sound pressure conversion 135 dB


Operating temperature range
-10 to +50 ℃
Operating relative humidity range

30 to 90 %RH

(with no condensation)

Storage temperature range
-20 to +60 ℃
Storage relative humidity range
10 to 90 %RH(with no condensation)
Power supply
CCLD
0.5 to 5 mA, 15 to 25 VDC
Applicable connector
CO2(BNC)
Weight

Approx. 25 g

(not including microphone)

Outer dimension
φ12.7×63.5 mm
Accessory

Protection cap for input connector×1

Microphone holder (MI-0301)×1



Extension cable

MX-2000 series (recommended)



DC bias voltage
12 V (representative value)
Maximum output voltage

±8 V (peak)

(driving power: 24VDC, 4mA)
Sound pressure conversion 157 dB
(MI-1531 sensitivity: -48 dB re. 1V/Pa)

Operating temperature range
-30 to +60 ℃
Operating relative humidity range

0 to 90 %RH(with no condensation)



Storage temperature range
-30 to +80 ℃
Storage relative humidity range
0 to 95 %RH(with no condensation)
Power supply
CCLD
2 to 20 mA, 15 to 25 VDC
Applicable connector
10-32 UNF
Weight

Approx. 5.5 g

(not including microphone)

Outer dimension
φ6.35×44 mm
Accessory

Protection cap for input connector×1

1/4-inch conversion adapter

(SC-0313)×1

Extension cable

NP-0130 series (recommended)



Applicable Microphone
MI-1271
MI-1235
MI-1433
MI-1234*
MI-1233*
MI-1432*
MI-1431*
Applicable Microphone
MI-1235
MI-1433
MI-1234*
MI-1433*
MI-1432*
MI-1431*
Applicable Microphone
MI-1531

*:Discontinued products

Directional Microphone Sensor Amplifier
MI-8100
Directional Microphone
More details
SR-2210
2ch Sensor Amplifier
More details
MI-3140
Feature
The MI-8100 is a shotgun type directional microphone which sharply catches the intended sound. This is helpful for the removal of background noise in the simple exploration and in abnormal sound detection.
Feature

The SR-2210 sensor amplifier accepts constant-current line drive sensors and connects the signal to analyzers and recorders that would not otherwise be compatible with constant-current sensors. Dual power source: battery or AC adaptor (optional) Stackable for multiple channels.

Overview Specification
Directivity
Narrow angle directivity
Frequency range
50 Hz to 20 kHz
Sensitivity
-30 dB ± 3 dB
Maximum sound pressure
137 dB
Intrinsic noise level
26 dB or less
Accessory
Wind screen
Overview Specification
Frequency range
1 Hz to 20 kHz load impedance 100 kΩ or more
Gain
-10 to 60 dB
(8 stages selectable in 10 dB steps, ± 0.2 dB)
Input impedance
1 MΩ ± 0.5%
Intrinsic noise level
-105 dBVrms or less (A),
-100 dBVrms or less (C),
-95 dBVrms or less (FLAT)
Input cutoff frequency
Approx. 0.16 Hz
Input voltage
maximum 12.5 dBVrms (± 6 V)
Frequency compensation
A, C, FLAT
Output cutoff frequency
Approx. 0.2 Hz (load impedance 100 kΩ or more)
Approx. 0.4 HZ (load impedance 50 kΩ or more)
Output voltage
maximum 12.6 dBVrms (± 6 V)





Applicable microphone, preamplifier, cable
Microphone
Preamplifier
Cable/conversion connector Amplifier
MI-1234*
MI-1235
MI-1432*
MI-1433
MI-3111
MX-100 series
SR-2210
AU-2200*
MI-1531
MI-3140
NP-0130
+NP-0021
SR-2210*1
AU-2200*
MI-1211
MI-3310
AG-3300 series
AU-2200*
MI-1234*
MI-1235
MI-1432*
MI-1433
MI-3310
AG-3300 series
AU-2200*
↑ Click the each model for details.

*Discontinued product

*1: Frequency range guaranteed: up to 20 kHz.

Sound Intensity Probe

Sound intensity probe
MI-5420
Sound Source Visualization Probe Microphone
More details
MI-6420
3-D Sound Intensity Probe
More details
MI-5420
MI-6420
Feature
MI-5420 is probe microphone to visualize sound source with a minimum number of microphones by using Beam Forming and originally developed calculation method. Compact design of approx. 35 cm allows ease of use and good portability. Two types of probe head (for low frequency and high frequency) are provided to meet demands for wide frequency range measurement. As 500 Hz to 8000 Hz of frequency is supported by two probe heads, you can select either depending on your needs.
Feature
Four microphones are placed in each apex of a regular tetrahedron and unique to Ono Sokki. Calculate sound intensity of any two microphone pairs (six ways) in four microphones, and then determine the three-dimensional sound intensities by calculating components along the X, Y, and Z axes of the microphone probe.
Overview Specification
Probe structure
3D arranged tetrahedral microphone
Microphone type
1/4-inch microphone
Sound pressure sensitivity
−38 dB ± 3 dB
Sound pressure level

Max. 110 dB (1 kHz, THD 3 %)



Temperature coefficient
0.1 dB / 10 ℃(TYP)
Gap between microphones
For low-frequency: 120 mm
For high-frequency: 60 mm
Measurable frequency range

For low-frequency: 500 Hz to 4 kHz
For high-frequency: 1 kHz to 8 kHz



Accessories
Carrying case, microphone position checking plate, BNC cable (0.2 m), BNC-JPJ adapter, mount, correction file CD, instruction manual
Overview Specification
Probe structure
Tetrahedron 4-microphone three-dimensional arrangement
Microphone type
1/4-inch Back electret-type condenser microphone
Sound pressure sensitivity
-17 dB ± 3 dB
Sound pressure level
Min. 32 dB (A), 40 dB (F)
Max. 125 dB (1 kHz, THD 3 %)
Temperature coefficient
0.1 dB / 10°C (TYP)
Gap between microphones
For low-frequency: 60 mm
For high-frequency: 20 mm
Measureable frequency range
For low-frequency: 40 Hz to 1.2 kHz (-1 ± 1 dB)
For high-frequency: 120 Hz to 3.6 kHz (-1 ± 1 dB) to 5 kHz (-2 ± 1 dB)
Shortest distance between measuring object and acoustic center
For low-frequency: approx. 40 mm
For high-frequency: approx. 14 mm
Accessories
Connection cable: 5 m
Adapter (for 60 mm, for 20 mm)
Storage case

Applicable microphone amplifier

CF-0610 4ch



Applicable Calibrator

MI-0620 Sound pressure phase calibrator

↑ Click the each model for details.

Sound Level Meters

Integrating sound level meter
LA-1411 Class2 More details
LA-1441 Class2 More details
LA-4441 Class1 More details
LA-1411
LA-1441
LA-4441
Feature
● Integrating sound level meter (Class 2) for product testing and measuring the sound level generated from machines etc.
● High-performance and cost-effective model
Feature
● Integrating sound level meter (Class 2) for measuring the working environment and environmental noise
● Auto measurement function by timer and trigger
● Level trend can be recorded at the interval from 1ms. (Lp memory function)
● Equipped with USB and RS-232C interfaces
Feature
● Precision integrating sound level meter (Class 1) for sound analysis and product testing.
● Time weighting (10ms, Impulse) corresponding to the fast sound fluctuation.
● Level trend can be recorded at the interval from 1ms. (Lp memory function)
● Equipped with USB and RS-232C interfaces
Overview Specification
Applying standard

JIS C 1509-1:2017 Class 2

JIS C 1516:2014 Class 2
IEC 61672-1:2013 Class 2

Microphone
1/2-inch back electret condenser microphone MI-1433
Nominal sensitivity level: -29 dB
Preamplifier
MI-3111
Linearity range

100 dB (wide range)

80 dB (normal range)

Frequencyrange
10 Hz to 8 kHz (JIS, IEC)
Measurement level range
A: 26 dB to 135 dB (JIS, IEC)
C: 31 dB to 135 dB (JIS, IEC)
Z: 36 dB to 135 dB (JIS, IEC)
Frequency weighting

A, C and Z

Intrinsic noise

A: 15 dB or less
C: 17 dB or less
Z: 25 dB or less

Level range
20 to 90 dB, 30 to 90 dB, 40 to 100 dB, 50 to 110 dB, 60 to 120 dB, 70 to 130 dB, 40 to 120 dB (wide range)
Time weighting
FAST, SLOW
Measurement items

Lp, Leq, LE, Lmax, Lmin, Lpeak, LN(Lhigh, L5, L10, L50, L90, L95, Llow, Lave)

Level trend

Lp, every kind of calculated value





Sampling frequency
31.25 µs (other than LN) 100ms (LN)
Measurement (calculation) time
Manual, arbitrary setup (199 h 59 m 59 s max.)
Total measurement time
Start mode

Manual









Internal refernce signal (REF OUT)
Electrical calibration by internal calibration signal (1 kHz sine wave), calibration by external sound calibrator
Recommended sound calibrator
SC-2500/SC-3120/SC-2120A
Manual memory function
Total calculated values: 100 addresses
Auto memory function





Lp Record memory function









Measurement condition memory function

Condition memories (9 kinds)

Resume function
Settings activated at power ON can be selected from follows; settings used at previous power OFF, factory setting, and any condition memory number which is set from menu.
AC output
0.707 Vrms/F.S (normal range),
2.236 Vrms/F.S. (wide range),
load resistance 10 Ω or more
(with upper-limitation value of bar indicator)
Frequency weighting can be selected: conjunction with selected frequency weighting or fixed to Z-weighting.
DC output
2.5 V/F.S.
(with upper-limitation value of bar indicator)
Amount of voltage fluctuation per 10 dB: 0.25 V
Load resistance: 10 kΩ or more
Overview Specification
Applying standard

JIS C 1509-1:2017 Class 2

JIS C 1516:2014 Class 2
IEC 61672-1:2013 Class 2

Microphone
1/2-inch back electret condenser microphone MI-1433
Nominal sensitivity level: -29 dB
Preamplifier
MI-3111
Linearity range

100 dB (wide range)

80 dB (normal range)

Frequencyrange
10 Hz to 8 kHz (JIS, IEC)
Measurement level range
A: 26 dB to 135 dB (JIS, IEC)
C: 31 dB to 135 dB (JIS, IEC)
Z: 36 dB to 135 dB (JIS, IEC)
Frequency weighting

A, C and Z

Intrinsic noise

A: 15 dB or less
C: 17 dB or less
Z: 25 dB or less

Level range
20 to 90 dB, 30 to 90 dB, 40 to 100 dB, 50 to 110 dB, 60 to 120 dB, 70 to 130 dB, 40 to 120 dB (wide range)
Time weighting
FAST, SLOW
Measurement items

Lp, Leq, LE, Lmax, Lmin, Lpeak, LN(Lhigh, L5, L10, L50, L90, L95, Llow, Lave)

Level trend

Lp, every kind of calculated value (Read out the displayed value as auto memory call)

Sampling frequency
31.25 µs (other than LN) 100ms (LN)
Measurement (calculation) time
Manual, arbitrary setup (199 h 59 m 59 s max.)
Total measurement time
Arbitrary setup (199 h 59 m 59 s max.)
Start mode
Manual, timer (time setting, in increment of 1 second), trigger (can be started after a lapse of specified time [0 to 10 seconds, in increment of 1 minute] after trigger detection: trigger delay function)
Internal refernce signal (REF OUT)
Electrical calibration by internal calibration signal (1 kHz sine wave), calibration by external sound calibrator
Recommended sound calibrator
SC-2500/SC-3120/SC-2120A
Manual memory function
Total calculated values: 100 addresses
Auto memory function
Leq: 1000 addresses × 200 blocks
Total calculated values: 100 addresses × 200 blocks
Lp Record memory function
Sound level with time weighting is stored at the specified interval. (1000 address × 200 blocks)
Storing intervals (1 ms, 2 ms, 5 ms and 10 ms)
Measurement condition memory function

Condition memories (9 kinds)

Resume function
Settings activated at power ON can be selected from follows; settings used at previous power OFF, factory setting, and any condition memory number which is set from menu.
AC Output
0.707 Vrms/F.S (normal range),
2.236 Vrms/F.S. (wide range),
load resistance 10 Ω or more
(with upper-limitation value of bar indicator)
Frequency weighting can be selected: conjunction with selected frequency weighting or fixed to Z-weighting.
DC output
2.5 V/F.S.
(with upper-limitation value of bar indicator)
Amount of voltage fluctuation per 10 dB: 0.25 V
Load resistance: 10 kΩ or more
RS-232C
Control of operation, data output, print out (to the DPU-414 printer)
Baud rate:9,600/115,200 bps
USB
Control of main unit and data output,
USB2.0 FULL SPEED (connecting virtual COM port)
Overview Specification
Applying standard

JIS C 1509-1:2017 Class 1

JIS C 1516:2014 Class 1
IEC 61672-1:2013 Class 1

Microphone
1/2-inch back electret condenser microphone MI-1235
Nominal sensitivity level: -29 dB
Preamplifier
MI-3111
Linearity range

100 dB (wide range)

80 dB (normal range)

Frequencyrange
10 Hz to 20 kHz (JIS, IEC)
Measurement level range
A: 27 dB to 135 dB (JIS, IEC)
C: 30 dB to 135 dB (JIS, IEC)
Z: 35 dB to 135 dB (JIS, IEC)
Frequency weighting

A, C and Z

Intrinsic noise

A: 16 dB or less
C: 17 dB or less
Z: 24 dB or less

Level range
20 to 90 dB, 30 to 90 dB, 40 to 100 dB, 50 to 110 dB, 60 to 120 dB, 70 to 130 dB, 40 to 120 dB (wide range)
Time weighting
FAST, SLOW, IMPULSE, 10 ms
Measurement items

Lp, Leq, LE, Lmax, Lmin, Lpeak, LN(Lhigh, L5, L10, L50, L90, L95, Llow, Lave)

Level trend
Lp, every kind of calculated value (Read out the displayed value as auto memory call)
Sampling frequency
20.8 µs (other than LN) 100ms (LN)
Measurement (calculation) time
Manual, arbitrary setup (199 h 59 m 59 s max.)
Total measurement time
Arbitrary setup (199 h 59 m 59 s max.)
Start mode
Manual, timer (time setting, in increment of 1 second), trigger (can be started after a lapse of specified time [0 to 10 seconds, in increment of 1 minite] after trigger detection: trigger delay function)
Internal refernce signal (REF OUT)
Electrical calibration by internal calibration signal (1 kHz sine wave), calibration by external sound calibrator
Recommended sound calibrator
SC-2500/SC-3120
Manual memory function
Total calculated values: 100 addresses
Auto memory function
Leq: 1000 addresses × 200 blocks
Total calculated values: 100 addresses × 200 blocks
Lp Record memory function
Sound level with time weighting is stored at the specified interval. (1000 address × 200 blocks)
Storing intervals (1 ms, 2 ms, 5 ms and 10 ms)
Measurement condition memory function
Condition memories (9 kinds)
Resume function
Settings activated at power ON can be selected from follows; settings used at previous power OFF, factory setting, and any condition memory number which is set from menu.
AC Output
0.707 Vrms/F.S (normal range),
2.236 Vrms/F.S. (wide range),
load resistance 10 Ω or more
(with upper-limitation value of bar indicator)
Frequency weighting can be selected: conjunction with selected frequency weighting or fixed to Z-weighting.
DC output
2.5 V/F.S.
(with upper-limitation value of bar indicator)
Amount of voltage fluctuation per 10 dB: 0.25 V
Load resistance: 10 kΩ or more
RS-232C
Control of operation, data output, print out (to the DPU-414 printer)
Baud rate:9,600/115,200 bps
USB
Control of main unit and data output,
USB2.0 FULL SPEED (connecting virtual COM port)
↑ Click the each product for more details.

Sound Level Meter
LA-7200
High Performance Sound Level Meter
Class 2
詳細はこちら

LA-7500
High Performance Sound Level Meter
Class 1
詳細はこちら
LA-7200
LA-7200
Feature
● 4.3 inch color LCD. Easy to see overlapping graph clearly
● Long time measurement by USB bus power and size AA battery cells
● Simultaneous processing of frequency analysis and recording*(*LA-0704 Recording funcrion is required.)
● Easy sound comparison by switching Allpass filtered sound and Bandpass filtered sound.
Specification(overview)
Conforming standard
JIS C 1509-1: 2017 Class 2
JIS C 1516:2014 Class 2
IEC 61672-1:2013 Class 2
ANSI S1.4-2014/Part1 Class 2
JIS C 1509-1: 2017 Class 1
JIS C 1516:2014 Class 1
IEC 61672-1:2013 Class 1
ANSI S1.4-2014/Part1 Class 1
Type approval numbr of Measurement act
TF172 TS171
Microphone
MI-1471 MI-1271
Preamplifier
MI-3270
Linearity range
Wide range: 110 dB/normal range: 80 dB
Measurement frequency range
10 Hz to 8 kHz 10 Hz to 20 kHz
Measurement level range(JIS,IEC)
A: 23 to 138 dB
C: 30 to 138 dB
Z: 36 to 138 dB
A: 24 to 138 dB
C: 32 to 138 dB
Z: 38 to 138 dB
Inherent noise level
A: 17 dB or less
C: 24 dB or less
Z: 30 dB or less
A: 16 dB or less
C: 24 dB or less
Z: 30 dB or less
Level range
20 to 130 dB(wide)/60 to 130 dB/50 to 120 dB/ 40 to 110 dB/30 to 100 dB/20 to 90 dB/10 to 80 dB
Reference range
50 to 120 dB
Time weightings e.g.:LAF
F(Fast), S(Slow), I(Impulse), 10 ms
Frequency weightings e.g.:LAF
A,C or Z weighting
Measurement items
Lp, Leq, LE, Lmax, Lmin Lpeak, LN (L5, L10, L50, L90, L95, Lhigh, Llow, Lave, two more of any LN value)
Sampling interval
15.6 μs (Lp, Leq, LE, Lmax, Lmin, Lpeak), 100 ms (LN)
Measurement time
e.g.:If you want to measure a fixed 10-minute period every hour, and wish to measure this for 24 hours
→M.T:10 min, P.T:1h, T.T:24h
Measurement time ( Meas. Time) OFF (free), user-specified setup 0.1 to 199 hour 59 min 59.9 sec / resolution:0.1 sec
Period time (Period Time) 1 min to 24 hour resolution:1 min
Total time (Total Time) 0 sec to 999 hour 59 min 59.9 sec / resolution:0.1 sec
Start mode
Manual start, timer start, count down start, level start
Display
4.3 inch LCD with color backlight (touch panel type)
Digital display 4-digit / resolution: 0.1 dB / update cycle : 1 s
Bar indicator Wide range:display range 100 dB/normal range:display range 70 dB
Remaining battery level display 4-step display
Memory function
Stored in an SD/SDHC card( SDHC card: up to 32 GB)
Memory card MANUAL (CSV file), AUTO (instantaneous value, calculated value, CSV file)…standard function
LOGGING(instantaneous value 10 ms or 100 ms, CSV file)………………………standard function
RECORD(WAVE file : 64 kHz sampling)……………………………………………………LA-0704 required
Panel condition memory Internal memory(internal condition: 5, EZ condition: 5 /SD, power off memory) or SDHC card memory
Basic measurement mode 5 modes (EZ1:LAeq+LCpeak, EZ2:Record, EZ3:Logging 100 ms, EZ4:NC, EZ5: Loudness)
Clock function

Built-in (year/month/day/hour:minute)

Retention time of content:approx. 1 year (charging time:24 hours from entire discharge stage)

Calibration history function

Built-in memory(number of stored points:approx. 100 points)
Content(calibration value, VR position for control, internal reference signal of used sound calibrator, calibration date)

Resume function Stores measurement conditions into the built-in memory
Calibration history function
Reference signal
(when connecting an external device)

Electronic calibration by built-in transmitter (1 kHz sine wave)
Normal range:-6 dB of full-scale / wide range: -16 dB of full-scale

Recommended calibrator SC-3120,SC-2500 SC-3120,SC-2500,SC-2120A
Output/Input
Phone output (Phone output)

・Actual sound or recorded sound (playback sound)
・Selected 1 band of actual sound or recorded sound (playback sound) in 1/1 Octave filter
    mode(standard function) 1/3 Octave filter mode(option:LA-0702)
・Maximum output:0.03 mW (63 Ω:at 1 kHz)

    Connector:stereo φ3.5

AC output Outputs one of A, C, or Z interlocked with the main display
  AC output level Output level:0.707 Vrms±5 %(normal range), 2.236 Vrms±5 % (wide range)
range full scale input/1 MΩ loaded
Distortion rate (range full scale) : 0.2 % or less
Load resistance: 10 kΩ or more
Offset voltage: ±30 mV or less
Output impedance: 50 Ω±2 %
AC/DC output Selectable from DC, AC-Z, or Through
  DC output level 2.5 V±20 mV(normal range, wide range)range full scale input/1 MΩ loaded
Scale factor: 0.25 V±10 mV/10 dB
Load resistance: 10 kΩ or more
Output impedance: 50 Ω±2 %
AC-Z output level Output level:0.707 Vrms±5 % (normal range), 2.236 Vrms±5 % (wide range)
range full scale input/1 MΩ loaded
Distortion rate (range full scale): 0.2 % or less
Load resistance: 10 kΩ or less
Offset voltage: ±30 mV or less
Output impedance: 50 Ω±2 %
Through output level

0.707 Vrms±5 %(normal range, wide range)
Full scale input/1 MΩ loaded
Distortion rate: 0.2 % or less output

External control input

Operation:Reset and start
Control voltage:non-voltage contact input
Input pulse width: 200 ms or more
Absolute max. input voltage:24.0 V

Interface
RS-232C Baud rate:9600, 115200 bps, Multi I/O cable (sold separately)
USB

Ver.2.0:USB high speed storage class specification

USB connection cable:USB(A)male-USB (mini) male (sold separately)

External memory SD/SDHC memory card (SDHC: up to 32 GB)
Applicable extension cable (for microphone extension) *1
AG-3400 series(CE conforming: up to 30 m), max. extension length:103 m (AG-3305)
*The cable extension more than 5m: correction function available.
Power supply
・Size AA (alkaline battery cell or Ni-MH secondary battery cell)x 4
・USB Buss power (operation input voltage range: 4.75 to 5.25VDC)
・AC adapter (PB-7090) Power consumption: approx. 7 VA at 100 VAC)
External power operation function
The main unit is activated automatically when the power is supplied from an AC adapter.
(This function is not available by battery cells.)
ON/OFF can be done with the switch in the battery box (standard function).
Windscreen correction function
Function to correct the influence of windscreen
*Applicable to the IEC61672-1 even if the windscreen is installed.
Battery life (continuous use) *2
Alkaline battery cell LR6: approx. 12 hours
Ni-MH secondary battery cell:approx. 12 hours
Operating (storage) temperature range
−10 to 50 ºC (−20 to 60 ºC)
Operating (storage) humidity range
22 to 90 % RH (10 to 90 % RH)( with no condensation)
Output dimension
approx. 90 mm (W)×279 mm (H)×42 mm (D)
Weight
approx. 540 g(including batteries)
Accessory
AC adapter (PB-7090), signal cable (AX-501), windscreen (φ70 mm), Handstrap, Size AA alkaline battery cell x 4, SDHC memory card, Carrying case (with shoulder belt), Instruction manual (CD), Setup guide

*Please use a recommended SD card when you use the SD memory function.
*1: The described value is extendable length when the exclusive cable is used.
*2: It depends on the using status such as operation mode, memory mode, and backllight.

Related Products

Related Products
SC-3120
Sound calibrator (piston phone type)
More details

SC-2500
Sound calibrator (speaker type)
More details

SC-2120A
Sound calibrator (speaker type)
More details
SC-3120
SC-3120
SC-2120A
Feature
The SC-3120 is a Class 1/C-rated piston phone type sound calibrator with high accuracy and high stability. Can be used for calibration of sound level meter, sound measurement equipment including microphone.
Feature

SC-2500 is newly developed calibrator using sound pressure feedback control method for a Class 1 sound level meter.
It can generate a stable sound pressure even if the operating environment changes.

Feature
The SC-2120A is a Class 2-rated speaker type sound calibrator using speaker unit. Can be used for operation check of sound measurement system and so on.
↑ Click the each product for more details.

Revised:2017/11/29



webinfo



Copyright © ONO SOKKI CO.,LTD All Rights Reserved. | Terms of use
