List of signal cable / accessories

for measurement microphones/preamplifiers



Signal cable for 1/2-inch microphone

Model name Length MI seris Appearance Model name Remarks
MX-1001 1.5 m MI-3170
MI-3111
MI-0311
MI-8100
Signal cable for low / high temperature
MX-1000
AU-2200*
SR-2200*
SR-2210
CF-019*
BL-1100*
BNC input
-30 to +80 ℃
MX-1005 5 m
MX-1020 20 m
MX-2001 1.5 m
MX-2000
0 to +60 ℃
MX-2005 5 m
MX-2020 20 m

*:Discontinued products

Signal cable and conversion connector for 1/4-inch microphone

Model name Length Connection
source
Overview Connection
destination
NP-0131 1.5 m MI-3140
Operating temperature range :-73 to +260 ℃
Cable diameter                        :φ2.3mm
Type                                         :Low-noise cable
NP-0021
Miniature connector input
NP-0132 3 m
NP-0133 5 m
NP-0134 10 m
NP-0021 - NP-0131
NP-0132
NP-0133
NP-0134

AU-2200*
SR-2200*
SR-2210
CF-019*
BL-1100*
BNC input

*:Discontinued products

Microphone extension cable for Sound level meter (BNC type)

Model name Length Connection
source
Overview Connection
destination

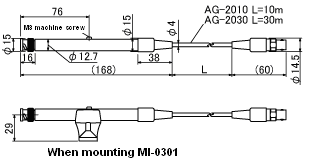

AG-2010 10 m Preamplifier of a sound level meter

(LA-1350*,
LA-4350*,
LA-1410*,
LA-1440*,
LA-4440*
LA-1411,

LA-1441,
LA-4441 )

* MI-0301 is attached as standard.

Main unit of a sound level meter
(LA-1350*,
LA-4350*,
LA-1410*,
LA-1440*,
LA-4440*
LA-1411,

LA-1441,
LA-4441 )

AG-2030 30 m

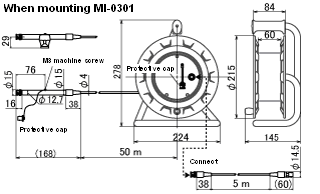

AG-2050 50 m


* MI-0301 is attached as standard.

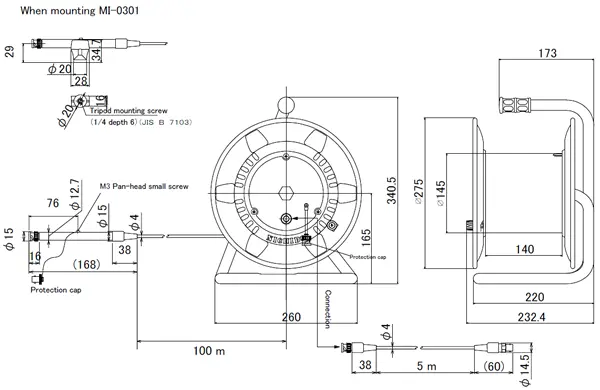

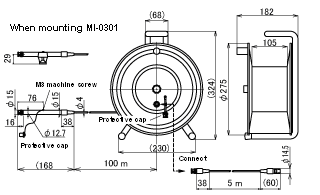

AG-2100 100 m


* MI-0301 is attached as standard.

*:Discontinued products

Microphone extension cable for Sound level meter

Model name Length Connection
source
Overview Connection
destination

AG-3401

5 m

MI-3310*
Preamplifier of a sound level meter (LA-3260*/
3560*/3570*
LA-7200/7500 )







* MI-0301 is attached as standard.

AU-2200*
DS microphone input unit
Main unit of a sound level meter
(LA-3260*/
3560*/3570*
LA-7200/7500 )
6-pin connector(R04) input
AG-3402 10 m
AG-3403 20 m
AG-3404 30 m

*:Discontinued products

Microphone holder adapter

Model name How to use Appearance
MI-0301

イラスト(NP-0020 信号ケーブル延長用アダプタ)

MI-0302 1/4 inch screw (screw for camera tripod) male


3/8 inch screw (AKG standard) female



Extension rod for MI-3111/ MI-3170

Model name Appearance
MI-0311

(for MI-3111/3170)




Windshield screen

Product name Applicable sound level meter / microphone
Small type φ70 mm LA-200 series*,  LA-1200 series*,  LA-1300/4300 series*, LA-1400 series*, LA-3000 series*,  LA-1401, LA-7000 series provided as standard accessory
Large type φ90 mm LA-500*,  LA-5500 series*, LA-5000 series*, LA-2000 series* provided as standard accessory


Stand

Model name/product name Appearance
HT-0521B
Stand jig
in preparation
HT-0522
Magnet stand

Revised:2019/07/22
