Accelerometer cable / accessory

List of signal cable / accessory




Signal Cable

Model name Length Compatible Sensor Models Outer dimensions / Specifications

NP-0121

1.5 m NP-2120,2810,3120,3121,3130,3131
(NP-2130,3910∗2,510,510I,520,520I ,550,560∗2,602∗1)∗3
イラスト(NP-0120 シリーズ信号ケーブル)

Operating temperature range : −25 to +105 ℃
Cable diameter                        : φ1.2 mm
Type                                         : Low noise cable
NP-0122 3 m
NP-0123 5 m
NP-0124 10 m
NP-0131 1.5 m NP-2120,2810,3120,3121,3130,3131
(NP-2130,3910∗2,510,510I,520,520I ,550,560∗2,602∗1)∗3
イラスト(NP-0130 シリーズ信号ケーブル)

Operating temperature range :−73 to +260 ℃
Cable diameter                        : φ2.3 mm
Type                                         : Low noise cable
NP-0132 3 m
NP-0133  5 m
NP-0134 10 m
NP-0143 5 m NP-3331B,3331N30
(NP-3331,3331A,3331N20)∗3
イラスト(NP-0140 シリーズ信号ケーブル)

Operating temperature range :−20 to +110 ℃
Cable diameter                        : φ4.2 mm
NP-0144 10 m
NP-0146 20 m
NP-0148 30 m
NP-0151A 1.5m NP-2910∗1,3110∗1,3412,3414,3418

イラスト(NP-0150 シリーズ信号ケーブル)

Operating temperature range : Micro connector -20 to 160 ℃
                                                  Miniature connector -20 to 110 ℃
Cable diameter                        : φ1.2mm
Type                                         : Low noise cable

NP-0152A 3 m
NP-0153A 5 m
NP-0154A 10 m
NP-0162 3 m NP-2710 イラスト(NP-0160 シリーズ信号ケーブル)


Operating temperature range : −90 to +260 ℃
Cable diameter                        : φ2.0 mm
Type                                         : Low noise cable

NP-0164 9 m
NP-0172A 3 m NP-3211 ∗1 イラスト(NP-0172 シリーズ信号ケーブル)


Operating temperature range : −90 to +260 ℃
Cable diameter                        : φ1.1 mm

NP-0222 3 m

NP-3572,3574,(NP-3560)∗3

NP-3576N20,3578N20
(NP-3576N10,NP-3578N10)∗3

イラスト(NP-0222 信号ケーブル)

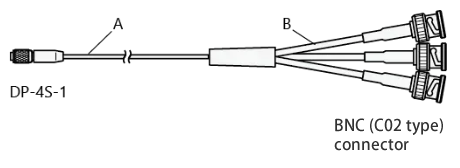

イラスト(NP-0232 信号ケーブル)


Operating temperature range : Section A = −50 to +125 ℃,
                                                  Section B = −20 to +60 ℃
Cable diameter                        : Section A = φ2.6 mm,
                                                  Section B = φ2.1 mm
Type                                         : Low noise cable

NP-0232 3 m
NP-0213 5 m Extension cable for

NP-3572,3574,(NP-3560)∗3
NP-3576N20,NP-3578N20
(NP-3576N10,NP-3578N10)∗3


Operating temperature range : −51 to +125 ℃
Cable diameter                        : φ2.6 mm

NP-0214 10 m
NP-0252 3 m NP-3560B, (NP-3560A)∗3 イラスト(NP-0252 信号ケーブル)

イラスト(NP-0262 信号ケーブル)


Operating temperature range : −90 to +200 ℃
Cable diameter                        : Section A = φ2.54 mm,
                                                  Section B = φ1.96 mm

NP-0262 3 m
NP-0243 6 m

Extension cable for NP-3560B, (NP-3560A)∗3

イラスト(NP-0240 シリーズ 信号ケーブル)


Operating temperature range : −90 to +200 ℃
Cable diameter                        : φ2.54 mm

NP-0073∗4 0.4 m Branch cable for NP-7310

Operating temperature range : −10 to +50 ℃
Cable diameter                        : φ2.5 mm

∗1: The cable is provided with the sensor as standard.
∗2: The NP-0021 Miniature/ BNC conversion adapter is required.
∗3: Models within parentheses ( ) have been already discontinued.
∗4: The cable is provided with the NP-7310 as standard.



Cable Extension Adapter

Model name Usage Example Outer dimensions
NP-0020

イラスト(NP-0020 信号ケーブル延長用アダプタ)

Miniature / BNC Conversion Adapter

Model name Usage Example Outer dimensions
NP-0021

イラスト(NP-0021 ミニチュア/BNC変換コネクタ)

Magnet Base

Model name Specifications Compatible sensors Outer dimensions
NP-0100 Weight : 22 g
Force    : 120 N
NP-3130,3131,3310,3331B,3331N30
(NP-2130,3331A,3331N20,4120,520,520I)
NP-0101 Weight : 12 g
Force    : 30 N
NP-2120,3120,3121,3572,3574,3576N20,3578N20
(NP-3576N10,3578N10,3910,510,510I)
NP-0102 Weight : 10 g
Force    : 30 N

NP-3110,3412,3414,3418
NP-2110,2910,3211,3560B
(3210,3560A,602) : can be used with by using the NP-0042 flat table.
NP-0103 Weight : 2.2 g
Force    : 4.0 N
NP-3412,3414,3418
NP-032 Weight : 34 g
Force    : 40 N
NP-2120,2810,3120,3121,3130,3131,3310
(NP-2130,3910,510,510I,520,520I)

∗Models within parentheses ( ) have been already discontinued.

[Application] Easy attachment with magnet. Attach the NP-0100 to the measurement target when measuring.

Search Needle

Model name Specifications Compatible Sensors Outer dimensions
NP-033 Material : SUS303 NP-500*/2000/3000 series
(excluding NP-2106, 2110, 2710, 2910, 3110, 3210, 3211, 3230, 3412, 3414, 3418, NP-3000 series tri-axial type)

Models with * have been already discontinued.

イラスト(NP-033 探触針)

[Application] The NP-033 search needle is useful for multi-point measurement or the measurement at a narrow space where the sensor attachment is difficult.

Mounting Base

Model name Specifications Compatible Sensors Outer dimensions
NP-031

Material : SUS303





NP-500*/2000/3000 series

(excluding NP-2106, 2110, 2506, 2710, 2910, 3110, 3210*, 3211, 3230*, 3412, 3414, 3418, 3560*, 3560A*, 3560B)
NP-0032 Material : Titanium
NP-2710,3418,3560B,3560A
NP-0035 Material: Aluminum, insulated coating
(3pieces / pack)
NP-2710,3418,3560B,3560A

∗Models within parentheses ( ) have been already discontinued.

イラスト(マウントベース)

[Application] Use a mounting base when you want to protect the bottom surface of a sensor. The base enables a sensor to be mounted on and removed from a test object without scratching the bottom of the sensor.

Mounting Clip

Model name Specifications Compatible Sensors Outer dimensions
NP-0061 Material : ABS resin
Weight  : Approx. 1.7 g

NP-3572,3574,3576N20,NP-3578N20,

3576N10,3578N10

Note: When using a mounting clip, the frequency range is 1 kHz or less.

[Application] Using mounting clip prevents from an accident that threaded screw hole is filled with adhesive or NP sensor is broken by the excessive load at the time of dismount. Also mounting clips at several points on the measurement object make NP sensor easy to move over and result in reducing setup time.

Conversion Screw

Model name Specifications Compatible Sensors Outer dimensions
NP-0051

Material : Beryllium copper

Weight : 0.2 g


NP-3560B,NP-3560A

1 package 3 pieces

Models with * have been already discontinued.

イラスト(NP-0051 変換ネジ)

Flat Table

Model name Specifications Compatible Sensors Outer dimensions
NP-0042 Material : SUS304
Weight : Approx. 7.8 g
NP-2110,2910,3211,3560B
(3210,3560A,602)

* Models within parentheses ( ) have been already discontinued.

イラスト(NP-0042 フラットテーブル)

[Application] Use the flat table when you want to mount the NP-2110/2910/3211/3560B(NP-3210/3560A/602)*sensors on a magnet base.
