Magneto-electric rotation detector
MP-9820
Non-contact gear detection type
MP-9820 is a magneto-electric-rotation detector using an internal hall element, a permanent magnet, DC amplifier, and voltage regulator in its compact body. Using MP-9820 in combination with detection gear enables deriving stable rectangular waveform from ultra low speed all the way through high speed. (1 Hz to 100 kHz)
MP-9820 finds wide range of applications and rotational measurement objects by using with TM-4000 series tachometer and FV-1500 FV converter.
There are 3 types of detectors:
- General type：MP-981
- High speed type：MP-9820
- Water & acid proof type：AP-981
As for the MP-9820, the signal cable, extension cable, and connectors are sold separately.
Features
- Wide range of signal detection from 1 Hz to 100 kHz
- Achieve the highest level of frequency response_Can be used in wide range of applications from low to high speed and rotational measurement objects.
- Neither load on measurement objects nor worries about attrition or lubrication with non-contact detection method.
- Using an internal hall element and waveform processing circuit in its compact body.
- Adopting new type of cable greatly improves in tolerance performance against electrical noise

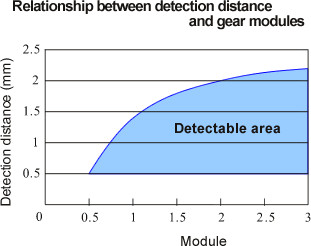

Relationship between detection distance and gear modules
Please use the detective gear which is satisfied with the following specifications.
| Shape of gear | Involute gear or equivalent |
|---|---|
| Module * | 0.5 to 3 |
| Tooth width | 3mm or more |
| Material | Strong magnetic
properties (e.g., S45C, SS400 etc.) |
* Module = Pitch circle diameter / Number of teeth
The detection distance depends on the modules of detective gear, with longer distances being possible with larger modules. Also detection distance depends on temperature. In cases where the ambient temperature varies greatly, it should be mounted with minimum of detection distance. The detectable range shown in the right figure assumes an output waveform duty cycle of 50 % ±20 %.
Precautions of installation
Rotation Detectors Classification table
MP series Rotation Detector Classification table
（PDF 2.3 MB）
Outline of specifications
| Detection method | An internal hall element and electromagnetic property gear |
|---|---|
| Detective gear | Strong
magnetic properties (e.g., S45C, SS400 etc.) involute
type Module: 0.5 to 3, Tooth width: 3mm or more |
| Detection distance | Depends on gear module |
| Measurement range | 1 Hz to 100 kHz (1 to 100,000r/min at 60P/R detective gear)* |
| Output method | Voltage output (collector output method) |
| Output signal | Rectangular waveform Hi level:+5 ± 0.5 V or less, Lo level:+ 0.5 V or less |
| Output impedance | Approx. 330 Ω |
| Applicable tachometers | TM-3100 series, TM-5100, TM-4000 seiries, etc. |
| Applicable F/V converters | FV-1500, |
| Power requirement | 12±2 VDC, approx. 40 mA |
| Protection circuit | Power supply polarity protection |
| Operating temperature range | -10 °C to +70 °C |
| Storage temperature range | -20 °C to +80 °C |
| Operating humidity range | 20 to 80 % RH (with no condensation) |
| Storage humidity range | 20 to 80 % RH (with no condensation) |
| Withstand voltage | 250 VDC |
| Resistance to vibration | At 49 m/s2 in X, Y and Z for each direction. (during operation) |
| Resistance to shock | 490 m/s2 in X, Y and Z direction each three times. (Non-operating) |
| Outer dimensions | 75 (W) × maximum diameter 24 mm |
| Weight | Approx. 80 g (including mounting nuts) |
| Signal cable | Sold separately (30 m or less, MX-7000 / 8000 series connection cables in used) |
*100 kHz means the frequency which is equivalent to 100,000 r/min if the detective gear at 60 P/R is used.
Connection signal cables (MP-981/MP-9820)
|
For TM-3100/4100 seires MX-7105 (one side crimp terminal) 5m MX-7110 (one side crimp terminal) 10m MX-7115 (one side crimp terminal) 15m MX-7120 (one side crimp terminal) 20m |
For CT-6700, TS-2800/3200A MX-8105 (both ends connectorsl) 5m MX-8110 (both ends connectorsl) 10m MX-8115 (both ends connectorsl) 15m MX-8120 (both ends connectorsl) 20m |
|
For TM-4200/4300/4400 series MX-7305 (one side ferrule terminal) 5m MX-7310 (one side ferrule terminal) 10m MX-7320 (one side ferrule terminal) 20m |
