Magneto-electric rotation detector
MP-9810 / MP-9830
Non-contact gear detection type
MP-9810/MP-9830
MP-9810/MP-9830
The MP-9810 and MP-9830 are non-contact, magneto-type detectors incorporating internal magnetoresistive element, permanent magnet, DC amplifier, and voltage regulator inside compact body.
By bringing it close to the tip of the detection gear attached to the rotating shaft, stable rectangle wave signals can be output from ultra-low speed to high speed rotation. In combination with the TM-4000 series Digital Tachometer or FV-1500 FV Converter, the rotational speed of various rotating equipment can be measured.
MP-9810 (Basic type): 0 Hz to 20 kHz, signal cable, extension cable, and connector sold separately
MP-9830 (High speed type): 0 Hz to 100 kHz, signal cable, extension cable, and connector sold separately
Features
- Increased detection distance from gears to a maximum of 3 mm.
- Supporting power supply voltages from 12 to 24 V, improving convenience when incorporating into equipment.
- IP67 compliant: Improved environmental resistance
- Following the basic performance, dimensions, and mounting shape of the existing models.
Detection gear
Please use the detection gear which is satisfied with the following specifications.
| Shape of gear | Involute gear or equivalent |
|---|---|
| Module | 0.5 to 3 (MP-981), 1 to 3 (AP-981) |
| Tooth width | 3 mm or more |
| Material | Strong magnetic properties (e.g., S45C, SS400 etc.) |
Relationship between detection distance and gear modules
The detection distance of the detector varies depending on the module of the detection gear. Using larger module enables to detect for longer distance. Also, the detection distance is dependent upon temperature. In cases where the ambient temperature varies greatly, the mounting should be done as to make the detection distances as small as possible. The detection range shown in the figure assumes the output waveform duty ratio of 50 % ± 20 %.
Precautions of installation
The detector should be aligned the center of the gear teeth with the positioning mark.

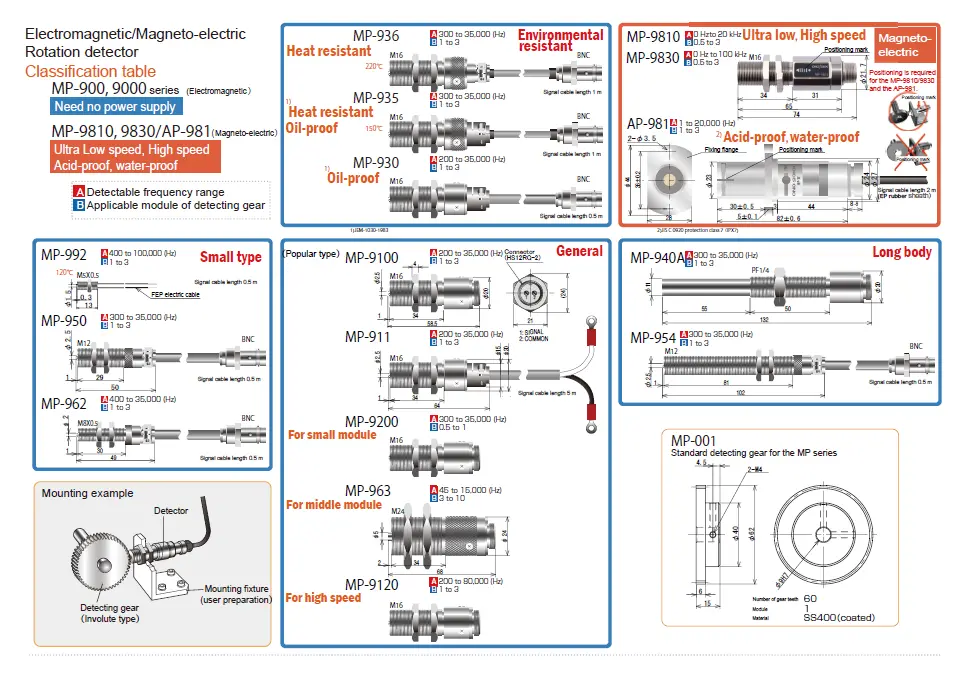

Rotation Detectors Classification table
MP series Rotation Detector Classification table
（PDF 371 KB）
Outline of specifications
| MP-9810/9830 | ||
|---|---|---|
| Detection method | Magnetoresistive element | |
| Measurement range | MP-9810 | 0 Hz to 20 kHz |
| MP-9830 | 0 Hz to 100 kHz*１ | |
| Detection gear | Strong magnetic properties (S45C, SS400) Involute gear (module 0.5 to 3, tooth width 3 mm or greater) |
|
| Detection distance and gear module*2 | Gear module 0.5 | 0.5 mm |
| Gear module 1 | 0.5 to 1.5 mm | |
| Gear module 2 | 0.5 to 2.5 mm | |
| Gear module 3 | 0.5 to 3.0 mm | |
| Power supply voltage | 12 VDC to 24 VDC (allowable power supply voltage range: 10.8 V to 26.4 V) | |
| Current consumption | 40 mA or less (12 V, at 25 °C) | |
| Output waveform | Rectangular waveform | LOW：+0.5 V or less HIGH：+5±0.5 V |
| Output impedance | Approx. 330 Ω | |
| Protective circuit | Power supply polarity and output short-circuit protection | |
| Operating temperature | -10 to +70 °C | |
| Storage temperature | -20 to +80 °C | |
| Withstand voltage | DC 500 V (one minute) | |
| Allowable vibration (during operation) | 50 m/s2 10 to 150 Hz, 150 minutes each in X/Y/Z directions |
|
| Allowable shock (nonoperating) | 500 m/s2, 11 ms impact duration, 3 times each in ±X/Y/Z directions |
|
| Signal cable | MX-7100/7300/8100 series | |
| Weight | Approx. 80 g (including two mounting nuts) | |
| Protection class | IP67 | |
| Conforming standards | CE marking EMC Directive*3 2014/30/EU Standard EN 61326-1 RoHS Directive 2011/65/EU Standard EN IEC 63000 |
|
| Accessories | Mounting nuts x 2 / Instruction manual x 1 | |
| Compatible device*4 | TM-4000 series, FV-1500, CT-6710 | |
*1 The maximum measurement range varies depending on the gear module used. 100 kHz is the frequency at 16,666 r/min using a 0.5 module, 360 P/R gear
*2 Ambient temperatue: +25 °C
*3 EMC non-compliant when using another company's product with power supplied from an external source.
*4 It can also be used with the existing products such as the TM-3100 series. For details, please contact our sales office or nearest distributors.
Connection signal cables (MP-9810/MP-9830)
|
For TM-3100/4100 seires MX-7105 (one side crimp terminal) 5m MX-7110 (one side crimp terminal) 10m MX-7115 (one side crimp terminal) 15m MX-7120 (one side crimp terminal) 20m |
For CT-6710, TS-2800 MX-8105 (both ends connectorsl) 5m MX-8110 (both ends connectorsl) 10m MX-8115 (both ends connectorsl) 15m MX-8120 (both ends connectorsl) 20m |
|
For TM-4200/4300/4400 series MX-7305 (one side ferrule terminal) 5m MX-7310 (one side ferrule terminal) 10m MX-7320 (one side ferrule terminal) 20m |
