List of signal cable for tachometer

Signal cables

Model name Length Detector side Outer view Counter side
Signal cable (Detector Counter)
MX-005 5 m MP-610**/610B**/750**/910**/9100/
912**/9120/920**/9200/940**/940A/963

MP-810/820/830/837
(MP-081+MX-005 series)		 Illustration(MXseries:12P2B - BNC signal cable)

It enables to connect by using MX-000 series+MX-603 or MX-6031 cables when the input plug can be connected to the counter with terminal strip.

 TM-225**
CT-6520B**
FV-1100/1400**/1500/ 5300**
SR-506**/512A**
MX-010 10 m
MX-015* 15 m
MX-020 20 m
MX-101 1.5 m MP-162**/930/931/935/936/950/954/962
FG-1200**/1300		 Illustration(MX-100series:BNC - BNC signal cable)

It enables to connect by using MX-000 series+MX-603 or MX-6031 cables when the input plug can be connected to the counter with terminal strip.

* The followings are directly-attached cables.
MP-930:
0.5 m 		MP-935:
1 m 		MP-936:
1 m 		MP-950:
0.5 m 		MP-954:
0.5 m 		MP-962:
0.5 m
TM-225**
CT-6520B(Discon)
FV-1100/1400**/ 1500/5300**
SR-506**/512A**
MX-105 5 m
MX-110 10 m
MX-115 15 m
MX-120 20 m
MX-505 5m MP-610**/610B**/750**/
910**/9100/912**/9120/
920**/9200/940**/940A/963

MP-810/820/830/837
(MP-081+MX-500 series) 		Illustration(MX-500 series signal cable)

* The TM-5100** has the terminal strip socket for signal input/output.
To connect to the TM-5100**, it is required to process the cable end from a crimp terminal to be open status.

 TM-5100**
TM-225**(Discon)
TM-2100 series**
TM-3100 series**
TM-4100 series
FV-1400**/1500
PA-150
MX-510 10 m
MX-520 20 m
MX-5205 5 m MP-610**/610B**/750**/
910**/9100/912**/9120/
920**/9200/940**/940A/963

MP-810/820/830/837
(MP-081+MX-5205) 		Illustration(RP-004 signaal cabnle) TM-4200 series
TM-4300 series
TM-4400 series
MX-7105 5 m MP-981
LG-916**
LG-9200
MP-9820		 Illustration(MX-700 series sugnal cable)

* The TM-5100 has the terminal strip socket for signal input/output.
To connect to the TM-5100, it is required to process the cable end from a crimp terminal to be open status.

 TM-5100
TM-3100 series**
TM-4100 series
FV-1400**/1500
PA-150
MX-7110 10 m
MX-7115 15 m*
MX-7120 20 m
MX-7305 5 m MP-981
MP-9820
LG-9200
LG-916**
Illustration(MX-700 series sugnal cable) TM-4200 series
TM-4300 series
TM-4400 series
MX-7310 10 m
MX-7320 20 m
MX-8105 5 m MP-981
MP-9820
LG-9200
LG-916**
Illustration(MX-800 series signal cable) CT-6520B**
CT-6710/CT-6700**
FV-5300

TS-2700**(cannot be used with the LG-916**,LG-9200.)
TS-2800(cannot be used with the LG-916**,LG-9200.)
TS-3200A**(cannot be used with the LG-916**,LG-9200.)
MX-8110 10 m*
MX-8115 15 m*
MX-8120 20 m*
RP-0169 5 m RP-432Z

Illustration(RP-004 signaal cabnle)

 TM-2100 series**
TM-3100 series**
TM-4200 series
TM-4300 series
PA-150
RP-0181 5 m RP-721**
RP-7400 series 		Illustration(RP-006 signal cable) TM-2100 series**
TM-3100 series**
TM-4100 series
PA-150
10 m*
RP-0182 5 m RP-721**
RP-7400 series 		Illustration(RP-008 signal cable) RV-3150
TM-5100
10 m*
RP-0184 5 m RP-721**
RP-7400 series 		Illustration(RP-008 signal cable) TM-4200 series
TM-4300 series
PE3534952
(PS-D11144)		 5 m RP-1700 series Illustration(RP-008 signal cable) TM-4200 series
TM-4300 series
PE3534953
(PS-D11145)		 5 m RP-1700 series Illustration(RP-008 signal cable) TM-4200 series
TM-4300 series
PE3534954
(PS-D11146)		 5 m RP-1700 series Illustration(RP-008 signal cable) TM-4200 series
TM-4300 series
PE3534955
(PS-D11147)		 5 m RP-1700 series Illustration(RP-008 signal cable) TM-4200 series
TM-4300 series
Model name Length Cables side Outer view Counter side
Conjunction cable (Cables Counter)
MX-603 0.3 m MX-000 series cable
MX-100 series cable
MX-200** series cable
MX-300** series cable		 Illustration(MX-603 Signal cable)

* The TM-5100 has the terminal strip socket for signal input/output.
To connect to the TM-5100, it is required to process the cable end from a crimp terminal to be open status.

 TM-5100
TM-2100 series **
TM-3100 series**
TM-4100 series
PA-150
FV-1500
MX-6031 0.3 m MX-000 series cable
MX-100 series cable
MX-200** series cable
MX-300** series cable		 Illustration(MX-603 signal cable) TM-4200 series
TM-4300 series
TM-4400 series



Other cables

Model name Length Counter side Outer view Connect side
BCD cable

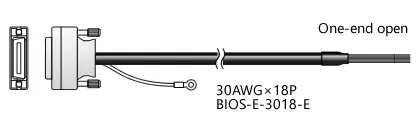

AA-8207 3 m TM-3120**
TM-4100 series		 Illustration(RP-008 signal cable) -
Power cable
AX-2050N 3 m TM-3100 series**
TM-4100 series
TM-4200 series
TM-4300 series
TM-4400 series		 Illustration(RP-008 signal cable) -
Ethernet cable
AX-6103 3 m TM-4100 series
TM-4200 series
TM-4300 series
TM-4400 series		 Illustration(RP-008 signal cable) -
AX-6105 5 m
RS-232C cable
PE3532908
(PS-D10502)		 2 m TM-3100 series**
TM-4100 series
TM-4200 series
TM-4300 series
TM-4400 series		 Illustration(RP-008 signal cable) -

*:Made to order
**:Discontinued

Reference

Easy to connect one detector to several counters by using BNC-JPJ, BNC-JJJ connection.

Illustration(Signal division by using BNC-JPJ connection)
BNCTAJPJ Coaxial connectorBNCTAJPJ Coaxial connector (PE1507010)
BNCTAJJJ Coaxial connectorBNCTAJJJ Coaxial connector (PE1507025)
