On-Board Flow Meter DF-2200
The DF-2200 On-Board Flow Meter is a compact on-board fuel flow meter developed for our FP series Volumetric Flow Detector*. The compact body is equipped with functions such as flow rate/temperature/pressure measurement and CAN communication required for fuel consumption measurement. Adopting the same size as our CT-6700 Engine Tachometer, it can be used by stacking two units in a limited space. In addition to 12 to 24VDC of power source, an AC adapter is available as an option, which is sufficient for not only on-board measurement but also engine bench evaluation.
(* excluding FP-5000 series high resolution type and FP-5150 series)
Features
1. Compact and space saving design for on-board
Outer dimension: 170(w) x 49(H) x 120(D)
Weight: Approx. 800g
Easy to install a vehicle
2. CAN output installed as standard
Equipped with CAN output as standard, which is essential for actual vehicle measurement. Instantaneous flow rate, temperature, and pressure are output in real time to CAN loggers.
CAN system configuration
Connect the LC-0860 CAN interface cable (sold separately) to the CAN communication connector located on the back panel of the DF-2200.
3. Full measurement functions
While speeding up internal sampling, setting the indexation average coefficient of the analog output enables output any averaged data. In addtion,
by setting the standard density value in the DF-2200, the mass flow rate conversion can be performed in real time.
Improved Hold function, Auto stop function (option) and
4. Wider power input range from 10 to 28 VDC
Supports various test vehicles from passenger cars to trucks
DC Input 10 to 28 VDC

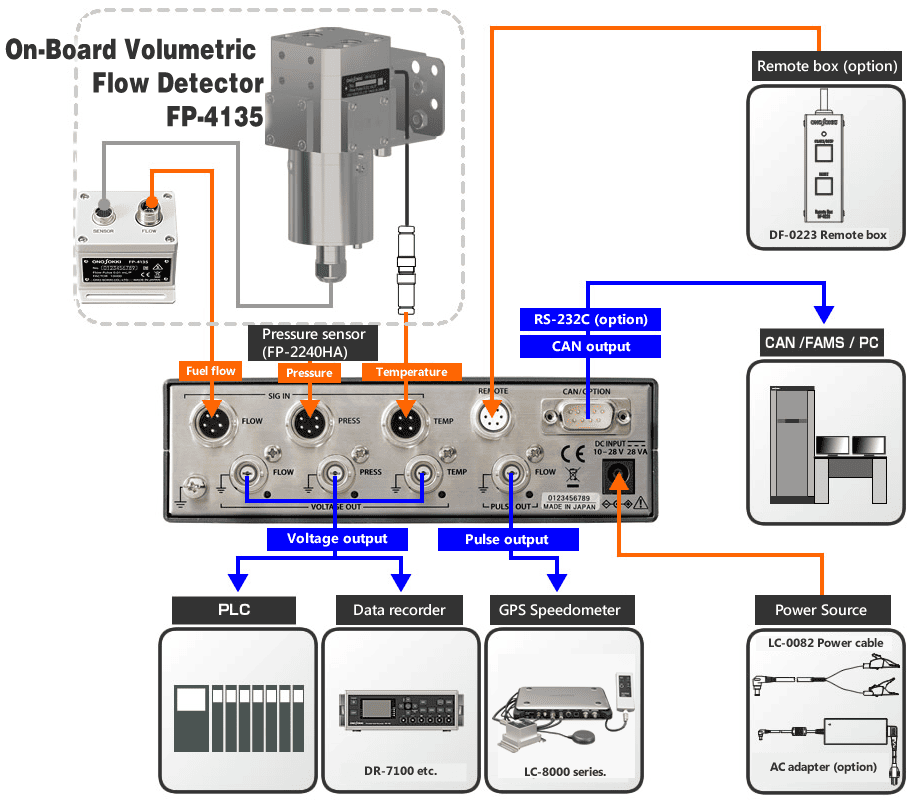

System configuration
Applicable flow meter
* excluding FP-5000 series high resolution type and FP-5150
Specification
General specifications
| Power source | Battery connecting: 10 to 28 VDC When using AC adapter (option): 100 to 240 VAC 50/60 Hz |
|
| Power consumption | 28 VA or less (when 12 VDC) | |
| Operating environment | Indoor, in a vehicle | |
| Altitude | Elevation 2000 m or less | |
| Operating temperature range | 0 to 50 °C * AC adapter: 0 to +40 °C | |
| Storage temperature range | -10 to 60 °C | |
| Operating humidity range | 5 to 80 % | |
| Storage humidity range | 5 to 85 % | |
| Outer dimension | 170 (W) x 49(H) x 120(D) mm | |
| Weight | Approx. 800 g | |
| Safety | IEC61010-1: Over-voltage category II Protection Class II Pollution level II When using an optional AC adapter. |
|
| Conforming standard | Low Voltage Directive 2014/35/EU Standard EN61010-1 (with AC adapter) EMC Directive 2014/30/EU Standard EN61326-1 RoHS Directive 2011/65/EU Standard EN IEC 63000 |
|
| Applicable detectors | FP series (excluding FP-5000 series high resolution type and FP-5150), MF-3200 | |
| Accessory | Instruction manual Rubber foot Power cable for battery (equivalent to LC-0082) |
Option
| Model name | Product name | Remark |
|---|---|---|
| DF-0221 | Auto stop function | Integrated auto stop |
| DF-0222 | RS-232C communication function | ＊When selecting DF-0222, CAN communication cannot be used. DF0225 cannot be used at the same time. |
| LC-0860 | CAN interface cable | Cable for CAN commnucation, connector: D-Sub /9pin/male |
| DF-0223 | Remote box | |
| DF-0224 | High-speed output function | 10 ms (standard) --> 1 ms |
| DF-0225 | CAN integrated value output function | * As above |
| PS-P20023 | AC adapter | *Power cord is required. |
| VM1391-VM1700 | Power cord for AC adapter | 2m (for Japan） |
| CT-0673 | Panel mount fitting | Common for CT-6700 |
| CT-0675 | Protection handles | Common for CT-6700 |
| CT-0676 | Light shield | Common for CT-6700 |
