Overview of Digital Linear Gauge / and related products




Digital Linear Gauge Sensor

Optimum system can be developed to meet requirements by various types of linear gauge sensors such as ultra compact or general purpose usage in combination with peripherals and software. Adopting linear gauge system in all models provides excellent durability and enables measurement with high reproducibility and stable accuracy for long period of time compared with gauge with mechanical method.



Operation principle of Linear Gauge Sensor


Applications

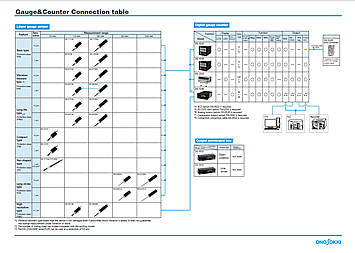

List of signal cable/accesory

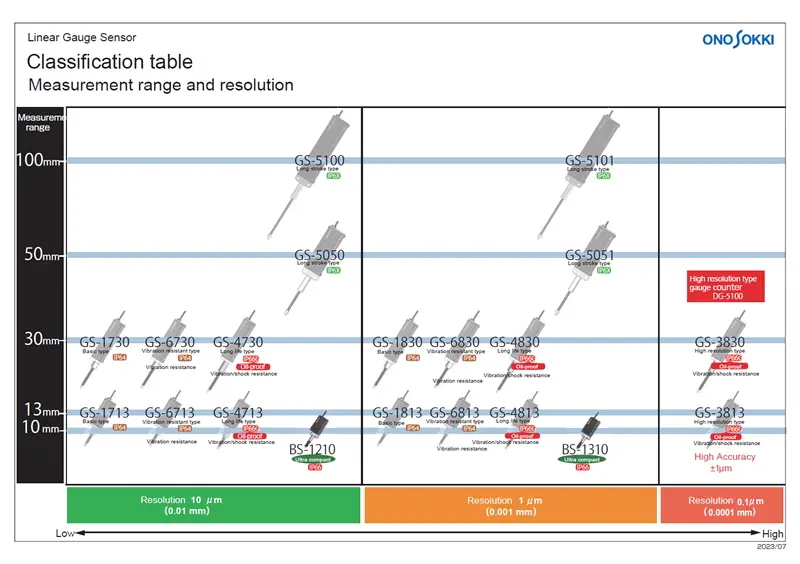

Linear Gauge Sensor

GS-7000 series
Pen-figured Linear Gauge
More details

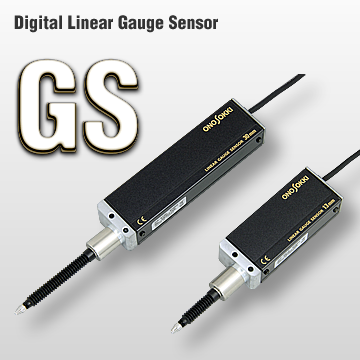

GSseries
Linear Gauge Sensor
More details
BS-1210
BS-1310

Baby sensor
More details
GS7710
DGseries
Features
Measurement range:10 mm
Resolution:1 (0.5)*2 µm
Indication accuracy:2 µm
Protection Class:IP 67
(GS-7710A/7710NA)
*2DG-2310/4320/4340/5100/3000
series in used.
Features
Measurement range : 13 to 100 mm
Resolution:0.1 / 0.5 / 1 /10 µm Many choices depending on your applications such as general purpose type, dust/splash-proof type, vibration resistant type which is suitable for in-line measurement under severe environment.
Features
The BS series ultra compact baby sensors enable measurement of dimensions, displacements and travels in high durability, stability and high accuracy. (IP66)
  BS-1210 BS-1310
Measurement range 10 mm
Resolution 10 μm 1 μm
Accuracy 3μm
(at 20 °C)
Protection Class IP 66
Number of strokes*2 30 million times
Applicable counters

DG-4140*
DG-4160*
DG-4190*
DG-4320/4340
DG-5100*1 (with AA-8910)
DG-2310
DG-3000 series
Applicable counters

DG-4120*/4240*/4280*
DG-4140*
DG-4160*
DG-4190*
DG-4320/4340
DG-5100*1(with AA-8910)
DG-2310
DG-3000 series
Click the each product for more details.

* Discontinued products
*1 Reqyured conversion cable

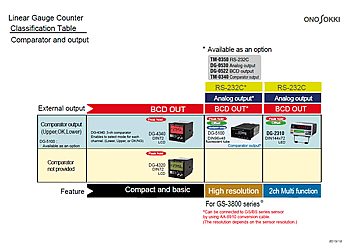

Linear Gauge Counter

DG-4320
BCD output type
More details
DG-4340
Comparator output type
More details
Features

BCD output
・Providing calculation functions of offset, factor, multiplication switching, number of decimal place etc.
・DIN72
・LCD display with backlight, 6-digit
・Equipped with external imputs (BCD) of Rest Hold

Features

BCD and comparator outputs.
・Providing calculation functions of offset, factor, multiplication switching, number of decimal place etc.
・DIN72
・LCD display with backlight, 6-digit
・Equipped with external imputs (BCD) of Rest Hold



Applicable sensor
Click the each product for more details.

DG-5100
High resolution type Digital Linear Gauge Counter
(for GS-3813/3830)
More details
DG-2310
2-channel digital gauge counter with multi function
More details
DG-5100
DG-2310
Features
The DG-5100 is a high-resolution gauge counter having integrated structure. This counter achieves input frequency at 3 MHz which is high speed of ten times compared to conventional counter. (equivalent to a spindle velocity of 300 mm/s at GS-3800 series)
The DG-5100 provides various calculation functions as standard such as condition memory, range (MAX value – MIN value) display, and offset value setting.
Features
2-channel input, calculating function of addition/subtraction, built-in comparator function, various output signals for external data processing (analog, comparator, BCD and RS-232C)
• 6-digit for numeric and 1 digit for polarity (-)
• Equipped with external input terminals for Reset, Hold, PeakHold and Key-Protect.

Applicable sensor
Applicable sensor
Click the each product for more details.

* Discontinued products
*1 Reqyured conversion cable


Related products

Signal converter Digital Printer
DG-0010/0020
Signal conversion box
More details
DA-4130
D/A Converter
More details
RQ-2110
Digital gauge printer

DG-0010/0020
DG-2310
RQ-2110
Features

Converts two-phase signal (TTL) from linear gauge sensors (GS/BS series) to signal of open collector or line driver.

DG-0010: For open collector output. Direct connection to the PLC.

DG-0020: For line driver output. Useful for long distance transmission more than 200 m.


Features

The DA-4130 D/A converter converts BCD signal (BCD 1-2-4-8) into analog signal (F.S. 0 to ±10 V voltage, 0 to ±16 mA current).

• Signal cable (AA-8101 sold separately) is required
Features

Exclusive printer for the DG-525/525H/825/925, and EG-225. Built-in calculation function enables to make histogram as well as maximum, minimum, average, standard deviation and so on.

• Timer input, statistical operation, pass-fail judgment, clock, two-way power supply
• Connection cable: AA-8301
Applicable counters
BS series
GS(Pen-shaped)
GS series
(excluding HS-3412*/3425* GS-3813/3830)
Applicable counters
DG-4120*/4240*/4280*
DG-4140*
DG-4320/4340
Applicable counters
DG-525*/525H/825/925
EG-225
Click the each product for more details.

* Discontinued products
