FZ series Mass Flow Detector

The FZ series flow detectors use the principle of the Coriolis force. They are capable of high-accuracy, continuous measurement of mass flow. The FZ-2000 series Mass Flow Detectors are used in combination with the FM series Flow Meters.


FZ-2000 series
Mass Flow Detector
Mass Flow Measurement System
FZ-2100 Standard flow rate type
FZ-2200 High flow rate type
詳細はこちら
Mass Flow Rate Detection System Wide flow rate range type 詳細はこちら

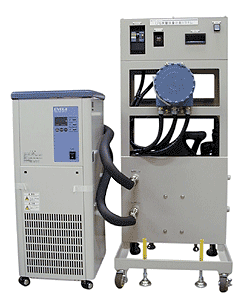

LPG Mass Flow Rate Detection System 詳細はこちら

(FZ-2100)

FZ-2100

(質量流量検出システム)

(LPG質量流量検出システム)

特長
■Capable of continuous measurement in high response and accuracy, being free from temperature, pressure or density.
■High measurement accuracy, up to 40:1 at ±0.1 % reading
■Available to measure density
特長
■Continuous measurement without being affected by temperature, pressure or density
■Wide measurement range (up to a ratio of 1000:1 within ±0.35% of reading accuracy)
■Density measurement enabled
■Function for removing air bubbles in fuel supply
■Provided an initial air purging device useful in replacement of a testing engine.
特長
■ Detects mass of LPG in high accuracy.
■Continuous measurement without being affected by temperature, pressure or density
■Density measurement enabled
測定項目
Flow rate, temperature, density
測定項目
Flow rate, temperature, density
測定項目
Flow rate, temperature, density
使用可能液体
Gasoline, light oil, kerosene, water, standard petroleum oils, alcohol fuels*
使用可能液体
Gasoline, light oil, kerosene, standard petroleum oils, alcohol fuels*
使用可能液体
LPG
適合表示器
FM-2500A Flow Meter
FM-1500 Flow Meter

適合表示器
適合表示器
↑ Click the each product for more details.

* :Optionally available


Signal Cable List



FP series Volumetric Flow Detector

FP series Volumetric Flow Detectors can measure volumetric flow rate of gasoline, light oil, kerosene, standard petroleum oils, methanol, ethanol or gasohol in combination with the FM/DF series Digital Flow Meter.



Small flow rate type Standard flow rate type
FP-213
Small flow rate type
詳細はこちら

FP-213S
Small flow rate/ low pressure loss type

詳細はこちら
FP-2140H
Standard flow rate type
詳細はこちら
FP-2240HA
Standard flow rate/ simultaneous measurement of temperature & pressure type
詳細はこちら
(FP-213) (FP-213S) (FP-2140H) (FP-2240HA)
特長
Click here to see the features
特長
Click here to see the features
特長
Click here to see the features
特長
Click here to see the features
測定項目
Flow rate
測定項目
Flow rate
測定項目
Flow rate
測定項目
Flow rate, temperature, pressure
使用可能液体
Gasoline, light oil, kerosene, standard petroleum oils, alcohol fuels*
使用可能液体
Gasoline, light oil, kerosene, alcohol fuels*
使用可能液体
Gasoline, light oil, kerosene, standard petroleum oils, alcohol fuels*
使用可能液体
Gasoline, light oil, kerosene, standard petroleum oils, alcohol fuels*
適合表示器
FM-2500A Flow Meter
FM-1500 Flow meter

DF-2200 On-board type Fuel Flow Meter
適合表示器
FM-2500A Flow meter
FM-1500 Flow meter

DF-2200 On-board type Fuel Flow Meter
適合表示器
FM-2500A Flow meter
FM-1500 Flow meter

DF-2200 On-board type Fuel Flow Meter
適合表示器
FM-2500A Flow meter
FM-1500 Flow meter

DF-2200 On-board type Fuel Flow Meter
↑ Click the each product for more details.

* :Optionally available



Flow detector with pressure loss correction function Large flow rate type
FP-2140S
Low pressure loss & ultra wide range, high accuracy & high resolution type

詳細はこちら
FP-215
Large flow rate type
詳細はこちら
FP-2250A
Large flow rate, simultaneous measurement of temperature and pressure type
詳細はこちら
(FP-2140S) (FP-215) (FP-2250A)
特長
Click here to see the features
特長
Click here to see the features
特長
Click here to see the features
測定項目
Flow rate, temperature*, pressure*
測定項目
Flow rate, temperature*, pressure*
測定項目
Flow rate, temperature, pressure
使用可能液体
Gasoline, light oil, kerosene, standard petroleum oils, alcohol fuels*
使用可能液体
Gasoline, light oil, kerosene, standard petroleum oils, alcohol fuels*
使用可能液体
Gasoline, light oil, kerosene, standard petroleum oils, alcohol fuels*
適合表示器

FM-2500A Flow Meter
適合表示器
FM-2500A Flow Meter
FM-1500 Flow meter
DF-2200 On-board type Fuel Flow Meter
適合表示器
FM-2500A Flow Meter
FM-1500 Flow meter
DF-2200 On-board type Fuel Flow Meter
↑ Click the each product for more details.

*: Optionally available



On-Board Volumetric Flow detector
FP-4135
Wide range & High accuracy type

詳細はこちら
(FP-2140S)
特長
Click here to see the features
測定項目
Flow rate, temperature
使用可能液体
Gasoline, light oil, kerosene, standard petroleum oils, alcohol fuels
適合表示器
FM-2500A Flow Meter
FM-1500 Flow meter
DF-2200 On-board type Fuel Flow Meter
↑ Click the each product for more details.





Signal Cable List

MF series On-Board type Fuel Flow Detector

The MF series fuel detectors are one unit type incorporating the FP-2104H for on-board measurement. Used in combination with the FM series, DF series Digital flow meter.

MF series On-Board Fuel Flow Meter

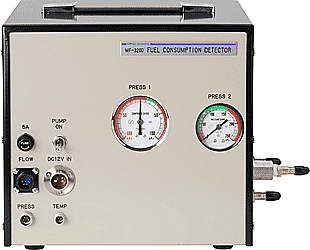

MF-3200
For Diesel engine
詳細はこちら
(MF-3200)
特長
■Compact/light weight
■A fuel cooling function is provided as standard
■Temperature/pressure sensor are provided as standard
■Error by pulsating flow, backward flow can be corrected by Rotation direction judging function.
測定項目
Flow rate, temperature, pressure
使用可能液体
Light oil
適合表示器
FM-2500A Flow Meter
FM-1500 Flow meter
DF-2200 On-board type Fuel Flow Meter
↑ Click the each product for more details.

*MF-2200 for gasoline engine was discontinued



FX series Mass-Burette type Flow Detector

FX series is a high precision, highly functional gravity flow meter which is unaffected by temperature-wise specific gravity variations. The fluid level variations of gasoline, light oil, kerosene, methanol*, ethanol*, and mixture fuel of alcohol and gasoline are detected by a high precision differential pressure transducer. *: Optionally available

FX-1100 series Flow Detector

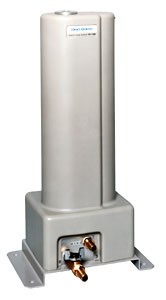

FX-1110
Bass-Burette type Flow Detector
詳細はこちら
FX-1120
Mass-Burette type Flow Detector
詳細はこちら
FX-1130
Mass-Burette type Flow Detector
詳細はこちら
(FX-1100series) (FX-1100series) (FX-1100series)
特長

■Instantaneous flow rate and accumulated flow rate are able to be measured by mass directly

■Corrections of temperature/density calculation are no longer necessary

■Wide measurable range and high precision flow rate measurement.

■Measurement precision unaffected by zero-point drift of the differential pressure transducer.

■Built-in air purging function to counteract the mixing air bubbles.

■Increased pressure and pressure feed are available as options

使用可能液体

Gasoline, light oil, kerosene, alcohol fuels*

使用可能液体

Gasoline, light oil, kerosene, alcohol fuels*

使用可能液体

Gasoline, light oil, kerosene, alcohol fuels*

測定範囲

0 to 10 g/s
(0 to 36 kg/h)

測定範囲

0 to 25 g/s
(0 to 90 kg/h)

測定範囲

0 to 50 g/s
(0 to 180 kg/h)

適合表示器

FM-2500A Flow Meter

適合表示器

FM-2500A Flow Meter

適合表示器

FM-2500A Flow Meter

↑ Click the each product for more details.

*: Optionally available


FX Series Signal Cable List



Flow Meter

Flow Meter Fuel Flow Meter
FM-2500A
Digital Flow Meter
詳細はこちら
FM-1500
Digital Flow Meter
詳細はこちら
DF-2200
On-Board Flow Meter
詳細はこちら
(FM-2500A) (FM-1500) (DF-210B/211B)
特長
■Used in combination with flow detectors FP, FX, or FZ series, selectable according to testing purpose. (FX series: FM-2500A only)
■Liquid temperature, pressure, and density can be measured and displayed as well as flow rate. (Density can be measured when in combination with the FX series.)
■Continuous measurement with wide range and high accuracy in combination with the FP series detector and FZ series detector.
■Enables calculation of measured data and displaying them as volumetric flow rate or mass flow rate.
■Density correction function is provided to display of the mass flow after correction of density based on temperature.
■Measurement items can be displayed on a LCD in various formats. (FM-2500A)
■Difference of flow rate can be output by using an addition/subtraction module (FM-0210A) with two measurement modules. ((FM-2500A only. FX series detectors cannot be used.)
特長
■Compact body optimum for on-board testing. Easy to install in a vehicle
■The flow rate/ temperature/ pressure can be measured with just one unit
■Analog output with high-speed response (with average processing function)
■CAN output (standard) and RS-2232C (option) are installed as communication system

■Total auto stop function is provided as an option.
■Wide power input range from 12 to 24 VDC corresponding to various test vehicles. AC voltage from 100 to 240 VAC is available by using the AC adapter (option).
適合流量検出器
FZ series
FP series
MF series
FX series
適合流量検出器
FZ series
FP series
MF series
適合流量検出器
FP series
MF -3200
適合流量検出器
FZ-0300A (for FZ series)
DF-0400A (for FP series)
FX-0400A (for FX series)
適合流量検出器
FM-0210A (FZ/FP series,
For addition/subtraction of two detectors)
適合流量検出器
FZ-0300A (for FZ series)
DF-0400A (for FP series)
↑ Click the each product for more details.


Peripherals

Peripherals
MF-113
Pressure Increase & Reduction unit
詳細はこちら
MF-015
Automatic Air Purging Tank
詳細はこちら
(MF-113) (MF-015)
特長
■The MF-113 is used to increase the pressure at the fuel supply side and to reduce the pressure at the detector output side.
■Can be used at 12 VDC.
特長
■The MF-015 enables automatically purging air which has been mixed in fuel.
適合流量検出器
FZ series
MF series
FX series
適合流量検出器
FZ series
MF series
FX series
↑ Click the each product for more details.
