Measurement/Analysis software

O-Solution

Support page Login/Download Download/ O-Solution Lite Application for Trial version

The O-Solution is software that can easily compare large amount of time-series data and analyze a wide variety of data. In addition to the frequency analysis such as FFT analysis, FFT tracking analysis, and Octave analysis, there are various functions such as Digital filter function. By connecting to the DS-5000 Data Station, you can perform measurement and analysis in real time smoothly switching in one application, which helps to improve work efficiency.





Features

• Compare/ analyze the data with wide sampling frequency from 10 μHz to 100 GHz
　
• Flexibly layout to compare the data in different formats or sampling frequency
　




• Support various file formats including other company's loggers

• Perform multiple data analysis (up to 1,000) simultaneously

• Further analysis on specified area with the marker function




• Easy data management with the search/sort function

• Automation of analysis with the external control function

• Other processing can be performed while analyzing or importing data.

• Smooth operation between measurement and analysis using the DS-5000 Data Station







Specification comparison

  OS-2000series O-Solution Remarks
Applicable sampling frequency 0.01 Hz to 20 MHz 10 μHz to 100 GHz Supporting various data
Number of analysis data per operation Max. 4 Max 1,000 -
Number of output files per operation 1 Max. 1,000 -
Data size 2 GB 1 TB Supporting huge data
Multi-thread processing - Available Multiple analysis processing in parallel
External control function - Available Auto-analysis processing



Case study

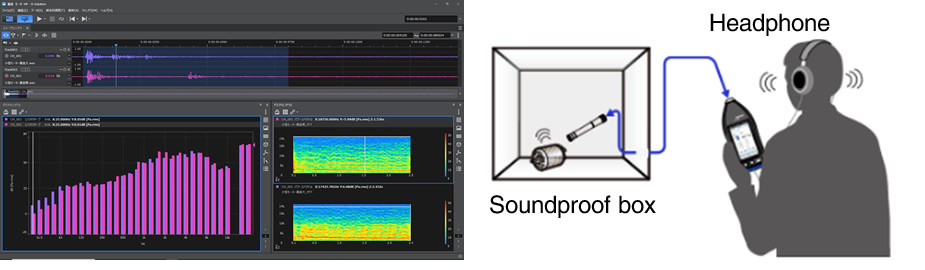

Sound analysis of motor with Sound level meter

The sound generated from a motor can be recorded with the Sound level meter and analyzed in detail with the O-Solution. By importing the data (wav format) recorded by the Sound level meter into the O-Solution, playback of sound, frequency analysis, and Octave analysis can be performed on a PC.

Model Product name Qty
OS-5100 Platform 1
OS-0522 FFT analysis function 1
OS-0524 Octave analysis function 1
*The LA-0704 sound recording function of High performance Sound level meter, LA-7000 series is required.

Analyzing bench data

It enables to analyze multiple channels' data such as motor shaft torque, motor rotation speed, engine shaft torque, dynamo rotation, engine rotation, and torque command value.
Displaying the entire waveform or the enlarged waveform of recorded data, searching data are available. The large volumes of time series data can be easily analyzed with using various calculation functions such as event counter, resampling, moving average, effective value calculation.

Model Product name Qty
OS-5100 Platform 1

Automatic measurement / analysis using external control function

Using the library for the external control function (O-Step API), the O-Solution can be controlled from the user's application via TCP/IP. It enables to automate repetitive tasks and simplify analyzing large volumes of data.

Model Product name Qty
OS-5100 Platform 1
OS-0522 FFT analysis function 1
OS-0510 External control function 1
*The DS-5000 (Hardware) is required when acquiring data.
The option is required when performing other than FFT analysis.

Demonstration of automatic measurement / analysis using the external control function
