Overview of Engine Tachometer and related products
Measurement example: measuring rotation of a gasoline engine

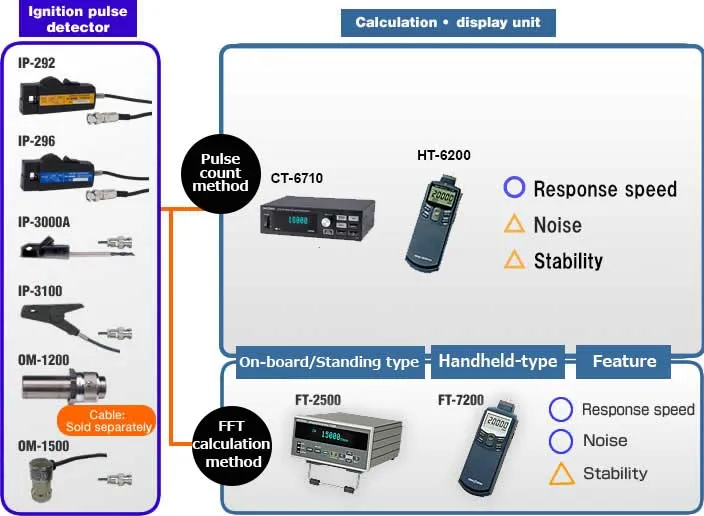

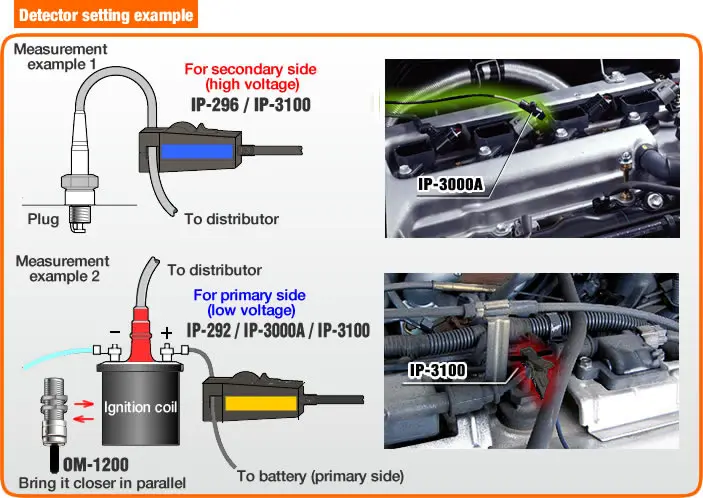

Method 1:Using ignition pulse (1)

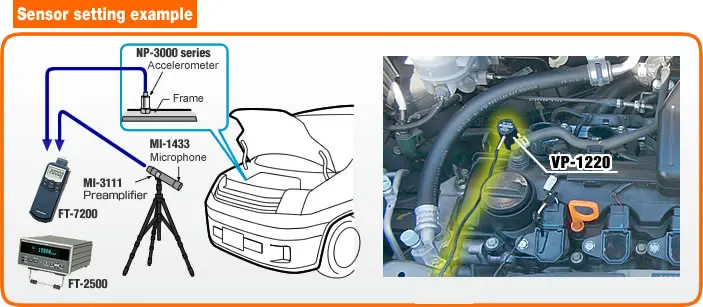

Method 2: Using vibration or sound from an engine.

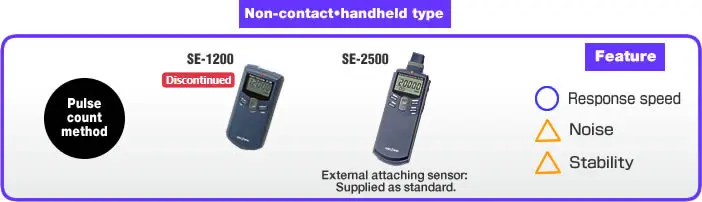

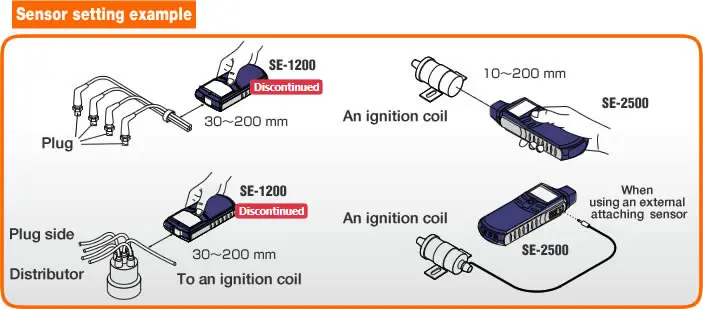

Method 3:Using ignition pulse (2) non-contact measurement
*It may not be measured or may be changed the measurement range depending on the engine type. For more details, please contact your nearest distributor or send us an e-mail, overseas@ONO SOKKI.co.jp
Measurement example: measuring rotation of a diesel engine

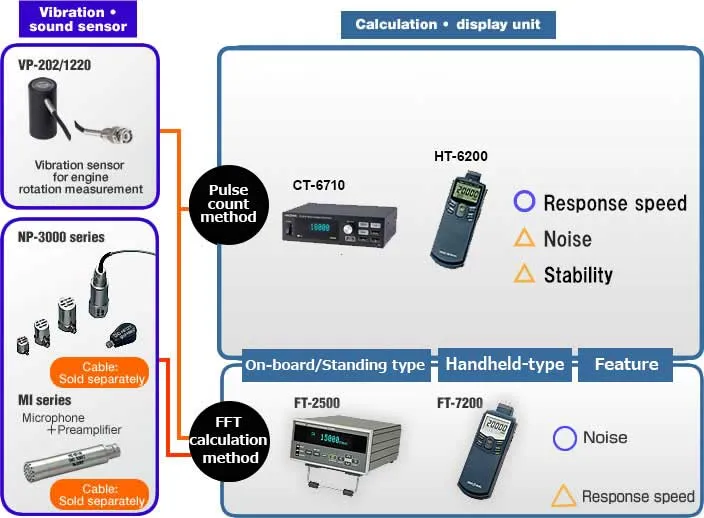

Method1:Using vibration and sound from an engine

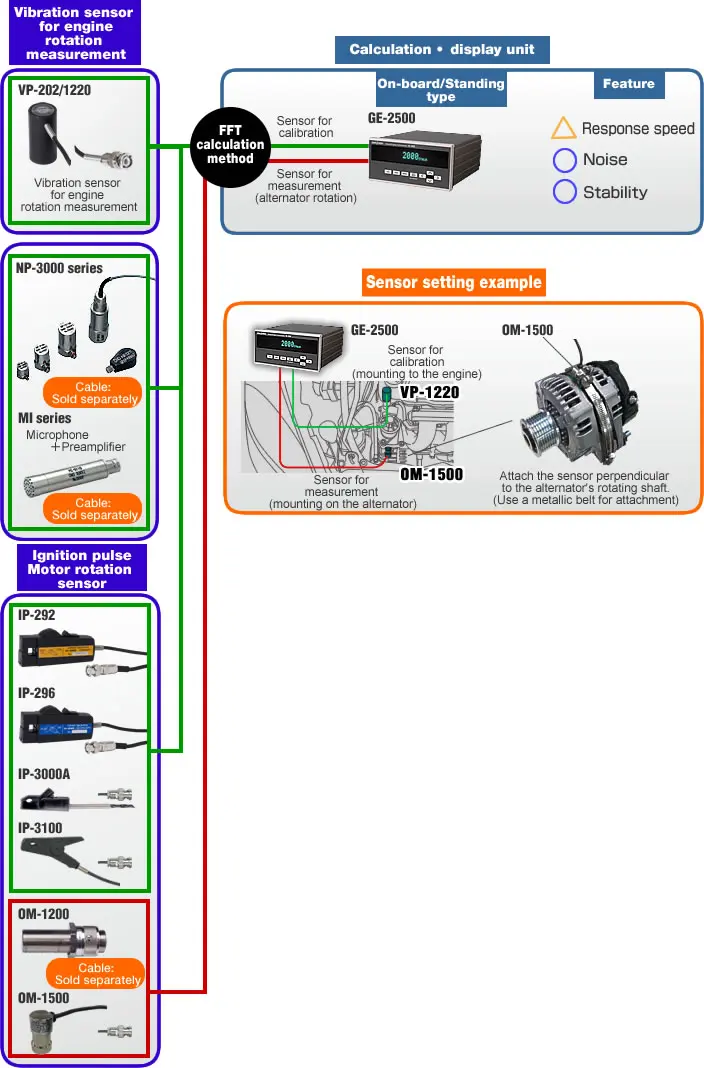

Method2:Using alternator rotation (Calibration sensor is required)
*It may not be measured or may be changed the measurement range depending on the engine type. For more details, please contact your nearest distributor or send us an e-mail, overseas@ONO SOKKI.co.jp
Measurement example: Measuring rotation of an EV/HEV

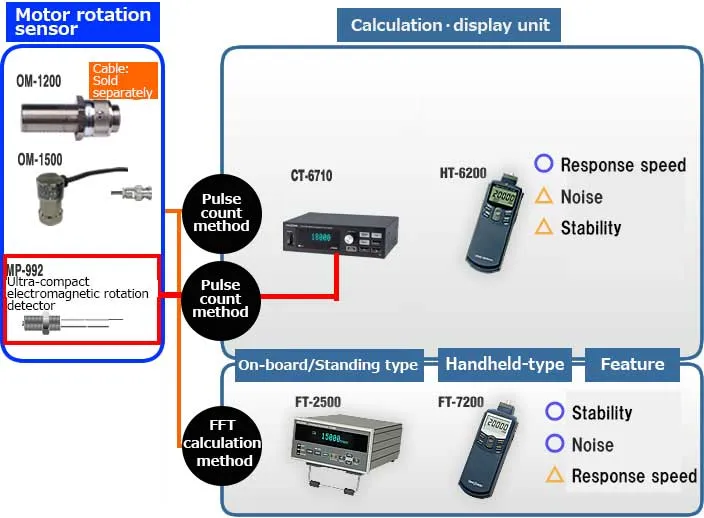

Method1: Using magnetic flux leakage from a motor
Product list of Engine tachometer
A gasoline engine rotation is measured mainly by detecting ignition pulses. By improvement of an automobile performance in recent years, a sensor with high sensitivity is more and more required for the ignition pulse detection.
Detector for gasoline engine | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
||||||||||
0 to 10,000 (r/min) | 0 to 10,000 (r/min) | Maximum cord length to attach: φ5mm | Maximum cord length to attach: φ10mm | 400 to 10,000 (r/min) | ||||||||||
CT-6700 HT-6200 FT-2500/FT-7200 |
CT-6700 HT-6200 FT-2500/FT-7200 |
CT-6700 HT-6200 FT-2500/FT-7200 |
CT-6700 HT-6200 FT-2500/FT-7200 |
CT-6700 HT-6200 FT-2500/FT-7200 |
Detector for a gasoline and diesel engine/detector for a diesel engine
This type of sensor detects rotation mainly by the vibration different from the ignition pulse sensor which detects rotation by the ignition pulse. The diesel engine rotation detector CP-044 detects vibration caused by the reciprocating up and down movement of the engine’s piston at the time of fuel injection.
Detector for a gasoline and diesel engine/detector for a diesel engine | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
||||||||||
Frequency range 5 Hz to 4 kHz ±0.5dB 5 Hz to 8kHz ±3dB |
See the product page for the NP-3000 series. | 500 to 10,000 (r/min) | 500 to 10,000 (r/min) |
400 to 6,000 (r/min) Maximum cord length to attach: φ4 to φ8 mm |
||||||||||
FT-2500/FT-7200 | FT-2500/FT-7200 | SE-2500A |
CT-6700 FT-2500/FT-7200 |
GE-1400 | ||||||||||
*The VP-1210 and the VP-1220 are high-sensitivity types of the VP-201 and the VP-202. Please make sure of the rotation detection by a demonstration device before you purchase. |
Handheld type engine tachometer
We provide various kinds of handheld type engine tachometers from a simple tachometer to multifunctional ones for gasoline engine, diesel engine and gasoline/diesel engine. You can choose the suitable detector among them according to your need. (*There is a possibility to cause unstable measurements or inaccurate detection depending on the engine type. Please try a demonstration device before you purchase. For more details, please contact your nearest distributor or send us an e-mail. overseas@ONO SOKKI.co.jp)
Handheld type engine tachometer | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
||||||||
120 to 20,000 (r/min) | 400 to 8,000 (r/min) | 120 to 20,000 (r/min) |
Frequency range: 250Hz 500Hz 2kHz |
||||||||
VP-201/1210 |
CP-044 |
IP-292/296 OM-1200/OM-1500 IP-3000A/IP-3100 TTL signal output sensor (BNC) |
|
Tachometer
These tachometers display rotation speed detected by detectors for engine. We provide various types of tachometers; tachometer with rotation control function, tachometer which displays the number of rotations by sound or vibration.(*There is a possibility to cause unstable measurements or inaccurate detection depending on the engine type. Please try a demonstration device before you purchase. For more details, please contact your nearest distributor or send us an e-mail. overseas@ONO SOKKI.co.jp)
Tachometer | ||
---|---|---|
CT-6700 High response measurement, |
FT-2500 Advanced tachometer Use of FFT technology |
GE-2500 Diesel engine tachometer |
120 to 20,000 (r/min) 0 to 99,999 (r/min) |
250Hz to 10kHz | |
IP-292/296/3000A/3100 OM-1200 VP-202/1220 MP-9100/981 LG-9200* |
IP-292/296/3000A/3100 OM-1200/1500 VP-202/1220 Accelerometer (NP series) Magnetic flux leakage sensor (FT-0501) Current probe Laser reflection fiber sensor (FT-0701) etc. |
For calibration IP-292/296/3000A/3100 VP-202/1220 Accelerometer (NP series) Cigarette lighter socket sensor (FT-0801) Microphone / preamplifier |
