Torque Meter          Quality inspection

A-2-3       Evaluating torque characteristic of hinge at OA equipment, cell phone etc.

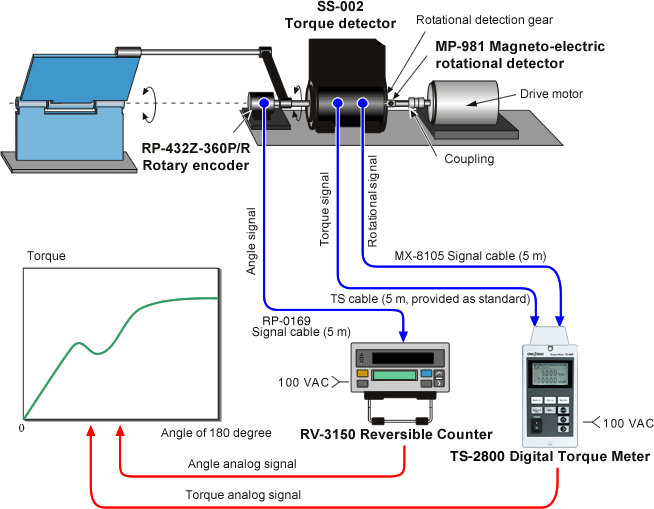

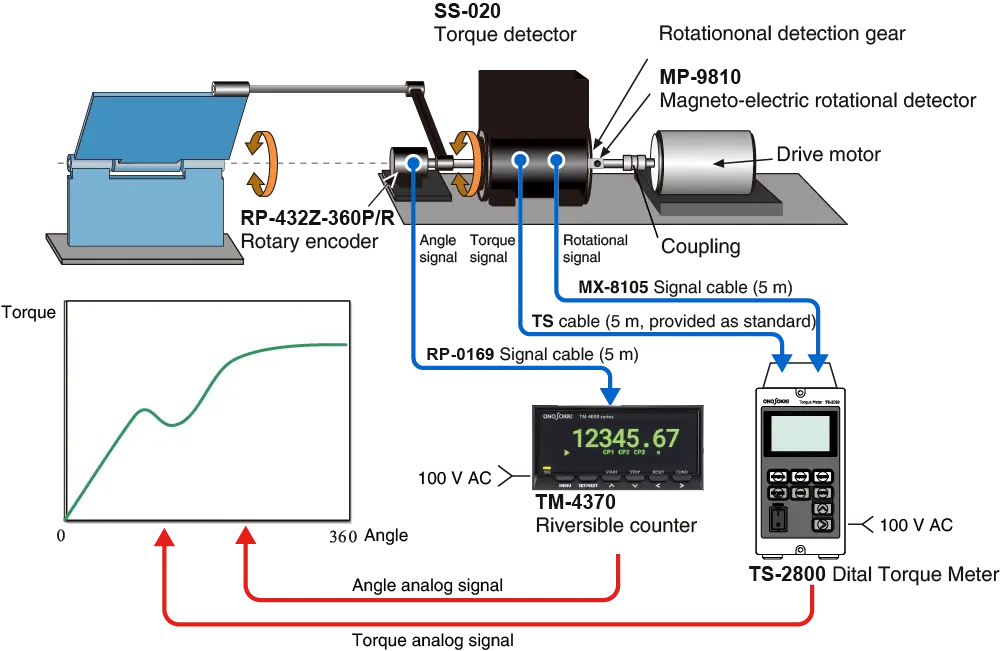

  • This example shows how to measure torque characteristic of hinge used in various fields; home appliances such as a rice cooker, a microwave, OA equipment including a fax or photo copy machine, a cell phone or note PC. This application is effective for automating and laborsaving as followings.
    • Control of power in opening and closing
    • Measurement of changing hinge characteristic after a long period of use over ten thousand times of open-close tests
  • The lineup of the SS series torque detectors consists of 13 models from 0.2N·m to 2000N·m. Suitable model can be selected depending on the torque capacitance of a measurement object.
  • Please set up an intermediate bearing between a torque detector and a work not to be subjected to radial or thrust load.
  • The TS-2800 displays measurement value digitally, and has external output of analog voltage, BCD or RS-232C. Compact-designed and easily built in a measurement equipment.

Product list

  Model Product name Remarks Qty
1 SS-020 Torque detector   1
1 MP-9810 Magneto-electric rotational detector   1
1 MX-8105 Signal cable (5 m)   1
1 TS-2800 Digital Torque Meter   1
1 TM-4370 Reversible counter   1
1 RP-432Z 360PR Rotary encoder   1
1 RP-0169 Signal cable (5 m)   1

Remarks
Coupling is user preparation.
