Applications Rpm & Speed

Rpm & Speed          Roller encoder

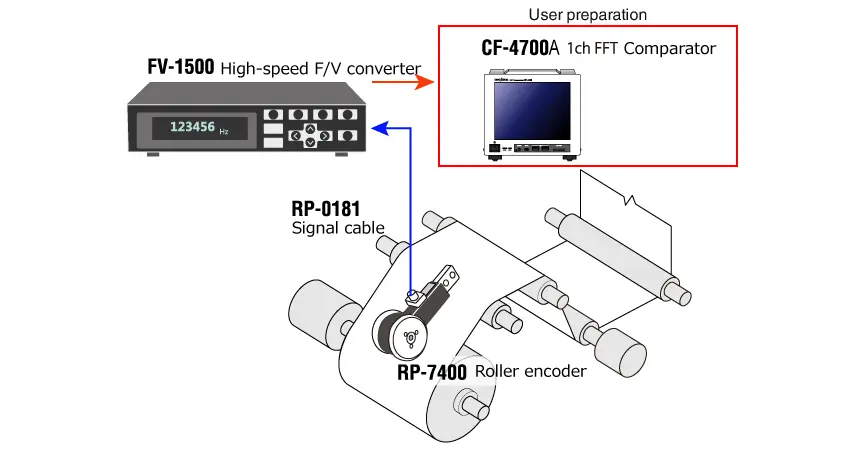

C-1-5       Analyzing the fluctuated speed (high-speed response type)

  • The FV-1500 calculates a rotational speed or speed by the time of pulse signal in a period from rotary encoder, and then converts this signal into analog signal to obtain 10V/full-scale. (Setting for full-scale is user selectable.)
  • Since the FV-1500 can output voltage or current with high-speed response of the time in a period of input signal+3.5μs, it enables to analyze the fluctuated speed with high-accuracy that occurs in startup.
  • The FV-1500 is equipped with deflection output function of center frequency at ±5V.
  • Measurement range: 0.2 Hz to 320 kHz

Product list

  Model Product name Remarks Qty
1 FV-1500 High-speed F/V convertor   1
2 RP-7400 Roller Encoder for Speed : 120 P/R or 1200 P/R 1
3 RP-0181 Signal cable (5 m)   1

Remarks
The CF-4700A performs frequency analysis of the deviation output and block comparison of amplitude levels of the deviation spectrum.
In this way, quality inspection is established.
