C-1-4 Measuring the line speed and recording the fluctuation of line speed

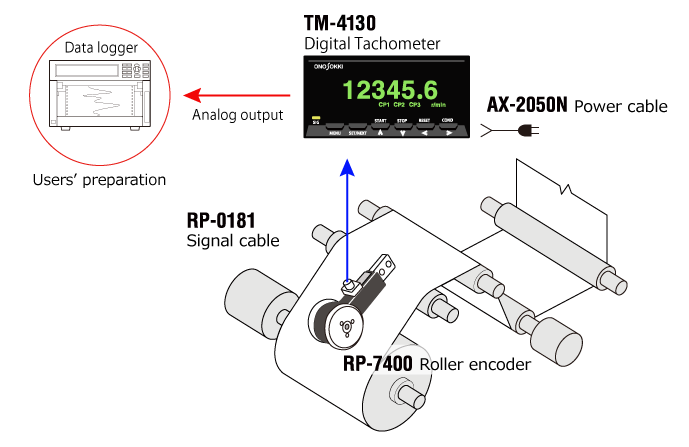

- This example shows how to measure and indicate the line speed of belt conveyor and similar equipment at the unit of m/min. This configuration also can record the fluctuation of line speed to the recorder using analog output function of the Digital Tachometer (TM-4130).
- The RP-7400-120 P/R, the roller encoder for medium-speed, is applicable.
Product list
Model | Product name | Remarks | Qty | |||
---|---|---|---|---|---|---|
1 | TM-4130 | Digital Tachometer | 1 | |||
2 | RP-7400 | Roller Encoder | for Speed : 120 P/R | 1 | ||
3 | AX-2050N | Power cable (3 m) | 1 | |||
4 | RP-0181 | Signal cable (5 m) | 1 | |||
|
