Applications Rpm & Speed

Rpm & Speed          Roller encoder

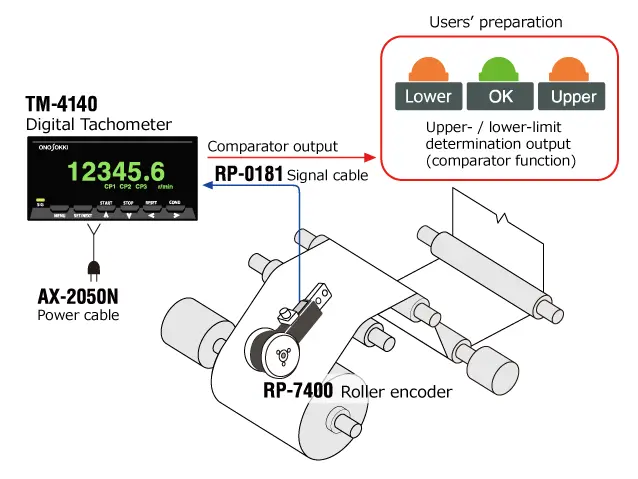

C-1-2       Measuring the line speed at medium-speed and alarming when the line speed exceeds the set range (measurement range 0.1 to 200 m/min)

  • This example shows how to measure and indicate the line speed of belt conveyor and similar equipment at the unit of m/min. This configuration can also make an alarm when the speed is over its set value, or even stop the movement of machine itself using comparator output function.
  • The compensating function of Digital Tachometer (TM-4140) enables to set the decimal point as 000.000, 00000.0.
  • Measurement range: 0.1 to 200 m/min (for the use at medium speed)

Product list

  Model Product name Remarks Qty
1 TM-4110 Digital Tachometer   1
2 RP-7400 Roller Encoder for Speed : 120 P/R or 1200 P/R 1
3 AX-2050N Power cable (3 m) 1
4 RP-0181 Signal cable (5 m)   1

Remarks
