Applications Rpm & Speed
Rpm & Speed Roller encoder

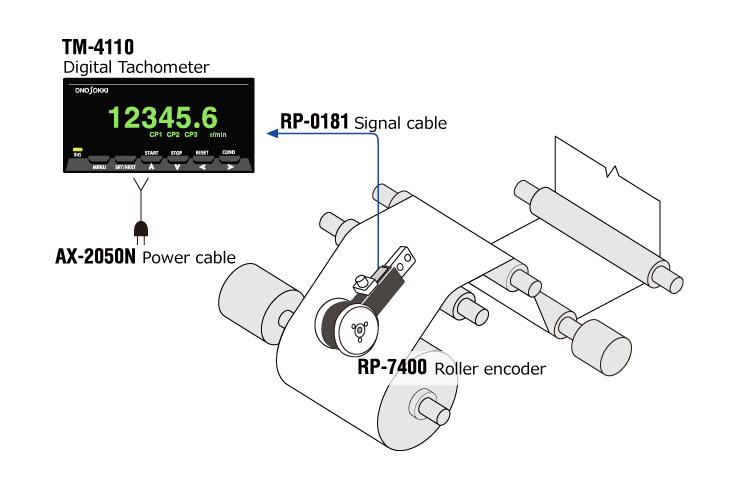

C-1-1 Measuring the line speed at low-speed (measurement range 0.01 to 200 m/min)

- It measures and indicates the line speed of belt conveyor and similar equipment at the unit of m/min.
- The compensating function of the Digital Tachometer (TM-4110) enables to set the decimal point as 00000.0 or 000.000.
- Measurement range: 0.01 to 200 m/min (for use at low-speed line)
Product list
Model | Product name | Remarks | Qty | |||
---|---|---|---|---|---|---|
1 | TM-4110 | Digital Tachometer | 1 | |||
2 | RP-7400 | Roller Encoder | for Speed : 120 P/R or 1200 P/R | 1 | ||
3 | AX-2050N | Power cable (3 m) | 1 | |||
4 | RP-0181 | Signal cable (5 m) | 1 | |||
|
