Detection of rotational speed from
rotational shaft
rotation A-4-2
Measuring and indicating rotational speed of
shaft, outputting the measurement results to printer or
sequencer

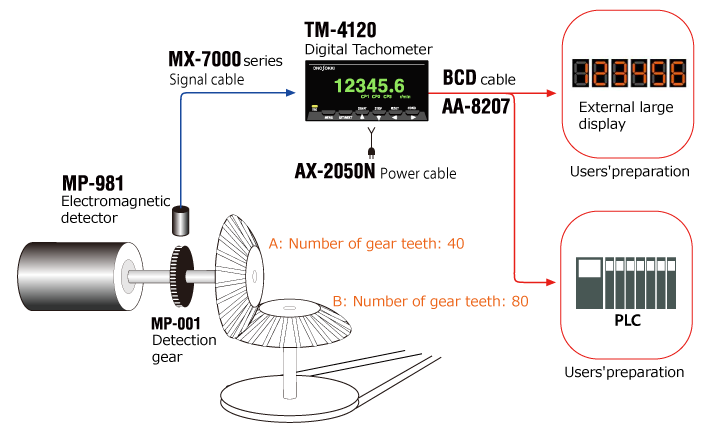

The TM-4120 can print measured results and
export data being connected to sequencer with BCD
output, as well as measuring and indicating rotational
speed from a shaft including motor. The TM-4120 can also
calculate and indicate the rotational speed of gear
shaft B by setting the number of detection gear A/
number of detection gears B = 40/80=0.500.
