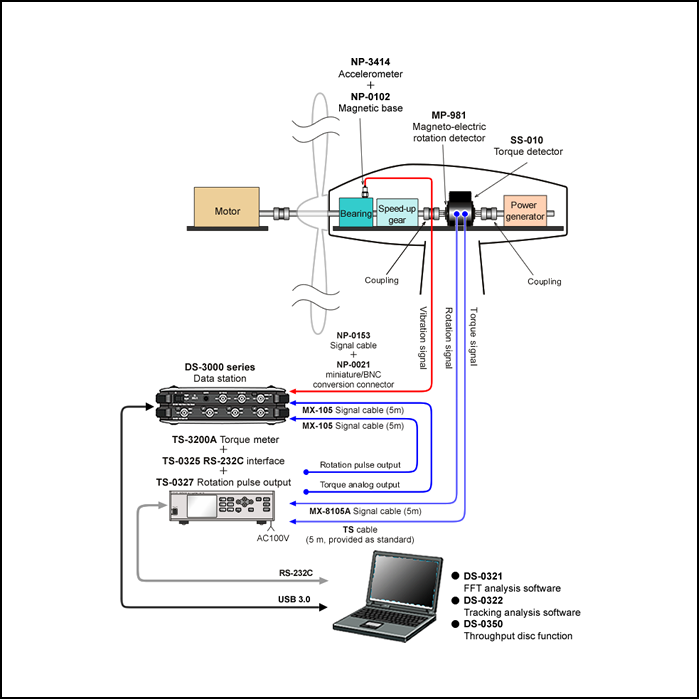

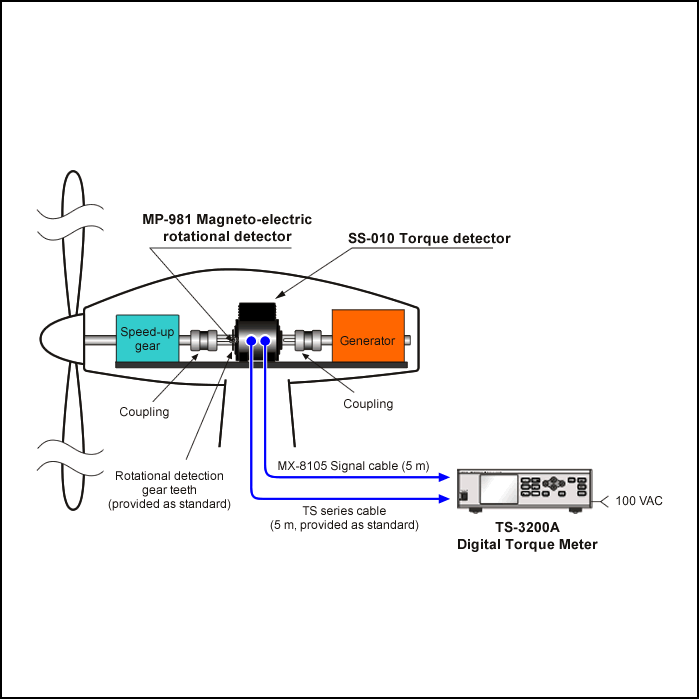

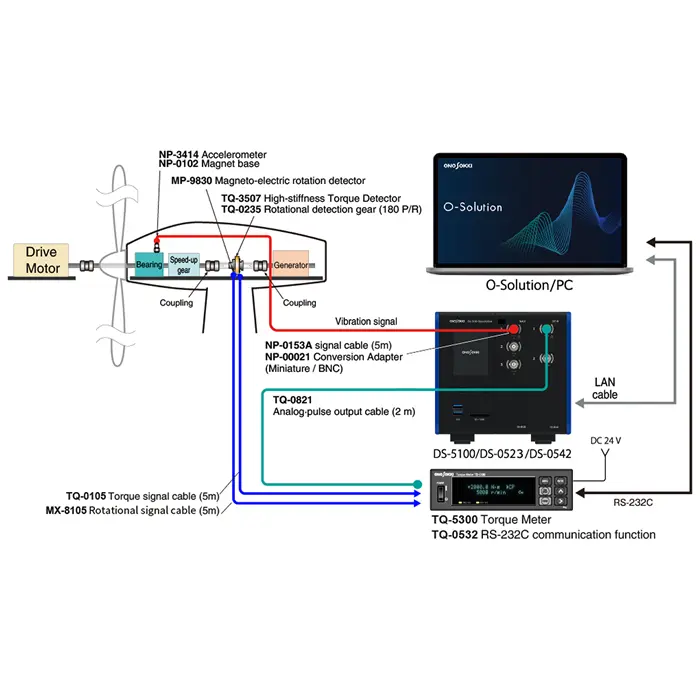

In this application, rotational power (torque) enables the measurement and monitoring of energy efficiency, which varies with angle or material of blades for wind power generator.

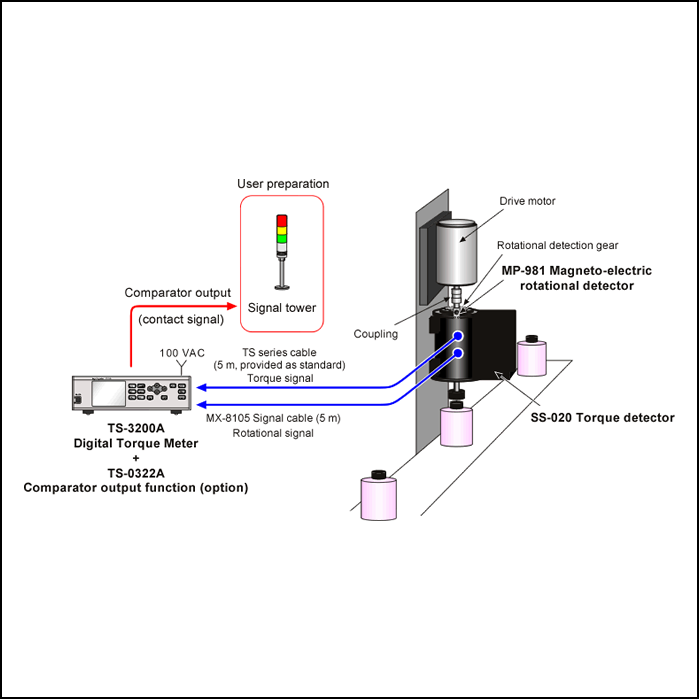

This example shows how to measure and monitor tightening force of lids of bottled drinks and cosmetics which are continuously carried on production line by using clamping torque.

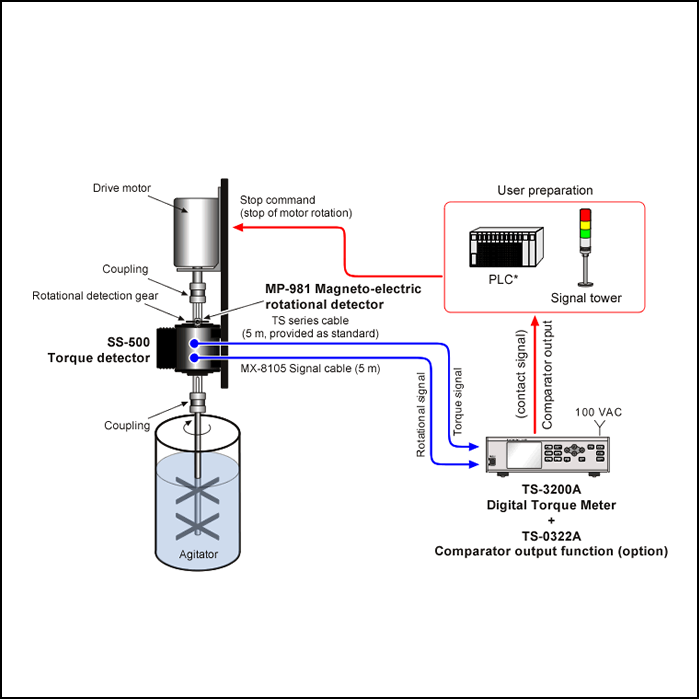

The viscosity of liquid such as chemical agent or resin is changed when chemical reaction (polymeric) is brought about. This viscous change can be used as agitation torque value to know the level of chemical reaction.

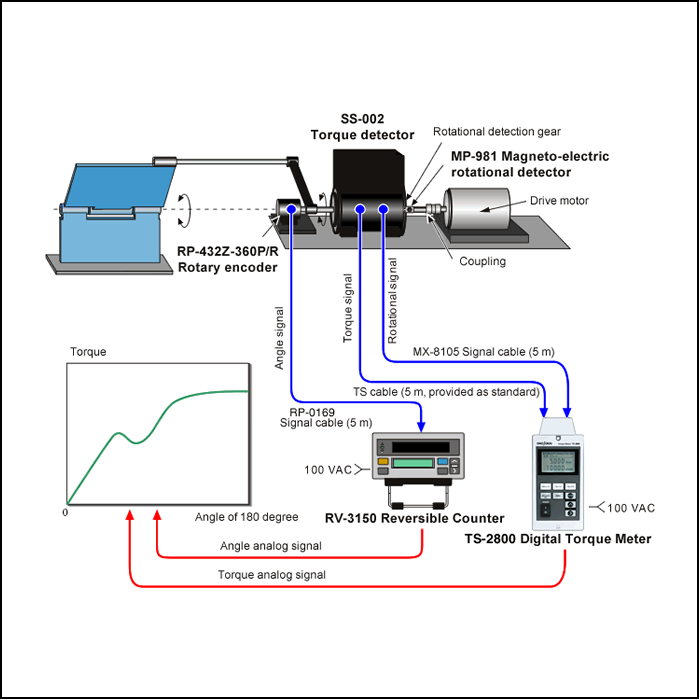

This example shows how to measure torque characteristic of hinge used in various fields; home appliances such as a rice cooker, a microwave, OA equipment including a fax or photo copy machine, a cell phone or note PC. This application is effective for automating and laborsaving such as control of power in opening and closing, measurement of changing hinge characteristic after a long period of use over ten thousand times of open-close tests.

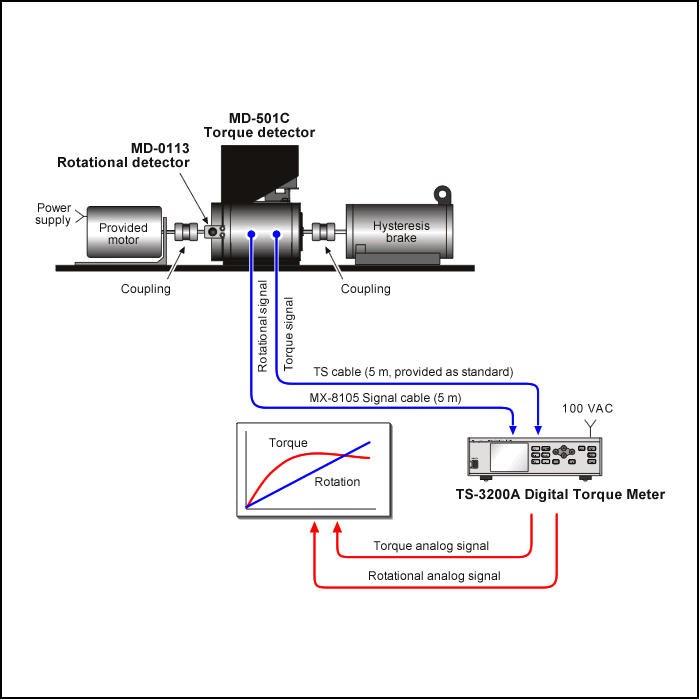

This example shows how to measure and evaluate torque characteristic of precision miniature motor used in various industrial fields; AV equipments such as a camcorder, DVD player and OA equipments including a printer, fax, or HDD, and electric installation for automobile.

This example shows how to measure and display as graphs the characteristics of brushless motor of torque, rotational speed, current, voltage. TThe efficiency performed by internal calculation also can be displayed.

This application enables measurement of low-capacity torque from 0 to 2 mN・m with high accuracy. The detector is a vertical structure to minimize errors from shaft center misalignment.

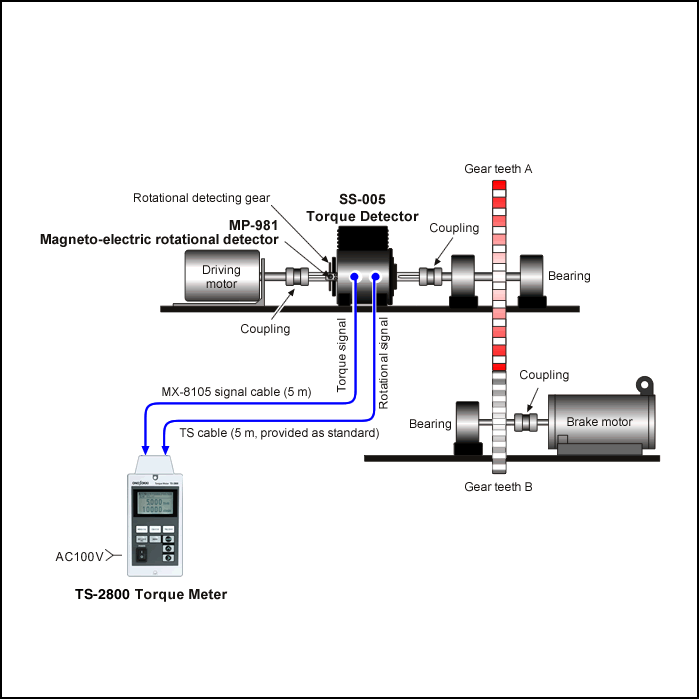

This example shows how to perform an endurance test of rotating measurement object such as gear, rubber belt or chain for a long time while being applied load as same as real operating status. This result is helpful in analyzing wear or deformed state of parts.
