Application
Measurement applications of HEV/EV
Rotation measurement of motor

Japanese Chinese

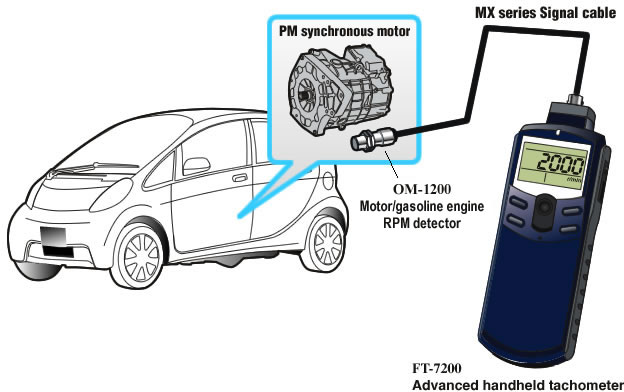

In measurement of motor rotation of HEV/EV (Hybrid electric vehicle / Electric Vehicle) by using reflective mark and electromagnetic sensor, it requires a significant modification and processing the vehicle. This application shows the advantages of using the OM-1200 ignition pulse detector and the FT-7200 advanced handheld tachometer. They detect magnetic flux leakage from the motor and enable speed measurement even during test running without modification and processing on the vehicle.

Configuration

	Model name	Product name	Remarks
1	OM-1200	Motor/gasoline engine RPM detector	Electromagnetic type Operating temperature range :-40 to 80 °C Outer dimensions: M16 x 1 L=55 Weight: 90 g
2	FT-7200	Advanced handheld tachometer	Measures rotation speed using noise, vibration or fluctuation of magnetic flux from rotating objects such as motors or the others via FFT calculation.
3	MX-005	Signal cable (option)	5 m
3	MX-010	Signal cable (option)	10 m

* *To see details of the each product, click the model name.
