CF-3600A (4-ch)/3800A (8-ch) is an all-in-one type portable
FFT analyzer with touch panel computer utilizing
simultaneous analysis and recording. The lightweight
and all-in-one configuration makes using the unit on site easy
and efficient. With its portability and built-in sensor
amplifier, CF-3600A/CF-3800A provides a less restricted,
more efficient measurement and analysis while still
achieving high accuracy in noise/vibration.
CF-3600A/CF-3800A features a variety of measurement applications
such as natural frequency measurement by frequency response
function, tracking analysis for evaluating the dynamic
characteristics of rotating machines and engines, real-time
octave analysis which is effective for acoustical analysis and
throughput disk function enabling direct recording of waveform
data to the built-in hard disk drive of CF-3600A/CF-3800A
directly. In addition, 1/N real-time octave, octave tracking and
field balancing analyses can be performed by installing optional
software.
Also, by using installed secondary processing software such
as OC-1000 Graph creating software and commercially available
software, you can make presentable report easily with the
measured and analyzed data.
|
Features
-
Simply plug AC cable and sensors to CF-3600A/3800A, it is ready
to start measurements. The lightweight and all-in-one
configuration makes using the unit on site easy and efficient.
-
15-inch color touch panel monitor provides direct
operation and eliminates the need of a keyboard and mouse. It
makes the measurement on site going on smoothly with no stress.
-
Adopting 24-bit A/D converter, it ensures high
accurate and reliable data analysis with wide dynamic range of
100 dB which may be one of the most advanced performances in the
world. The stored data can be analyzed off-line on main unit of
CF-3600A/3800A. Moreover, advanced and diverse analyses such as
multi-frequency range analysis, digital filter processing and
fluctuating sound analysis can be performed by using PC analysis
software.
-
Tracking analysis*1 for
evaluating the measurement of noise/vibration and dynamic
characteristics of rotating machine or engine, real-time
octave analysis*2 which is effective for
acoustical analysis, throughput disk function*3,
which enables direct recording of waveform data to built-in hard
disk drive. Further, 1/N real-time octave analysis, octave
tracking analysis and filed balancing analysis also can be
performed by installing optional software. The recorded data is
stored by the extension of ORF, Ono Sokki’s original file
format, and it can be transformed into the WAV, DADISP, MATLAB
and UFF by using file export function*3.
Moreover, CF-3600A/3800A can analyze the recorded data with
multiple applications.
-
-
-
*1: Installed as standard to
CF-3600AT/3800AT. Can be installed to CF-3600AR/3800AR as an
option.
*2: Installed as standard to CF-3600AR/3800AR. Can be
installed to CF-3600AT/3800AT as an option.
*3: Installed as standard to
CF-3600AT/3800AT,CF-3600AR/3800AR
-
CF-3600A/3800A dramatically improves the
measurement performance and efficiency with built-in backup
battery which ensures the data will never the lost in the event
of a power failure.
-
Moreover, by using installed secondary processing
software such as OC-1000 Graph creating software and
commercially available software, you can make appealing report
easily with the measured and analyzed data.
(*Please make sure to install
or setup the commercially available software or other instruments for PC
by customer’s responsibility. We are not responsible for any trouble or
failure related to the installing, setup or compatibility with
software.)
Frequency response function
measurement
|
|
CF-3600AT、CF-3600AR
CF-3800AT、CF-3800AR
Resonance may cause the chatter vibration of robot or machine
tool, or noise/vibration of vehicle and home appliance. For the
analysis of resonance, the most popular method is frequency
response function measurement of the object by using impulse
hammer. As neither attaching excitation tool to the structure
nor long measurement time is required, excitation by the impulse
hammer is the most ideal method for on site measurement
including trouble shooting. Maximum of 8-ch* simultaneous signal
processing, at 40kHz range and 6400-point frequency analysis can
be performed.
* When CF-3800A or CF-3600A has an
optional CF-0364 4-ch optional expansion unit. |
 |
| |
|
Tracking analysis
|
|
CF-3600AT、CF-3800AT
Rotating machinery such as engine or compressor must cover wide
range of rotation speed from very low to high speed. For those
rotation machineries, resonance which is generated by rotation
speed and natural frequency of the each component (parts such as
rotation shaft, gear, blacket etc.) will be the most significant
problem. In case of tortional vibration in large power
generators and the like, resonance creats great vibration
excitation energy that exceeds the tolerance of the machinery
and can cause serious accident to be destroyed. When the
rotating machinery makes vibration at a certain rotation speed,
the rotation tracking analysis is one of the effective method to
identify the rotation speeds at which rotating parts generate
the noise/vibration, and how many times of the frequency
component (order) of noise/vibration are generated. |
 |
| |
|

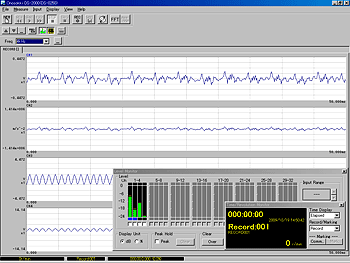

Throughput disk function
|
|
CF-3600AT、CF-3600AR
CF-3800AT、CF-3800AR
With the throughput disk function,
it can directly record original signal waveform to
CF-3600A/CF-3800A at a maximum of 8-ch*. The recorded data not
only can be recalled and analyzed by CF-3600A/3800A via thourhput
disk function, but also can be performed in advanced
and diverse analyses such as multi-frequency range analysis,
signal processing by digital filter with PC analysis software.
* When CF-3800A or CF-3600A has an
optional CF-0364 4-ch optional expansion unit. |
 |
|
■Maximum
recording time at AD conversion at 16-bit data only.
| Frequency range |
CF-3600A |
CF-3800A |
| 40 kHz |
87 minutes |
43 minutes |
| 20 kHz |
175 minutes |
87 minutes |
|
| |
|
File export function
|
|
CF-3600AT、CF-3600AR
CF-3800AT、CF-3800AR
Using this file exort function,
files stored by the throughput disk function in the extension of ORF format can be transformed into the WAV, TEXT, DADISP, MATLAB
and UFF. Moreover, it can export them to other software for
secondary processing. |
| |
|
Real-time octave analysis
|
|
CF-3600AR、CF-3800AR
In order to solve the noise problem, the frequency analysis is
required. Octave analysis has long been used as noise analysis.
An octave represents that frequency with ratio of 1:2 to the
frequency that is, double the frequency. The human ear senses
sound in geometric progressions to the frequency. In view of
this feature, a series of octave bands based on 1kHz frequency
has been standardized. The sound pressure of each band is
obtained through the standardized band-pass filter. The octave
band based on 1 kHz frequency is called the 1/1 octave band,
while the bands formed by dividing into third are called 1/3
octave bands. Real-time octave analysis software can perform
simultaneous frequency analysis with maximum of 8-ch*.
* When CF-3800A or CF-3600A has an
optional CF-0364 4-ch optional expansion unit. |
 |
| |
|
1/N Real-time octave analysis
|
|
Option:DS-0224
By adding optional software of
DS-0224 1/N real-time octave analysis function to
CF-3600AR/CF-3800AR, the signal power of noise/vibration can be
analyzed and displayed as 1/6, 1/12, 1/24 real-time octave band.
Simultaneous analysis from 0.701Hz to 17.20kHz (1/24 octave) can
be performed. Also DS-0224 can simultaneously measure the
following four values; maximum value, minimum value, power
average value and power sum value.
CF-3600A/2800A applicable channel
| 1/6 octave bands |
Ch1 to ch4(CF-3600A)
Ch1 to ch8(CF-3800A) |
| 1/12, 1/24 octave bands |
Ch1 and ch2 (CF-3600A)
Ch1, ch2, ch5 and ch6 (CF-3800A) |
* DS-0223 1/1 and 1/3 real-time
octave analysis software is required in the use of DS-0224.
|
 |
| |
|
Octave tracking analysis
|
|
Option:DS-0243
Adding optional software of DS-0243 octave tracking analysis
function enables CF-3600AR/CF-3800AR to perform octave tracking
analysis. This software can analyze and display the level trend
of each band for each rotation speed after input of rotation
data and retrieving an each fixed rotation as real-time octave
analysis data.
* DS-0223 1/1 and 1/3 real-time
octave analysis software is required in the use of DS-0243. |
 |
| |
|
Field balancing software
|
|
Option:DS-0227
The 1st order vibration will become large by the unbalanced
phenomenon of rotation. When the rotation speed is changed with
unbalance, the resonance may be generated and it is so
dangerous. The unbalance must be corrected. However, the
conventional vector calculation method of drawing a vector graph
and performing vector calculations takes a long time, making it
difficult to carry out on site field balancing. DS-0227 filed
balancing software can calculate easily single plane for one
condition, single plane for two conditions, and two planes for
two parameters of field balancing. |
 |
Outline of specifications
| The number
of input channels |
4-ch (CF-3600A)
8-ch (CF-3800A) |
| Input
connector |
BNC (CO2) |
| Input
impedance |
1 MΩ ± 0.5%, 100pF or
less |
| Input format |
Single ended |
| Input
coupling |
DC or AC (-3 dB 0.55 Hz
or less) |
| Current
supply for sensor |
2 mA/4 mA |
| Sound filter |
Sound filter A, B, C
weighting (provided as standard), conforming to IEC60651-1979
type1, ANSI S1.4-1983 TYPE1, JIS 1505-1988TYPE1 |
| Input
voltage range |
-40 to 20 dB Vrms (in 10
dB steps, 7 ranges) |
| Absolute
maximum input voltage |
AC 70 Vrms for 1 minutes
(50 Hz) |
| Residual
offset |
-60 dB F.S. or less
(after calibration, 0 dB Vrms range) |
| Frequency
range |
DC to 40 kHz |
| Sampling
frequency |
32 kHz, 44.1 kHz, 48
kHz, 51.2 kHz, 64 kHz, 96 kHz, 102.4 kHz |
| Frequency
accuracy |
±50 ppm or less |
| AD convertor |
24-bit ΔΣ type |
| Dynamic
range |
100 dB or more (at 40
kHz range, 0 dB Vrms range, when analyzing at 2048 points) |
| Harmonic
distortion |
-90 dB or less (1 kHz, 0
dBVr range, when input of 1 Vo-p) |
| Aliasing |
-100 dB or less |
| Amplitude
flatness |
±0.3 dB or less |
| Full scale
accuracy |
±0.1 dB or less (1 kHz
input) |
| Amplitude
linearity |
0.0015 % (with respect
to F.S.) |
| Cross talk
between channels |
-100 dB or less (1 kHz
input) |
| Gain
accuracy between channels |
±0.3 dB or less (DC to
20 kHz) |
| Phase
accuracy between channels |
±0.5° or less (DC to 20
kHz), ±1.0° or less (20 kHz to 40 kHz) |
| External
sample input |
20 kHz/8-ch (FFT length
2048 points or less, when in internal sampling), input connector
: BNC (C02), AC/DC selectable, ±10 V, 0 to 85 kHz (with
out-of-band filter), 0.5 to 1024 P/R, clock dividing function
can be used when the frequency is over 3kHz |
| External
trigger input |
1ch, input connector:BNC
(C02), AC/DC selectable, ±10V, 0 to 85 kHz (with
out-of-band filter) |
| Connector
for input signal monitor |
3.5 φ mini-stereo jack
For ch1/2 and ch3/4: CF-3600A
For ch5/6 and ch-7/8: CF-3800A
1 Vrms (F.S) ±1.0 % with respect to the input voltage range (at
1 kHz, under 1 MΩ loaded.) |
| Panel LED |
Power ON: green, Low
battery: red (It lights up when the voltage of battery for
treatment against instantaneous power failure decreases.)
External trigger: green, external sample: green |
| CE marking |
Applicable |
| Cooling fan |
Not provided (natural
air cooling) |
| Power
requirement |
Approx. 16 VDC, 100 to
240 VAC (AC adapter in use) |
| Internal
battery |
Equipped with lithium
ion secondary battery cell for treatment against instantaneous
power failure. Internal battery charging circuit is provided. |
| Operating
time of internal battery |
Maximum of 30 minutes.
(same as after addition of CF-0364) |
| Operating
temperature/humidity range |
+5 to +40 °C (humidity:
20 to 80 % RH, with no condensation) |
| Storage
temperature/humidity range |
-10 to +55 °C (including
lithium ion secondary battery cell)(humidity: 20 to 80 % RH,
with no condensation) |
| Power
consumption |
CF-3600A:Approx. 70 VA
(100 VAC in use)
CF-3800A:Approx. 100 VA (100 VAC in use) |
| Outer
dimensions |
CF-3600A:410(W)×314(H)×150(D) mm (not including protruded
section)
CF-3800A:410(W)×314(H)×180(D) mm (not including protruded
section) |
| Weight |
CF-3600A:Approx. 9 kg
CF-3800A:Approx. 11.5 kg |
| Accessories |
AC adapter, Power cable
for AC adapter, remote controller (with cable), front panel
protection cover, lithium ion secondary battery cell (treatment
against instantaneous power failure), instruction manual |
Touch panel computer section-outline specifications
| CPU |
AMD Geode LX800 or
equivalent |
| Memory |
256 MB |
| HDD |
40 GB |
| Network |
10 BASE/100 BASE-TX/1000
BASE-T X1 |
| LCD |
15-inch, 1024 x 768 dots
XGA with brightness adjustment |
| Touch panel |
Resistance file method |
| USB I/F |
USB 2.0 (High Speed) ×2 |
| OS |
Microsoft Windows XP
Professional SP2 |
Basic
configurations
|
 |
| ■
|
Main unit of CF-3600A
or CF-3800A and accessories |
| ■ |
Accessories (AC
adapter, battery pack, remote controller, front
panel protection cover, instruction manual) |
| ■ |
DS-0221 FFT Analysis
software |
| ■ |
DS-0222 Tracking
analysis software |
| ■ |
DS-0250 Throughput
disk function/DS-0251 File export function |
|
|
|
 |
| ■ |
Main unit of CF-3600A
or CF-3800A and accessories |
| ■ |
Accessories (AC
adapter, battery pack, remote controller, front
panel protection cover, instruction manual |
| ■ |
DS-0221 FFT Analysis
software |
| ■ |
1/1・1/3 Real-time
octave analysis software |
| ■ |
DS-0250 Throughput
disk function/DS-0251 File export function |
|
|
Option
Optional Hardware
■
CF-0371 Signal output module
| Number of
output channels |
1 |
| Output
connector |
BNC |
| Output
impedance |
50 Ω ± 10 % |
| Output
voltage amplitude |
±10 mV to ±10 V |
| Offset
voltage |
±10 V
However the total value of the voltage amplitude and offset is
±10 V or less. |
| Maximum
output current |
10 mA |
| Frequency
range |
0 to 40 kHz |
| Conversion
rate |
32 kHz, 44.1 kHz, 48
kHz, 51.2 kHz, 102.4 kHz |
| D/A
converter |
20-bit ΔΣ type |
| Signal types |
Sine, swept sine, pseudo
random, random, impulse, time record data |
| THD and
spurious |
Sine wave (1 kHz, 1
Vo-p) -75 dB or less
Sine wave (10 kHz, 1 Vo-p) -55 dB (typical value)
Sine wave (40 kHz, 1 Vo-p) 50 dB (typical value) |
| Applicable
FFT analysis length |
128, 256, 512, 1024,
2048, 4096 |
| Zoom
analysis |
Applicable |
| Voltage
amplitude accuracy |
±0.5 dB or less |
| Frequency
accuracy |
±50 ppm or less |
| Digital
filter (Smoothing filter) |
10th order ellipse (base
band), 6th order ellipse (zoom) |
| Digital
filter(Octave band filter) |
6th order Butterworth
(1/1, 1/3 octave) |
| Pink filter |
Analog filter-3 dB/OCT.
± 1.0 dB (prescribed at 20Hz to 20kHz) |
| Burst
function |
Provided
(Continuous/single-shot: 1ms to 32 s/Number of burst cycles: 1
to 32767) |
| Taper
function |
Provided (1 ms to 32 s),
Invalid when the burst function is ON. |
■
CF-0364 4-ch Expansion unit (option)
CF-0364 is 4-ch optional expansion
unit in order to expand the channels of CF-3600A to 8-ch.
The general specifications after adding CF-0364 to CF-3600A are same as
CF-3800A.
| The number
of input channels |
4 |
| FFT
real-time rate (after expansion) |
3.5 φ mini-stereo jack x
2 (for ch5/6, ch7/8) |
| Power
consumption (after expansion) |
Approx.100 VA (100 VAC
in use) |
| Outer
dimensions (after expansion) |
410(W)×314(H)×180(D) mm
(not including protruded section) |
| Weight
(after expansion) |
Approx. 11.5 kg |
■
CC-0036A Hard carrying case
Optional Software
which can be pre-installed
*The underlined products are linked to the each
page of product information.
*Windows® XP, Microsoft® are registered trademarks of
Microsoft Corporation in the United States and other countries.
Comparative table of
CF-3600 and CF-3600A
| |
CF-3600 |
CF-3600A |
|
HDD capacity |
30 GB |
40 GB |
|
Dynamic range |
90 dB |
100 dB |
|
Power requirement |
19 VDC |
16 VDC |
|
Maximum operating time of internal battery |
20 minutes |
30 minutes |
Revised: 2011/04/28
|
