Automatic measurement control system
Connect to Development of Future Mobility
Concept
In the mobility field, a wide variety of measures are required, such as CASE and achieving carbon neutrality, and there is a need for bench systems that can flexibly respond to changes in customers' testing needs.

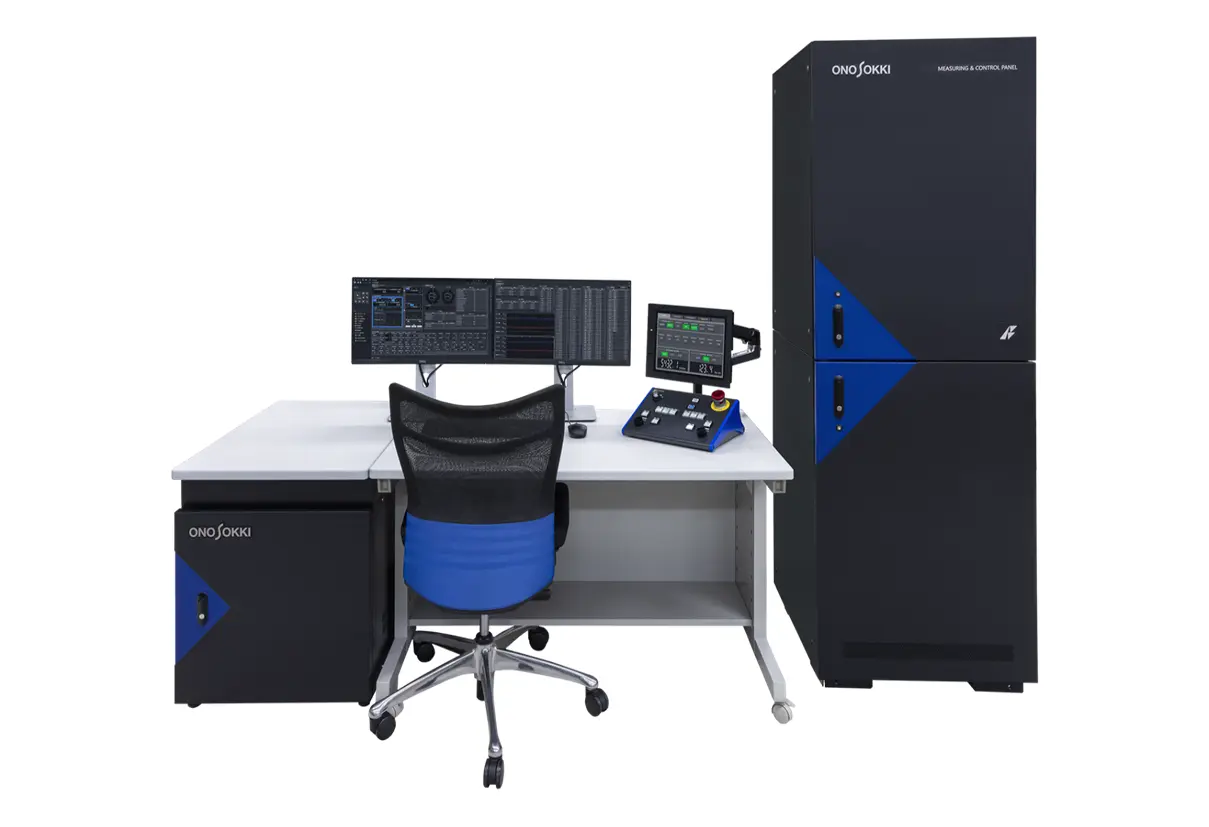

The FAMS-R6 is an automatic measurement control system that has the functions necessary for bench testing, such as controlling various equipment, real time measurement, data collection, alarm monitoring, and automatic operation, and can be connected to various measurement instruments and simulation tools.
The FAMS-R6 suppots automobile development with "Connect" technology.
Features
Following the existing FAMS-R5, it has evolved into a platform that can be connected to various measurement instruments and simulation tools, and can transfer measured values and large amounts of data.
- "Measure" with multi-channel, high speed communication
- "Connect" with various simulation tools and external devices
- "Support" customers with the remote tools
Bench lineup
We provide bench systems that can be used for a variety of verifications, including unit verification, system verification, and vehicle verification.
For chassis dynamometers, to be available in 2024.
Features of software
Redesigned user interface
The GUI has been designed in accordance with the Guidelines for older persons and persons with disabilities, and the UI has been redesigned with visibility and operability including displays devices and switches.
In addition, functions such as trend graph, alarm setting, etc. have been improved.
Strengthened system linkage by FAMS-API function
The FAMS-API function has strengthened linkage with external devices and tools.
- From the app created by customers, test operations can be performed and measurement data can be obtained.
- By linking with the app, it is possible to improve the efficiency of testing operations including post-processing.
Features of control panel
Improved operatability and flexibity of installation layout
The control panel has a front maintenance style.
Since it can be installed along the wall of the measurement room, the operating efficiency has been improved.
Achieved space-saving design and high function expandability
Adopts multiple CPUs and integrates the units necessary for control and measurement processing into one unit.
By minimizing the number of parts added in conjunction with additional functions, we have created the control panel that is both space-saving and highly expandable.
