Applications Torque Meter
Torque Meter Quality inspection

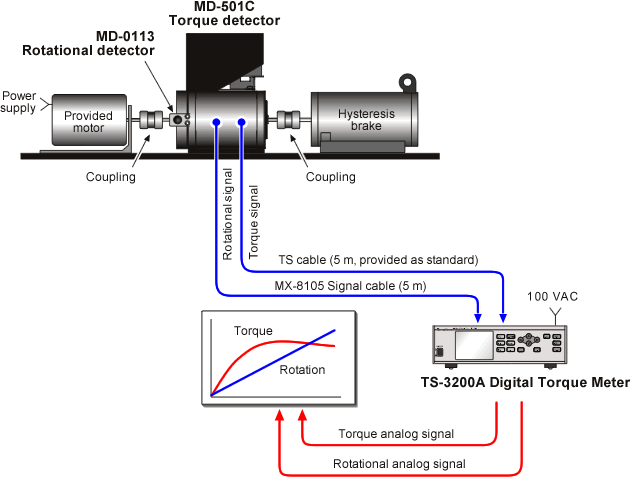

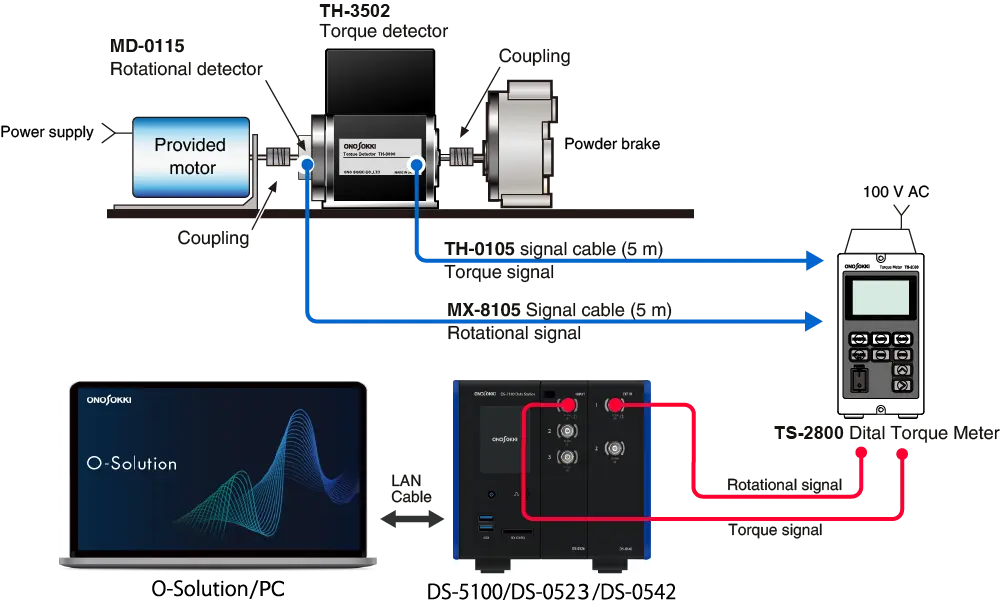

A-2-4 Evaluating torque characteristic of precision miniature motor
- This example shows how to measure and evaluate torque characteristic of precision miniature motor used in various industrial fields; AV equipments such as a camcorder, DVD player and OA equipments including a printer, fax, or HDD, and electric installation for automobile.The lineup of the SS series torque detectors consists of 13 models from 0.2N·m to 2000N·m. Suitable model can be selected depending on the torque capacitance of a measurement object.
- The lineup of the TH-3000 series torque detectors consists of 12 models from 0.05 N·m to 2 N·m. Suitable model can be selected depending on the torque capacitance of a measurement object.
- Data storage of measurement results and setup of the TS-3200A can be performed through a PC by installing the TS-0325 RS-232C interface option to the TS-3200A Digital Torque Meter.
Product list
| Model | Product name | Remarks | Qty | |||
|---|---|---|---|---|---|---|
| 1 | TH-3502 | Torque detector | 1 | |||
| 2 | MD-0115 | Rotational detector | number of pulses:120 P/R, output:square wave (0/+5 V) | 1 | ||
| 3 | MX-8105 | Signal cable (5 m) | 1 | |||
| 4 | TS-2800 | Digital Torque Meter | 1 | |||
| 5 | O-Solution DS-5000 | 3ch 40 kHz Tracking set | DS-5100 Main Unit DS-0523 3ch 40 kHz Input Unit OS-5100 Platform OS-0522 Tracking Function OS-0523 Octave Analysis Function OS-0512 Hardware Connecting Function |
1 | ||
| 6 | MX-101 | Signal cable (1.5 m) | 2 | |||
| 7 | TH-0105 | Torque signal cable (5 m) | 1 | |||
|
||||||
