Non-contact Displacement Meter

VT-5200 series
VT-5700 series

Electrostatic capacitance-type

Example of the measurement
Specifications

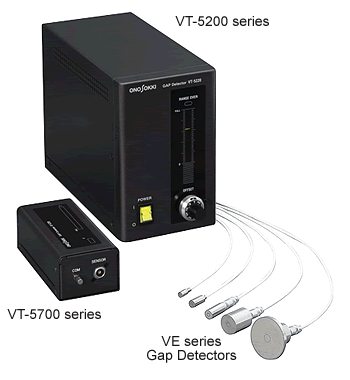

By combining the latest developed VE series Electrostatic capacitance-type Gap detector, the Electrostatic capacitance-type Non-contact Displacement Meter VT series can measure the gap/displacement between a measurement target (conductors such as iron, aluminum, copper, and various metal plating) and a sensor with high accuracy without contact.
The gap/displacement between a bottom surface of the VE series sensor and the surface of a target is measured using each of electrostatic capacitance.
There are 4 models of lineup. VT-5210, VT-5710 support 4 kHz of response frequency, VT-5220, VT-5720 support 10 kHz of response frequency. The VT-5700 series is a compact and easy to install.
It is efficient to measure and control shaft deviation and plane deflection of rotating machines such as turbines, electric motors, compressors, and flatness and thickness of conductors such as silicon wafers and hard disks.
Since it is non-contact detection, the rotating or vibrating target can be measured without load.

* VT-5220 has been discontinued.

Features

Wide measurement range from 20μm up to 8 mm
High accuracy: 0.2 %FS (in combination with sensor)
High-speed response to dynamic displacement changes (VT-5220- Max. 10 kHz of response frequency)
Non-contact measurement can be performed without affecting the target.
All conductors can be measured without being affected by color, roughness, reflectance, external light, etc.

Example of the measurement

Measurement of shaft vibrations

Measurement of plane vibrations

Measurement of plane vibrations

Measurement of deflection/flatness

Measurement of deflection/flatness

Specifications

VT-5200 Series Non-contact Displacement Meter

Model name	VT-5210	VT-5220 (discontinued)
Output	0 to 5 V/0 to 100% F.S.
Linearity	±0.2% F.S./10% to 100% F.S.	±0.25% F.S./10% to 100% F.S.
Temperature characteristic	Within ±0.05% F.S/°C
Response frequency	DC to 4 kHz	DC to 10 kHz
Monitor display	20-segment LED Analog output offfset function
Power requirement	100 to 240 VAC, 10 VA
External dimensions	95 (W) x 150 (H) x 195 (D) mm
Weight	Approx. 2 kg

VT-5700 Series Non-contact Displacement Meter

Model name	VT-5710	VT-5720
Output	0 to 5 V/0 to 100% F.S.
Linearity	±0.2% F.S./10% to 100% F.S.	±0.25% F.S./10% to 100% F.S.
Temperature characteristic	Within ±0.05% F.S/°C
Response frequency	DC to 4 kHz	DC to 10 kHz
Monitor display	10-segment LED
Power requirement	±15 VDC, 100 mA
External dimensions	42 (W) x 56 (H) x 120 (D) mm
Weight	Approx. 0.6 kg

Note: F.S. refers to the sensor’s maximum measurement range.

VE Series electrostatic capacitance-type gap detectors

Standard type

Model name	VE-5010	VE-1020	VE-1520	VE-3020	VE-8020
Measurement range (μm) *1	0 to 500	0 to 1000	0 to 1500	0 to 3000	0 to 8000
Minimum diameter of target (mm) *2	φ6	φ8	φ10	φ20	φ40
Cable length (m)	1.5 (attached cable as standard)		1.5 (VL-1520 as sold separately)
Temperature function	k₁ = 1.7 x 10^-5, k₂ = 3.4 x 10^-5
Operating temperature range *3	0 to +80°C

Clamp-shape type (common to Φ10mm)

Model name	VE-2011	VE-5011	VE-1021	VE-3021 (discontinued)	VE-8021
Measurement range (μm) *1	20 to 200	50 to 500	1000 to 1000	3000 to 3000	8000 to 8000
Outer dimensionst (mm) *2	φ3	φ6	φ8	φ20	φ40
Cable length (m)	1.5 (VL-1520/1521 as sold separately)
Temperature function	k₁ = 1.7 x 10^-5, k₂ = 3.4 x 10^-5
Operating temperature range *3	0 to +80°C

Note:
*1: The measurement range refers to the maximum gap between the surface of the sensor tip and the object under measurement.
*2: The surface measurement area of the object under measurement must be larger than the external diameter of the sensor.
*3: The operating temperature range is the temperature range in which the sensor can operate, not the operating range for which accuracy is
guaranteed. The operating range for which accuracy is guaranteed at 23±2°C. The temperature characteristics of the VE series are shown in
the formula below.

Signal cables sold separately

VL-1520 (Straight connector at both ends)
VL-1521 (L-shaped connector Straight connector)
