Overview
•Adopted FAMS-R5 system for motorcycle chassis dynamometer
•Gas emission test, durability test, performance test, and environmental test are applicable to various vehicles (motorcycle, tricycle,ATV).
•Newly designed measurement unit in a test room makes measurement easier.
•Reduction of initial cost, space saving, and less maintenance items by lineup of electric inertia
type chassis dynamometer that can be used for small to large vehicles.
•Components necessary for emission test are included, such as front wheel holding unit, engine cooling fan, drivers display.
•Application software necessary for emission test is installed, such as road resistance setting software,
drivers aid,gas emission data processing software, rear axle output data processing software.Measurement system

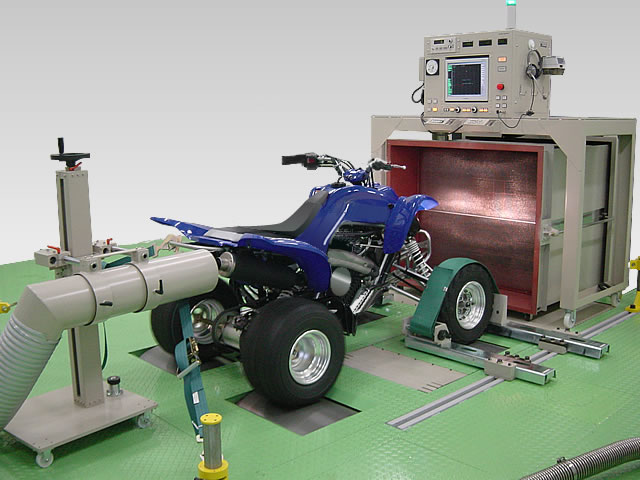

Supports ATV (2WD/4WD).

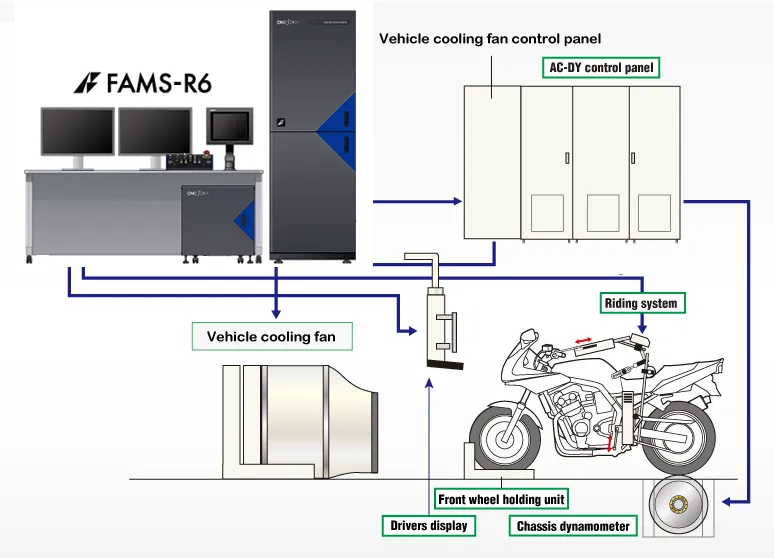

System configuration
Example of specification (Lineup of whole electric inertia type chassis dynamometer)
Dynamo capacity (kW) |
Base speed km/h |
Max. speed km/h |
Max. acceleration/deceleration speed m/s2 |
Equivalent inertia compensation range kg |
Holding inertia kg |
Roller diameter mm |
Roller width mm |
7.5 |
75 |
150 |
4.9 |
80 to 260 |
90 |
530.5 |
250 |
37 |
150 |
250 |
4.9 |
80 to 430 |
140 |
530.5 |
300 |
9.8 |
100 to 510 |
170 |
1,061 |
||||
75 |
150 |
300 |
15.0 |
100 to 510 |
170 |
1,061 |
300/1,500 |
130 |
150 |
300 |
15.0 |
150 to 750 |
250 |
1,061 |
300/1,500 |
*Please contact us for other types such as machinery inertia etc.
Related products : Chassis dynamometer for bicycle
•Chassis dynamometer for electric assist bicycle
•Suitable for evaluation of assistance performance by using in combination with a drive unit connected to the pedal shaft section.
•Manual measurement test can be selected in which driving and measurement can be arbitrarily performed.
•Automatic drving from start to stop is available using human-pedaling function in the pedal driving system.
•Conforms to the measurement test for the ratio of power assisting system and the travel distance per charge under
JIS D9115:2018 electric power assisted bicycle.
Peripherals

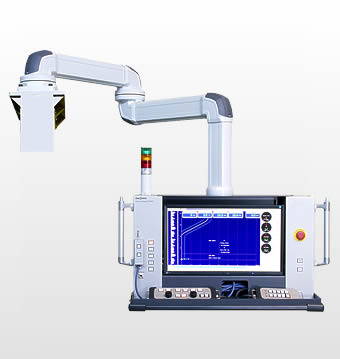

•With measurement screen,
drivers aid screen switching function
•Displaying each measurement data on the measurement
screen helps driving operation so that a driver
can check the driving status.
•Integrating the actuator allows easy installation to the
test vehicle.
•By adopting the predictive control method,
the accuracy of on-board simulation of actual running is
improved compared to conventional PID control.
•Dynamo torque calibration can be done automatically
with remote control
•Vehicle speed tracking type engine cooling device
•Types used: Centrifugal fan, axial fan
•Wheel base adjustment is interlocked with the front
wheel holding unit.
Measurement data
Display example of Vehicle speed/ Vehicle speed command in Mode operation (OS-2000 series)
Emission test supported
Complies with gas emission test method in each country.
U.S.A. : EPA
Europe : WMTC
China : GB
India : BS
Japan : TRIAS
Related products
| Model name | Product name | Remarks | |
|---|---|---|---|
| 1 | FAMS-R5 | Flexible Automatic Measuring System-Release 5 | |
| 2 | ExFlower | Bench test support application for FAMS-R5 | |
| 3 | DM-1500 | Drivers aid | |
| 4 | CT-6700 | Engine tachometer | |
| 5 | IP-3100 | Ignition pulse detector | |
| 6 | IP-292 | Ignition pulse detector | |
| 7 | IP-296 | Ignition pulse detector | |
| 8 | MP-981 | Tachometer | |
| 9 | FP-4135 | On-board volumetric flow detector | |
| 10 | DF-2200 | On-board flow meter | |
| 11 | LA-7000 series | Sound level meter | |
| 12 | DS-3280 | Combustion analysis system | |
| 13 | TQ-2000 | High stiffness torque detector | |
| 14 | TQ-5300 | Torque detector | |
| 15 | SS series | Torque detector | |
| 16 | TC series | Throttle controller | |
| 17 | ORANGE | ECU map optimization support tool |
|
| 18 | OS-2000 | Transient analysis tool for vehicle test | |
| 19 | OC-1300 | Graph creation tool |
