Fuel Flow Measurement System Configuration



FP series Flow Detector

* The flow meter of the FP-2140S: FM-2500A+DF-0400A only




Types A and B: This is the standard system configuration when one detector is used.



Type C: A detector is installed at both the supply and return sides, and the difference is used to measure the fuel consumption. Separate standalone displays can also be used for the supply and return sides.


Type D: Two detectors are connected in parallel, and their total fuel consumption amount measured. A separate standalone display can also be used for each detector if required.



FX series Flow Detector


FZ series Flow Detector


Types A and B: This is the standard system configuration when one detector is used.

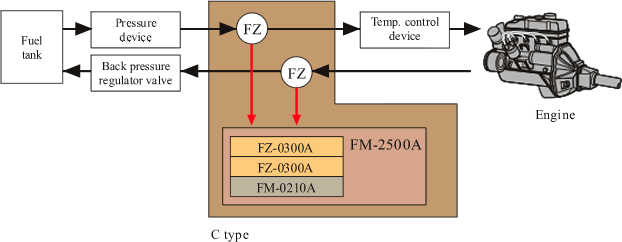

Type C: A detector is installed at both the supply and return sides,

and the difference is used to measure the fuel consumption. Separate standalone displays can also be used for the supply and return sides.

Type D: Two detectors are connected in parallel, and their total fuel consumption amount measured.
A separate standalone display can also be used for each detector if required.
