Rpm & Speed Rotational detection from magnetic flux leakage
B-1-3 Simultaneous measurement of rotating speed and direction of a fuel pump
- This example shows how to make rotating speed measurement and rotation direction determination of a finished fuel pump simultaneously, which is widely used such as in a vehicle.
Since the rotating shaft is not come out, it is difficult to make direct measurement by attaching a sensor to the rotating shaft.

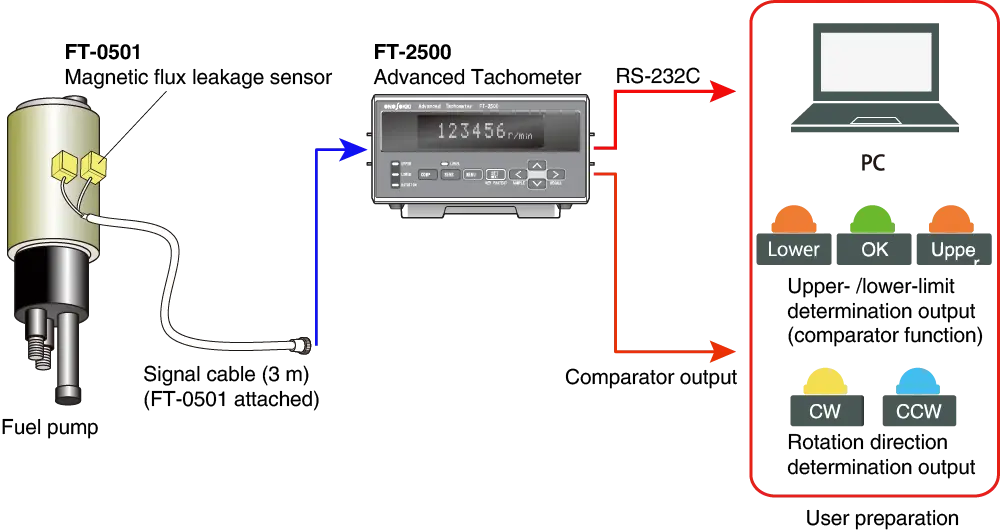

The rotating speed and direction of the motor built in a fuel pump can be measured by the FT-2500 advanced tachometer with the FT-0501 magnetic flux leakage sensor. The FT-0501 attached to the fuel pump detects the magnetic flux leakage, and the FT-2500 performs frequency calculation of the magnetic flux changing periodically. - Upper- / lower-limit comparator output function is provided as standard to make OK, LOWER, or UPPER decision in production line use.
- Enable to control data management by RS-232C
Product list
| Model | Product name | Remarks | Qty | |||
|---|---|---|---|---|---|---|
| 1 | FT-2500 | Advanced Tachometer | 1 | |||
| 2 | FT-0501 | Magnetic flux leakage sensor | 1 | |||
|
||||||
