Rpm & Speed Application

Rpm & Speed Measurement in specific environment

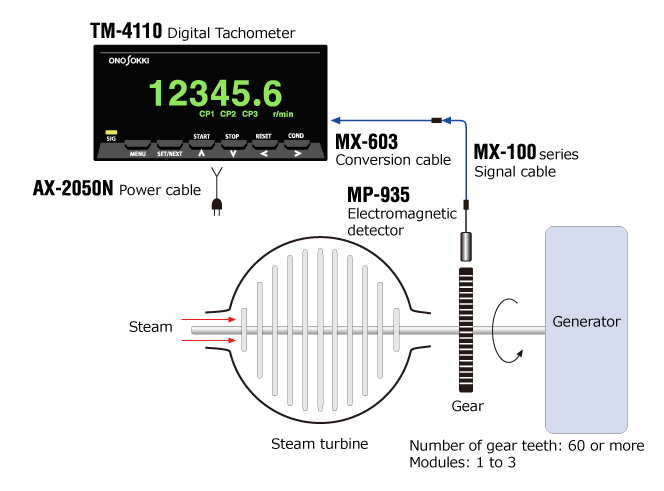

rotation A-3-1 Non-contact measurement of rotational speed using oil and heat proof detector




  • Measurement range: approx. 300 r/min to 35000 r/min
  • Operating temperature range : -10 to +150°C
  • Please prepare gear teeth for rotational detection and its attachment.



  Model Product name
1 TM-4110 Digital Tachometer
2 MP-935 Electromagnetic Detector
3 MX-100 series Signal cable ( 1.5 meter to 20 meter ) *
4 MX-603 Conversion cable
6 AX-2050N Power cable (3m)

 * Maximum length of cable can be used depends on the environment of usage.
