TS-2600 Voltage output

1. Torque voltage output

The analog voltage of torque is outputted from the TRQ OUT connector on the rear panel. The output voltage of full scale is ±10 V regardless of the RANGE of the torque detector.



Output voltage

±10 V

Output connector

C02 type (BNC) connector

Appropriate load

10 kΩ or more

Time constant

63 ms/500 ms changeover



63 ms is selected when parameter 1 to 2 in the internal setting section is set to ON. At the time of shipment, the parameter is set to OFF (500ms).



How to calibrate the torque voltage output

Calibration is performed while monitoring the display of a digital multimeter (digital voltmeter). Prepare it.

1. Connect the digital voltmeter and TRQ OUT terminal on the rear panel.

2. Change the MEAS/CAL switch to CAL.

3. Adjust the digital voltmeter to display 0 V by rotating the potentiometer of REV ZERO.

4. Press the TRQ ZERO switch until the LED is turned ON. In this step, the full scale value is outputted, so adjust it to display 10 V by rotating the potentiometer of ANALOG ADJ TRQ FULL. The LED is turned OFF as soon as it turned ON.

*ZERO→FULL operation can be repeated by keeping the TRQ ZERO switch pressed until the LED lights up.

5. Changeover the MEAS/CAL switch to MEAS.

6. Start measurement.



2. Rotation voltage output

<Note>

  • Note that, even the input value is within the input frequency range, voltage is output maximum 10 V = 9999 r/min (9999 × 10 r/min). When convert the lower limit of frequency to the rotating speed, 60 P/R is 10 r/min, 120 P/R is 5 r/min and 180 P/R is approx. 3.3 r/min, 300 P/R is 2 r/min, and 360 P/R is approx. 1.8 r/min.



Rotation analog voltage is output from the REV OUT connector on the rear panel. Set the P/R switch in the internal setting section according to the tooth count of the gear for rotation detection. 10 V is output when the indication is 9999.







Rotation voltage output calibration

Connect the digital voltmeter and TRQ OUT terminal on the rear panel.

1. Change the MEAS/CAL switch to CAL.

2. Adjust the digital voltmeter to display 0 V by rotating the potentiometer of REV ZERO.

3. Press the TRQ ZERO switch until the LED is turned ON. In this step, the full scale value is outputted, so adjust it to display 10 V by rotating the potentiometer of ANALOG ADJ TRQ FULL.

*ZERO→FULL operation can be repeated by keeping the TRQ ZERO switch pressed until the LED lights up.

4. Changeover the MEAS/CAL switch to MEAS.

5. Start measurement.

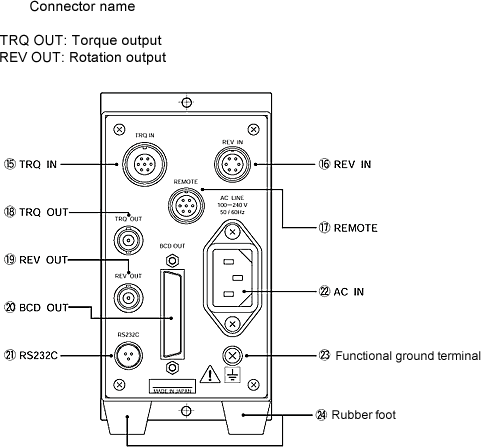

Voltage output terminal (Rear panel)



Revised:2002/03/15
