Setup example for the TM-3100 series 4 "Rotation measurement setup procedure with the MP-9100 detector."

A notice for operating instructions


The main menu of the setup mode has the following items. (INPUT → MEASURE → FUNCTION → DISPLAY → OUTPUT → OTHER)

The flow chart below shows the setting of each item on the menu. Descriptions in red rectangles represent the choices you should make, and the ones in blue rectangles represent the setup values and/or explanations. At the item that does not have a red rectangle, press SET/NEXT switch and go to next. Follow the arrows in the flow chart to perform switch operations. Please refer to "Panel switches and the basic operations" below for the switch operations.

Measurement condition

Detector MP-9100
Detection gear 120 P/R
Decimal place and display unit ○○○○ r/min
BCD output Continuous update output
Analog output 0 to 10V/0 to any value r/min
Comparator User setup







Example of the TM-3100 series rear panel




Wiring procedure


Cautions



For EMC compatibility, please download the "TM-3100 series installation manual" and follow the instruction. Please store the TM-3100 series into the metal panel, use the line filter and surge killer for power wiring and be sure to use the shielded cable as the signal cable.



The component and wiring diagram for EMC compatibility





Panel switches and the basic operations





• When you press the MENU switch in the measurement mode, you can go to the setup mode.

• When you press the MENU switch for less than 2 seconds, you can go back to the preceding item.

• When you press and hold the MENU switch, you can go to the measurement mode (where a measured value is displayed) wherever you are.


Setup


1. INPUT (the input unit setup)

You can setup the installation of the input signal with (INPUT). Setup instruction is as follows.

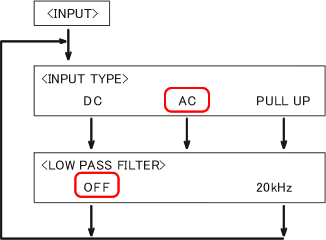

INPUT TYPE AC
LOW PASS FILTER OFF



After the setup, press <SET/NEXT> button.








2. MEASURE (the measurement function setup)

You can setup the measurement mode, measurement object and their conditions with (MEASURE)

. When the numbers of detection gear are 120, the instruction is as follows.



MEASURE MODE NORMAL
MAIN OBJECT ROTATION
ROTATION UNIT r/min
PULSE 120 (number of the detection gear)
FACTOR 1.00000 × 10E+0






3. FUNCTION (the display method and measurement start/stop setup)

You can setup the display method and measurement start/stop with (FUNCTION). Setup instruction is as follows



AUTO ZERO TIME OFF
MOVING AVERAGE OFF






4. DISPLAY (the screen display setup)

You can setup the number of the display digits and display update with

. Setup instruction is as follows.



DISPLAY 1 LINE
D.P. POSITION OFF
DIGIT FIXED TO 0 OFF
DISPLAY UPDATE 1.0s
BRIGHTNESS MID





5. OUTPUT (the BCD, COMP or ANALOG output setup)

You can setup the BCD output, comparator output and analog output with (OUTPUT). Setup instruction is as follows.
BCD OUTPUT MAIN (displayed value)
BCD MODE CONTINUE (continuous update)
COMP MODE UPPER LOWER
(setup the selected measurement value of each COMP1, 2, 3.
     UPPER : measurement value≥selected value
     LOWER : measurement value<selected value)
COMP UPPER (LOWER) Setup the selected measurement value of each COMP1, 2, 3.
ANALOG OUTPUT MODE VOLTAGE
ANALOG VOLTAGE RANGE 0 to 10 V
ANALOG ZERO 000000
ANALOG FULL Setup the selected displayed value which corresponds to 10 V.
ANALOG UPDATE 10 ms
(If the signal is slow due to the period calculation, the voltage is gradually changes.)





6. OTHER (saving the panel condition setup)

You can setup the save/readout of the setup condition, the RS-232C and the list of the option with

. The setup value is saved in the backup memory, but saved in the COND1 as well just in case.




Saving the setup value


1. Backup memory

The setup conditions of the main menu are saved in the backup memory. The setup conditions in the backup memory are readout automatically after turn the power on.

2. CLEAR

Reset the setup conditions in the backup memory into the initial setting (when shipping).

3. CONDITION

Enable to save the setup condition in the backup memory into the COND1 and readout to the backup memory with LOAD operation.



7. Back to the measurement mode

Press the (MENU) button for a while and back to the measurement screen to start the measurement.
