■Line count
Specifies the bandwidth (line count) when the trace order is selected as a center.
■Peak search
Operates the tracking analysis with the peak value within the selected line count when the trace order is set as a center.
■Order band
Operates tracking analysis with the partial overall value within the selected line count when the trace order is set as a center, The concrete meaning and relation example of the setting is as follows.
Guideline of use
1. Constant ratio order tracking
| When it is not a high-speed sweep. | Peak search OFF |
Order band OFF |
|
| When it is a high-speed sweep and order component is line spectrum. | Peak search ON |
Order band ON |
Line count: 3 or more |
| When it is a high-speed sweep and order component is not actual line spectrum. | Peak search OFF |
Order band ON |
Line count: Appropriate value |
2. Constant width order tracking
| Peak search ON |
Order band ON |
Line count: Approx. 3 to 7 Set slightly large line number when component is high order. |

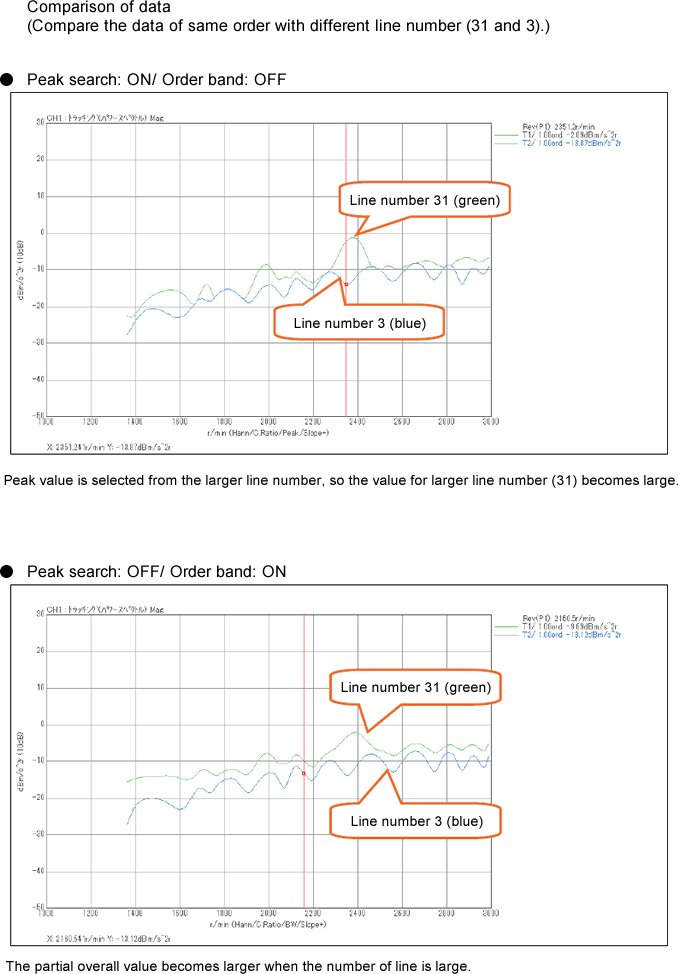

Peak search/ Order band (Example: When line count is 5)
|
|
|
|
|
Revised:2016.03.31
