Torque Detector

MD Series

Micro Capacity Type

Features
Specifications
General Specifications

The MD series torque detector is designed to measure the torque output from compact & precision type motors used in the electric & electronics industry, the automotive industries and so on, featuring outstanding low inertia and low starting torque. With the phase differential system, it can realize low capacity torque measurement as small as 0.001mNm.

Features

High accurate detection of micro capacity torque (mN·m)
Focused on measurement: Low moment of inertia and small starting torque
Wide measurement range: From stationary condition (0 r/min) to high rotation speed can be measured with one unit.
Applicable to new rotation detector (MD-0110 series option)

Specifications

Model	Rated torque	Resolution	Rated rotational speed	Allowable range	Inertia Moment	Spring Constant	Weight
Model	mNm	mNm	r/min	r/min	kgm²	Nm/rad	kg
MD-201C	2	0.001	10,000	0 to 10,000	1.9 × 10^-7	8.24 x 10^-2	1.5
MD-501C	5	0.001	10,000	0 to 20,000	1.9 × 10^-7	2.06 x 10^-1	1.5
MD-102C	10	0.01	10,000	0 to 20,000	1.9 × 10^-7	4.12 x 10^-1	1.5
MD-202C	20	0.01	10,000	0 to 20,000	1.9 × 10^-7	8.24 x 10^-1	1.5

* Revolution speed range can be changed up to the allowable range.

* The MD series torque detectors below are replaced by the following TH-3000 series.

MD series		TH-3000 series
MD-502C	→	TH-3502(H)
MD-103C		TH-3103(H)
MD-203C		TH-3203(H)
MD-503C		TH-3503(H)
MD-104C		TH-3104(H)
MD-204C		TH-3204(H)

General Specifications (common among models)

Measurement accuracy

±0.2 % / F.S.(when N-0 correction combined with the TS-2800/3200A)

Temperature effect

+0.03 % /F.S. / °C

Applicable detector

MD-0110 series(option)

Operating temperature range

0 to+50 °C

Storage temperature range

−20 °C to +60 °C

Operating humidity range

85 % or less

Registance to vibration

50 m/s² or less

Connection method

Cable side connector TRC116-12A10-7M10.5

Power requirement

AC 100 V 50/60 Hz, 10 VA

Accessory

Power cable(2.4 m), torque signal cable(5 m)

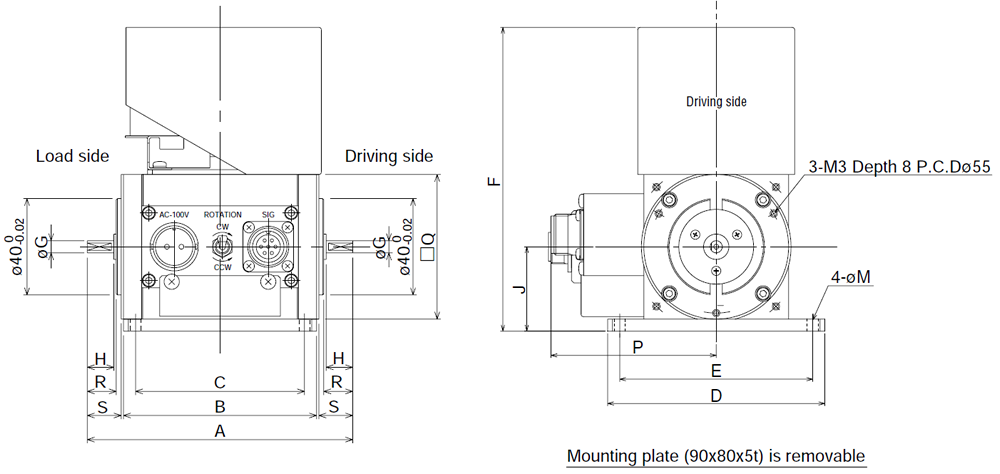

Dimension

MDseris Dimension

model	A	B	C	D	E	F	φG	H	J^±0.5	L	φM	P	Q	S
MD-201C、MD-501C MD-102C、MD-202C	110	80	70	90	80	126	3⁰_-0.01	11	35	5	4.5	70	60	14

Option

·Rotation detector MD-0110 series (120 P/R) for MD type
·MX-8105 cable for MD type
·MD-0004 external control of rotation derection
< ↑ The rotation direction of the motor with a detector can be switched externally. Only wiring, not including selection switch.>
