Applications Torque Meter

Torque Meter          Endurance test

A-3-1       Endurance test of gear teeth

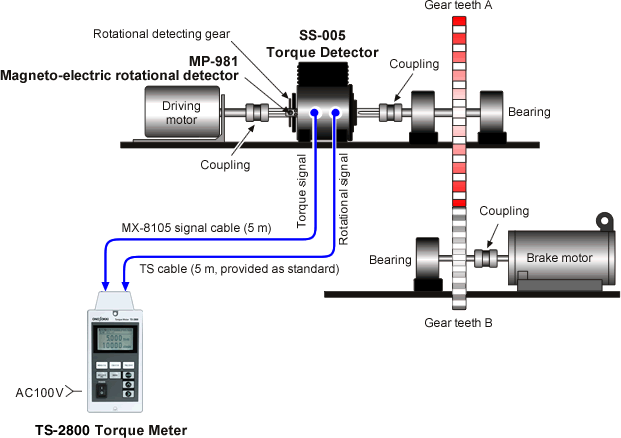

  • This example shows how to perform an endurance test of rotating measurement object such as gear, rubber belt or chain for a long time while being applied load as same as real operating status. This result is helpful in analyzing wear or deformed state of parts.
  • The lineup of the TH-3000 series torque detectors consists of 12 models from 0.05 N·m to 2N·m. Suitable model can be selected depending on the torque capacitance of a measurement object.
  • The TS-2800 displays measurement value with digital, and has external outputs of analog voltage, BCD or RS-232C. Compact-designed and easily built in measurement equipment.

Product list

  Model Product name Remarks Qty
1 TH-3503 Torque detector   1
2 MD-0118 Rotation detector   1
3 MX-8105 Signal cable (5 m)   1
4 TS-2800 Digital Torque Meter   1
5 TH-0105 Torque signal cable (5 m)   1

Remarks
Coupling is user preparation.
