Torque Application

Torque Meter Quality inspection
Torque A-2-1 Inline inspection by using clamping torque

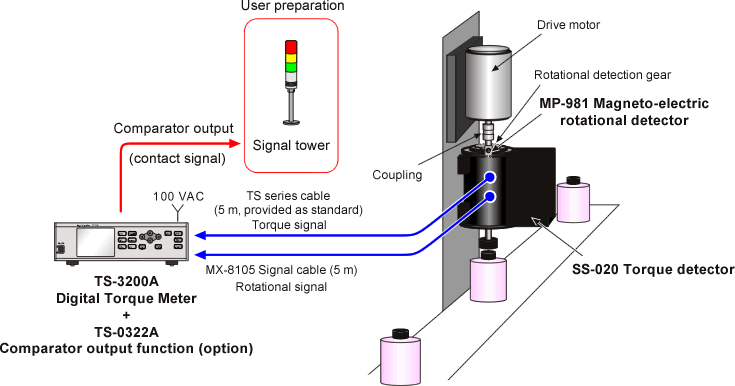

  • This example shows how to measure and monitor tightening force of lids of bottled drinks and cosmetics which are continuously carried on production line by using clamping torque.
  • The lineup of the SS series torque detectors consists of 13 models from 0.2N・m to 2000N・m. You can select suitable model depending on the torque capacitance of measurement object.
  • We recommend setting up an intermediate bearing between a torque detector and the work not to load to radial and thrust directions.
  • The TS-3200A with the optional TS-0322A Comparator output function can output alarm signal or stop a line when the value of clamping torque exceeds the setup value.

n Coupling is user preparation.


  Model Product name
1 SS-020 Torque detector
2 MP-981 Magneto-electric rotational detector
3 MX-8105 Signal cable (5 m)
4 TS-3200A Digital Torque Meter
5 TS-0322A Comparator output function
