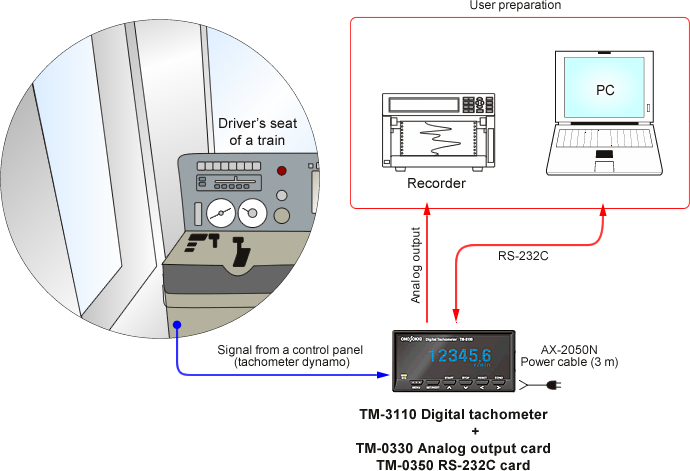

The TM-3100 series digital tachometer can
measure speed of a railroad vehicle by using signals
from tachometer dynamo equipped on the vehicle. Rotation
speed (r/min), kilometers per hour (km/h), kilometers
per minute (km/min) can be displayed on the TM-3100.
-
Adding the TM-0330 analog output card
(option) enables voltage/current output of the measured
values, and recording them to a data logger etc. The
measured data also can be stored to a PC using the
TM-0350 RS-232C card (option).
-
The speed signal from tachometer dynamo has
noise content in many cases. The low pass filter setting of
the TM-3100 and condenser (set between speed signal output
of the tachometer dynamo and the TM-3100) enable noise
reduction and stable measurement.

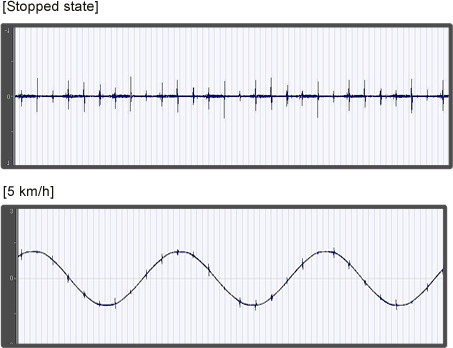

Speed signal data from
tachometer dynamo
(You can see the spike noise has occurred.) |
|
