How to check the rotation direction of a motor attached to the MD series torque detector.

MD series torque detector modified type, which rotation direction can be selected externally, needs to be designed circuit for changing the rotation direction. (See the instruction manual).



The rotation direction of the motor can be checked by visual observation after removing the cover or by value variation of the display unit without removing the cover.





Rotation direction checking method by visual observation



Remove the cover and confirm by the rotation direction of the belt of the motor.



Belt rotation direction (as view form "Drive side" nameplate)



● The shaft is rotating CW (Clockwise), belt rotation direction is CCW … Drive CW
● The shaft is rotating CCW (Counterclockwise), belt rotation direction is CW … Drive CCW



Switch the power circuit to rotate as above.



The cover is fixed with the 2 six-angle bolts from inside, so when you remove the motor cover to check the rotation direction, remove the cover by passing a special L shaped wrench from the open part of the cover.



Caution:

Do not touch the belt when you remove the cover. There is danger being rolled in the machine.



Rotation direction checking method by the value variation of the display unit



1. Set the detector on the rotation display setting of the TS series display unit to "INT" (Please refer to the following setting display of the TS-2700 and TS-3200).

2. Set the detector on the rotation display setting of the TS series display unit to "INT" (Please refer to the following setting display of the TS-2700 and TS-3200).

3. Turn on the power of the torque detector.

4. Check whether the wiring of the rotation direction switch circuit "Drive CW" and "Drive CCW" are correct or not, and turn on the power. If the motor is rotated while the axis of the detector is stopped, the rotation speed of the motor is displayed.

5. Rotate the axis of the torque detector.

6. Display rotation value of the TS series is the value which is added or subtracted the axis rotation speed of the motor rotation speed, so it is possible to make judgments as follows;


When the power terminal is switched to "Drive CW" and the axis of the detector is rotated to CW direction

• When the display value of the rotation speed is larger than the value which is displayed on above 4, the belt is rotating CCW direction. This wiring is correct.

• When the display value of the rotation speed is smaller than the value which is displayed on above 4, the belt is rotating CW direction. This wiring is incorrect.

When the power terminal is switched to "Drive CCW" and the axis of the detector is rotated to CCW direction



• When the display value of the rotation speed is larger than the value which is displayed on above 4, the belt is rotating CW direction. This wiring is correct.



• When the display value of the rotation speed is smaller than the value which is displayed on above 4, the belt is rotating CCW direction. This wiring is incorrect.



7. Return to the correct setting after checking.

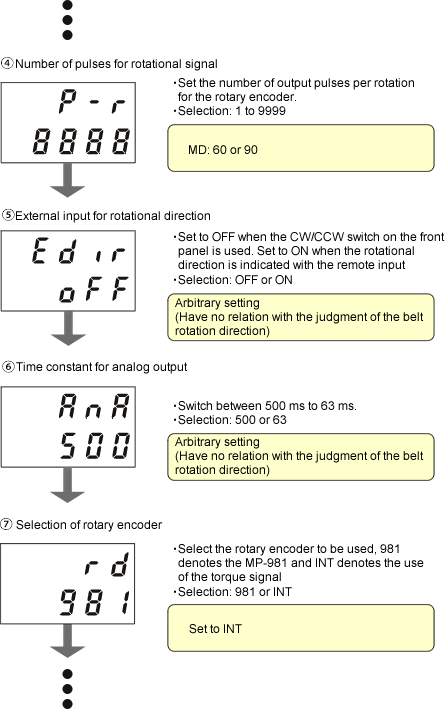

The rotation parameter setting display of the TS-2700



The rotation parameter display of the TS-3200



1. Press [MENU] key.
2. Select "DETECTOR SET" and press [Enter] key.
3. Select "REVO" and press [ENTER] key. Display shows as follows.


For further information of the operation procedure, please refer to the instruction manual.
