Mounting to Fixing device (GS-5050• 5051• 5100• 5101)

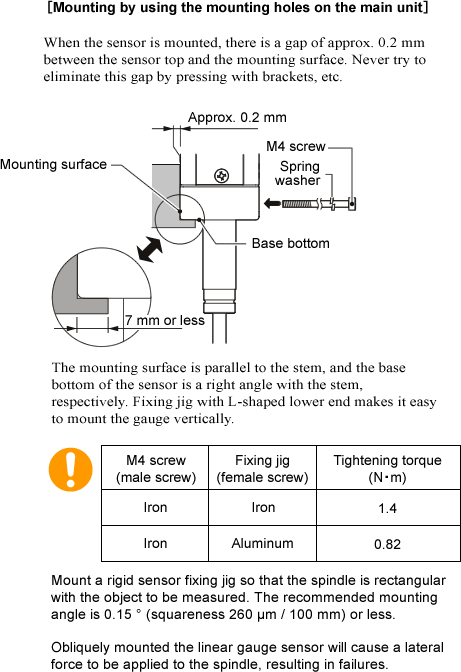

Mount the GS-5050/5051/5100/5101 series Linear Gauge Sensor to the fixing device so that the spindle moving direction coincides with the length (displacement) direction of the object to be measured. Before mounting, please be sure to confirm the mounting location (please refer to the outline dimensional figure).

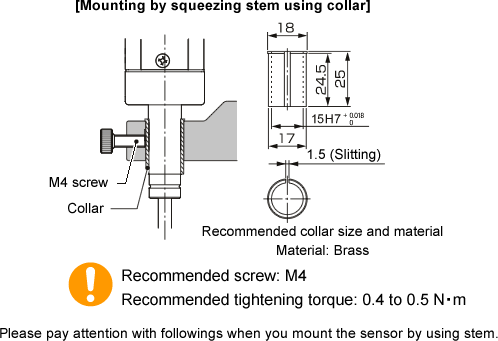

Moreover, there is another mounting method by squeezing stem using collar.














[AA-8560 Mounting metal fixture]

AA8560
