Photo (LPG Mass Flow Rate Detection System)





This system uses the FZ-2100 mass flow detector and detects mass of LPG in high accuracy.

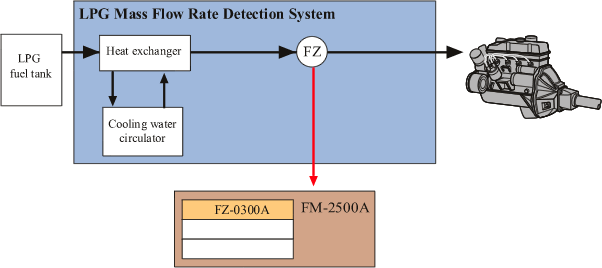

System Configuration

Illustration (System Congiguration of LPG Mass Flow Rate Detection System)

Overview Specification

Measurement parameters Flow rate, temperature or density
Measurement range Mass flow rate 0.2 to 60 kg/h
Density (*1) 0 to 1 g/cm3
Temperature  (*1) -20 to +55 °C
Accuracy Flow rate ±0.1 % of reading at 2 to 60 kg/h
±(0.002kg/h/flow rate)×100 % of reading at 0.2 to 2 kg/h of less
Density ±0.0005 g/cm3
Temperature Pt 100Ω Class B
Pressure loss Approx. 0.1 at 82 kg/h
Operating temperature range (*1) 0 to +40 °C
Weight Approx. 200 kg



(*1): Please consult us more details
