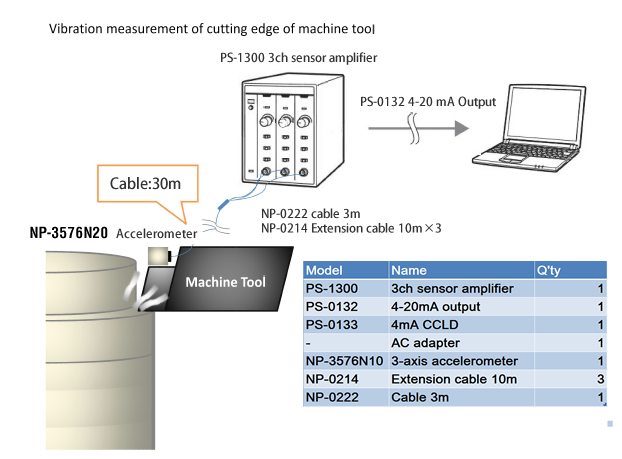

This example shows how to record the vibration of blade tip by using the NP-3576N10.
The signal detected by the NP-3576N10 is input to a PC or a data logger manufactured by other company.
The PS-1300 is used to supply the power to the NP-3576N10 when connecting it to loggers or PCs which do not have CCLD function.
*The PS-0133 CCLD, an option for the PS-1300, is required if the distance between
the sensor and the amplifier is more than 30 m.
*In the above example, the PS-0132 (current output (4 to 20 mA) : option) is installed.
The standard voltage output is not functioned by installing this function.
