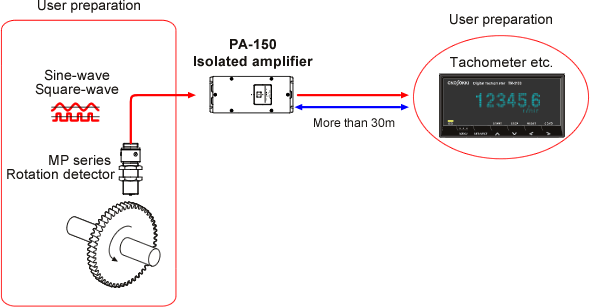

The isolated amplifier PA-150, which isolates and amplifies input-output circuit, is optimal when the minute signal measured by electromagnetic / magnetoelectric type detector needs to be transmitted for a long-distance more than 30m.

Input frequency range:1Hz to 50kHz
Input waveform: sine-wave or square-wave
Operating voltage: sine wave at the range of 1 to 30 Vrms / square wave at the rage of 0.3 to 30 Vp-p
