Analysis and OK/NG determination of noise on the production line

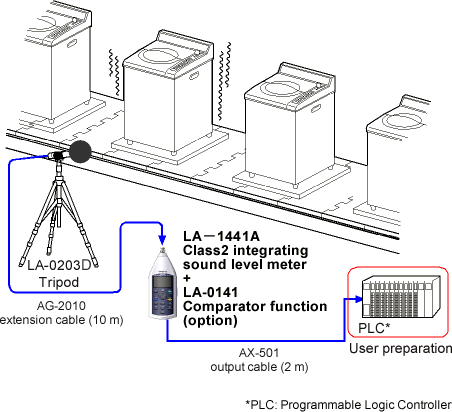

In this example, the sound level meter with comparator function makes determination of the operating noise of the product on the production line which is generated from the products such as OA equipment and home appliance.
LA-1441A integrating sound level meter with LA-0141 comparator output function (option) having frequency range from 20Hz to 8kHz is used. It makes OK/NG determination and outputs the result. (Please contact your nearest distributor or send an e-mail to us overseas@ONO SOKKI.co.jp in details.)
The sound insulating room may be required to prevent the measurement from the influence of ambient noise.

	Model	Product name
1	LA-1441A	Class 2 integrating sound level meter
2	LA-0141	Comparator output function
3	LA-0203D	Tripod
4	AX-501	Output cable (2 m)
5	AG-2010	Extension cable (10 m)
