Encoder Application

Rotary Encoder Measurement of length
Encoder A-1-2 Measuring length at continual cutting line





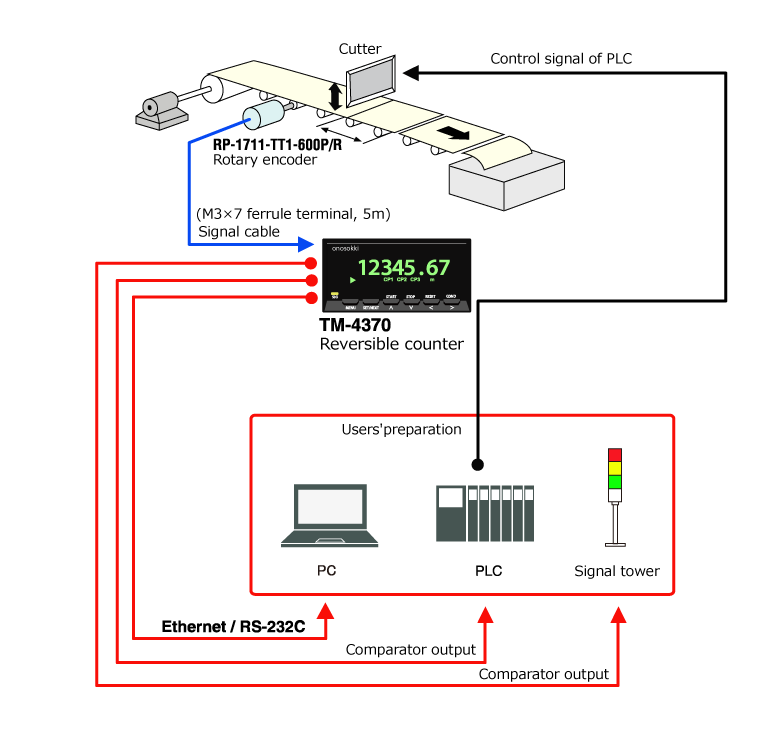

  • This example shows an application of length measurement at a production line. The rotary encoder, RP-1711, is connected to a roller shaft, and measures moving distance of an object.
  • An appropriate displaying unit can be set up on the RV-3150 Reversible Counter using operation functions of the numbers of generated pulses and roller distance.
  • Comparator output makes output of command signal for cutting off to a PLC, and alert to a signal tower.
  • The measured value can be displayed on a large-sized external display unit by BCD output, stored on a PC using RS-232C interface. Moreover, continuous recording can be available on an external recording equipment via analog output.

* PLC: Programmable Logic Controller
