Non-contact
thickness measurement of copper-clad laminated board
dimension E-3-1

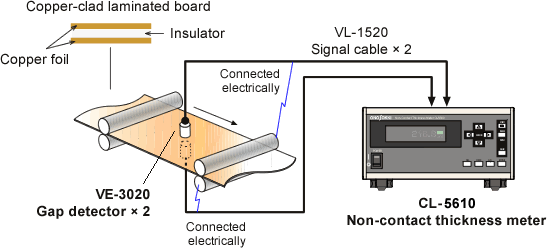

Non-contact thickness measurement of
copper-clad laminated board on a production line
This example shows how to measure the
thickness of copper-clad laminated board on the
production line in non-contact method. The statistic
electricity elimination and measures against the
vertical vibration of board are required for the
measurement. In the above example, VE-3020 with wide
measurement range (gap max. at 3mm) is used.
