Non-contact
thickness measurement of steel plate during running operation
dimension E-2-1
Non-contact thickness measurement of steel
plate during running operation

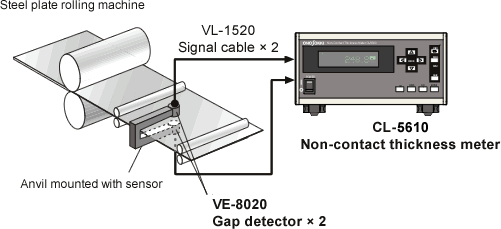

This example shows how to measure the
thickness of steel plate by VE series sensors mounted on
precision rolling machine. You can choose suitable model
of gap detector depending on your required resolution
(1μm or 0.1μm).
In the above example, VE-8020 with wide measurement
range (gap max. at 8mm) is used.
