Non-contact thickness measurement of silicon wafer

dimension E-1-1

Non-contact thickness measurement of electronic material such as silicon wafer with high accuracy

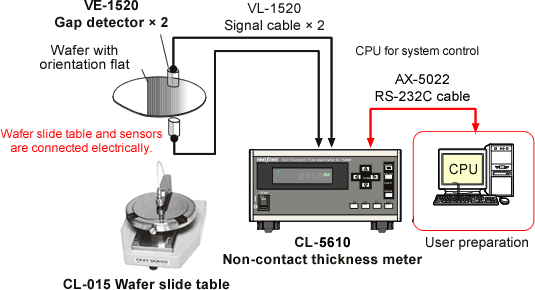

The CL-015 Wafer slide table: This is manual operating slide table in order to perform non-contact thickness measurement of conductive wafers such as silicon wafers. Grooves are provided on the table surface to facilitate use of vacuum adsorption tweezers.

<Measurable wafer’s size>
External diameter: 100mm to 150mm
Thickness: 0.1mm to 1mm (when used with VE-1520)

Please contact your nearest distributors or send an e-mail to us (overseas@ONO SOKKI.co.jp) when you are interested in the slide table for wafer more than 200mm to 300mm diameter.
