Gauge Application

Digital gauge Displacement measurement of metallic parts

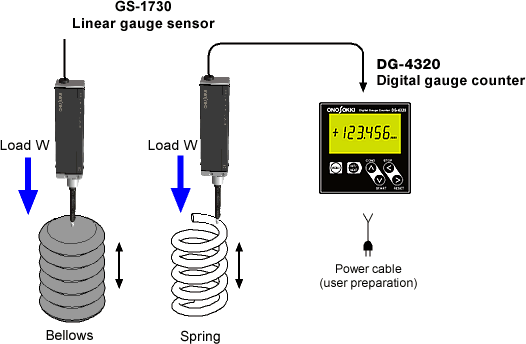

dimension C-3-1 Measuring the compressed displacement of bellows / spring


  • Put the spindle of GS-1730 on bellows or springs, and then reset to zero at that point. The DG-4320 with GS-1730 measures the amount of compressed displacement when a fixed load is applied. (load-displacement measurement)
  • Applications: Screening of plywood or construction mold by measuring load-displacement and so on. The DG-4320 with GS-1730 can make OK / NG decision whether the dimension of processed part is within the range of allowable value or not.
