Measurement of
uneven thickness, mold and board shape
dimension B-2-4
Measuring the thickness of belting

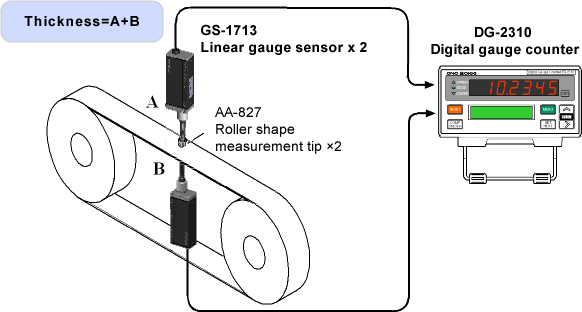

This example shows how to measure the
thickness of belting such as belt of reel feed for
video/audio equipment or paper feed for photocopy
machine. With two linear gauge sensors, thickness of
belting can be measured and indicated by adding each
value of A and B.
