Gauge Application

Digital gauge Dimensional inspection and screening of parts
dimension A-2-5 Measuring the height of rivet/screw

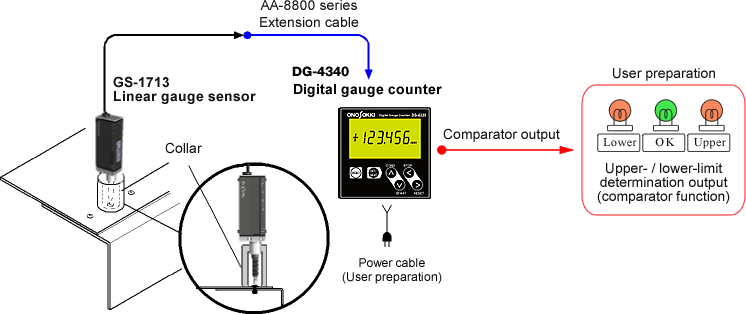

  • This example shows how to measure the height of rivet or screw from mounting surface by means of equipping a collar for checking zero-point with the tip of linear gauge sensor.
  • The DG-4340 can display the measurement result visually. When the measured value against the setting value is either "Lower" or "Upper", the backlight of LCD changes into red color.
  • The collar in above configuration is user-preparation.


  Model Product name
1 GS-1713 Linear gauge sensor
2 DG-4340 Digital gauge counter
3 AA-8800 series Extension cable (5 meter to 30 meter)
