ONO SOKKI - OS-2000 series Time-Series Data Analysis Software FAQ - How to merge multiple data files into a single new file (What is file merge tool?)

OS-2000 software FAQ

How to merge multiple data files into a single new file (What is file merge tool?)

To merge the multiple files, "File merge tool" can be used.

This is a tool to merge necessary items from multiple imported files into a single new file.

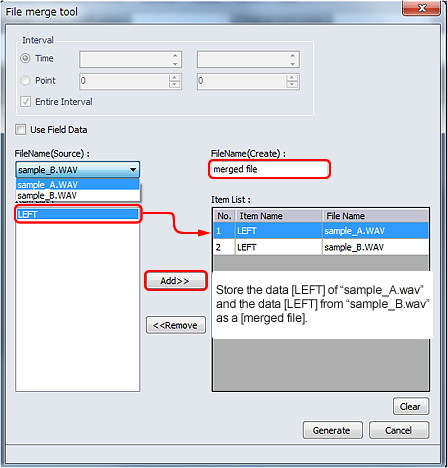

Select [File merge tool] from the [Data Edit] menu.

Select items to be merged and execute it by [Generate] button.

Input a new single file name (only one).

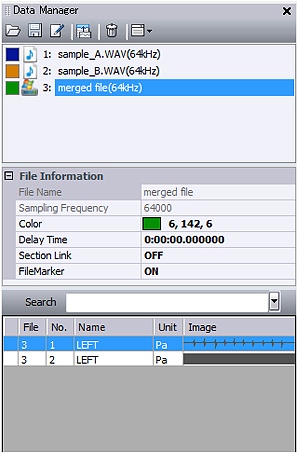

Created merged data file is added.

·Different sampling block file cannot be handled. (Resample the file first.)

·EU value of created new file is not stored because it is 32bit floating point data. (It becomes "1".)

Revised:2015.08.17
